COGIS - WELL SCOUT CARD

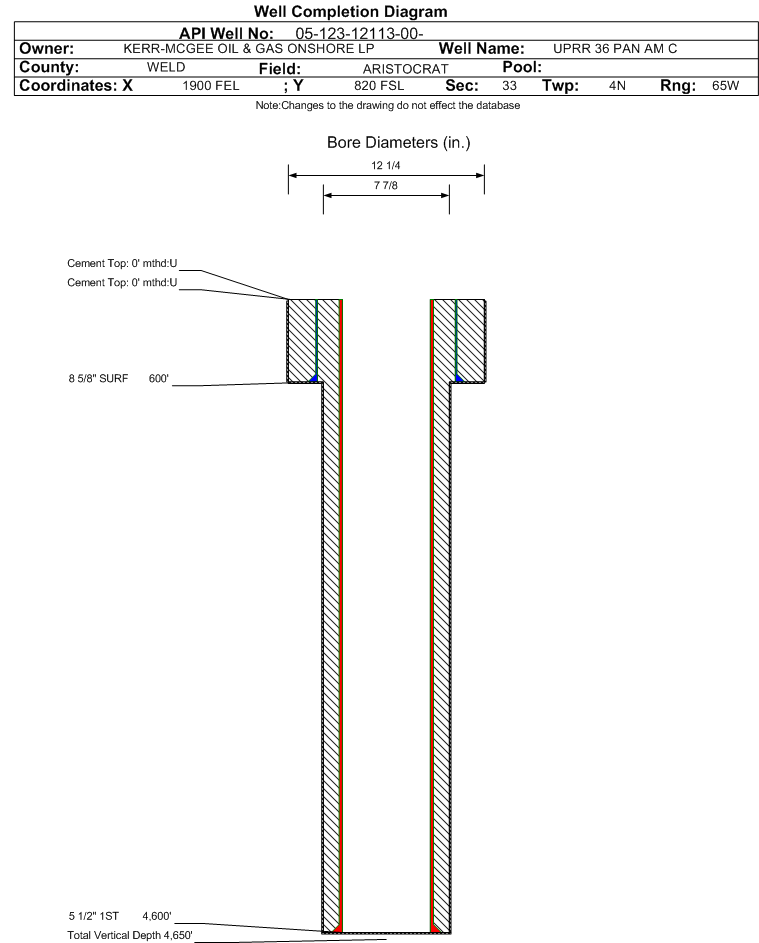

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12113		Well Classification: GW Status: PA - 11/11/2024
Well Name/No:UPRR 36 PAN AM C #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:56170
Facility Status:PAStatus Date11/11/2024
FacilityID:244319LocationID:332904
County:WELD #123Location:SWSE 33 4N65W 6
Field:ARISTOCRAT - #2925Elevation:4817 ft.
Basin:DENVER (DJ) BASIN
Planned Location:820FSL  1900 FELLat/Long: 40.263926 / -104.665597Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.263880 / -104.665570Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 11/11/2024             Measured TD: 4650 ft.    Vertical TD: 4650 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 11/11/2024
Wellbore Permit
Permit #:841670 Expiration Date:3/6/1985
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:2/27/1985
Measured TD:4650 ft.Measured PB depth:4604 ft.
True Vertical TD:4650 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 666 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 666 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 600 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4650 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 3694 ft., Bottom: 4650 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4600 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE150 ft.
SUSSEX4452 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 11/11/2024                Interval Top: 4452 ft.    Interval Bottom: 4512 ft.

 Completed Information for Formation SUSSEX
1st Production Date:5/15/1985Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4452 ft.# Of Holes:15
Interval Bottom:4512 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/11/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
