COGIS - WELL SCOUT CARD

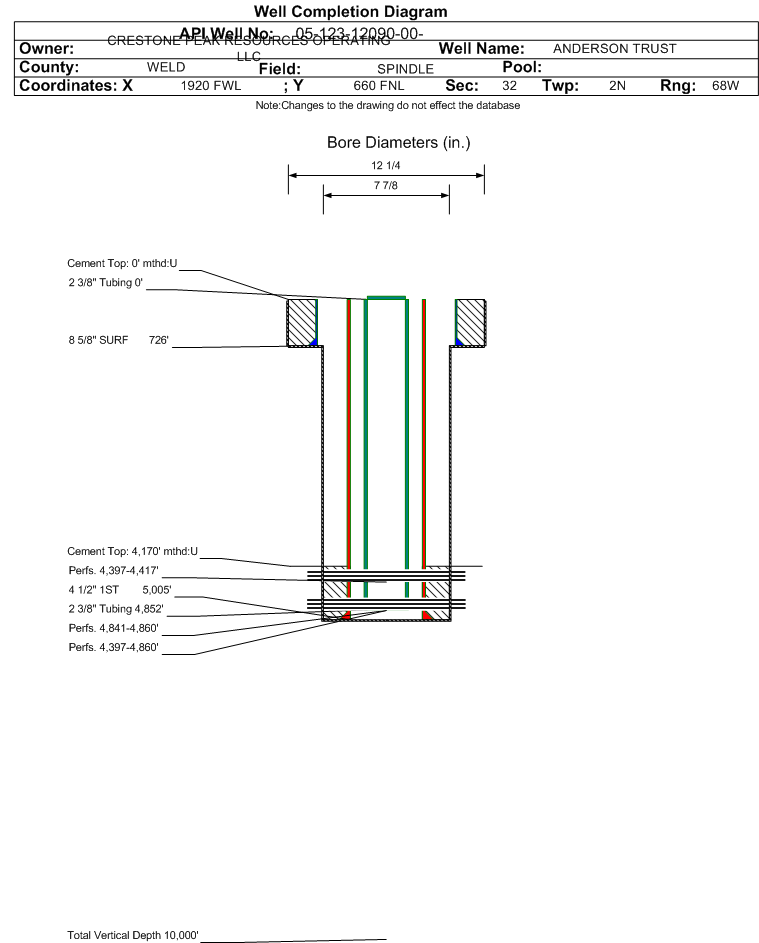

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12090		Well Classification: OW Status: PA - 4/15/2021
Well Name/No:ANDERSON TRUST #2-A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/15/2021
FacilityID:244296LocationID:322809
County:WELD #123Location:NENW 32 2N68W 6
Field:SPINDLE - #77900Elevation:4934 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1920 FWLLat/Long: 40.100507 / -105.030137Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.100554 / -105.030098Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/15/2021             Measured TD: 5005 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/15/2021
Wellbore Permit
Permit #:19841613 Expiration Date:2/24/2000
Proposed Depth/Form:5005 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 50, Drill Unit:
Wellbore Completed
Completion Date:2/17/1997
Spud Date:11/10/1984Spud Date Is:ACTUAL
Measured TD:5005 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION & COMPENSATED DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 726 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 565, Top: 0 ft., Bottom: 726 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5005 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 4140 ft., Bottom: 5005 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4210 ft.NN
SHANNON4840 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 2/17/1997                 Interval Top: 4841 ft.    Interval Bottom: 4860 ft.

 Completed Information for Formation SHANNON
1st Production Date:12/25/1984Choke Size:
Formation Name:SHANNONCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/17/1997
Treatment Summary:55,450 GALS 30# GEL; 156,800# 20-40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/25/1984Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 12.5
CALC_BBLS_H2O 6
CALC_BBLS_OIL 12.5
CALC_GOR 1360
CALC_MCF_GAS 17
CASING_PRESS 800
MCF_GAS 17
TUBING_PRESS 300
Perforation Data:
Interval Top:4841 ft.# Of Holes:38
Interval Bottom:4860 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 2/17/1997                 Interval Top: 4397 ft.    Interval Bottom: 4417 ft.

 Completed Information for Formation SUSSEX
1st Production Date:3/16/1993Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:2/17/1997
Treatment Summary:250,000# 16/30 SAND; 20,000# 12/20 RCS IN 72,000 GALS FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/17/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 25
CALC_BBLS_H2O 0
CALC_BBLS_OIL 25
CALC_GOR 2000
CALC_MCF_GAS 50
CASING_PRESS 340
MCF_GAS 50
TUBING_PRESS 300
Perforation Data:
Interval Top:4397 ft.# Of Holes:20
Interval Bottom:4417 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  AB - 4/15/2021                 Interval Top: 4397 ft.    Interval Bottom: 4860 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:2/17/1997Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4852 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/17/1997Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 18
CALC_BBLS_H2O 0
CALC_BBLS_OIL 18
CALC_GOR 1667
CALC_MCF_GAS 30
CASING_PRESS 600
MCF_GAS 30
TUBING_PRESS 600
Perforation Data:
Interval Top:4397 ft.# Of Holes:58
Interval Bottom:4860 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/15/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
