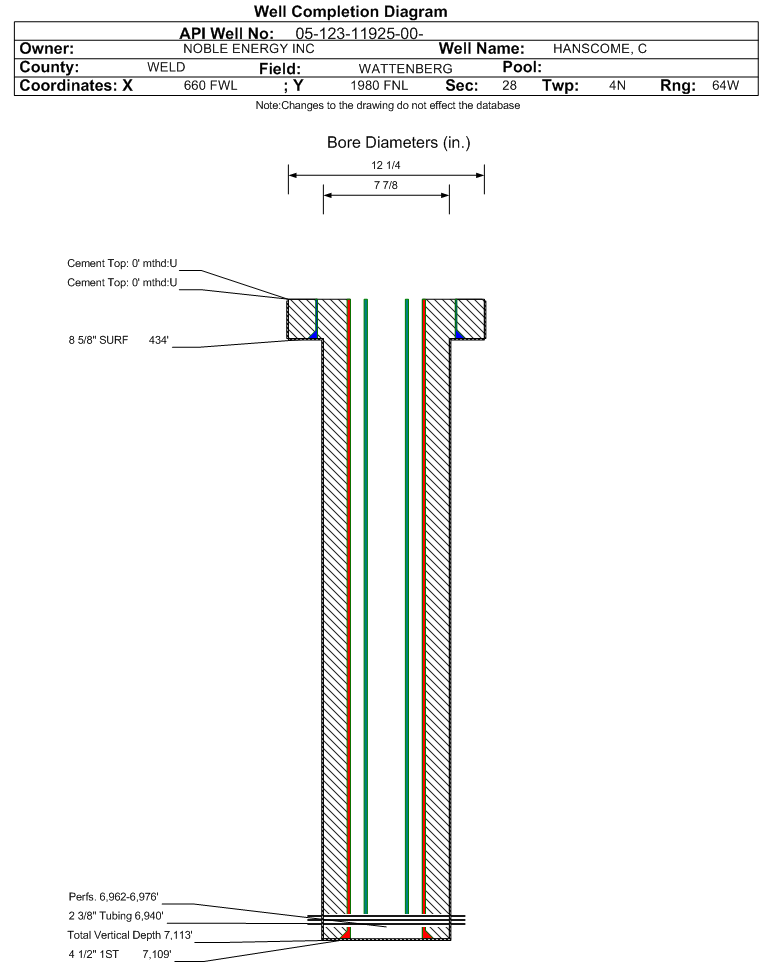

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11925
Well Classification: GW Status: PA - 12/6/2022
Well Name/No:HANSCOME, C #2
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:65492
Facility Status:PAStatus Date12/6/2022
FacilityID:244132LocationID:322716
County:WELD #123Location:SWNW 28 4N64W 6
Field:WATTENBERG - #90750Elevation:4786 ft.
Planned Location:1980FNL  660 FWLLat/Long: 40.285177 / -104.562964Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.285270 / -104.562950Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/6/2022             Measured TD: 7113 ft.    Vertical TD: 7113 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/6/2022
Wellbore PermitDRIFTED
Permit #:841036 Expiration Date:12/1/1984
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:

Wellbore Completed
Completion Date:8/29/1984
Measured TD:7113 ft.Measured PB depth:7095 ft.
True Vertical TD:7113 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 434 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 434 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7109 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 5830 ft., Bottom: 7109 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4328 ft.
NIOBRARA6712 ft.
TIMPAS6936 ft.
CODELL6960 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 12/6/2022                 Interval Top: 6962 ft.    Interval Bottom: 6976 ft.

 Completed Information for Formation CODELL
1st Production Date:1/19/2010Choke Size:0.250 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/4/2009
Treatment Summary:RE-FRAC'D CODELL W/128,058 GALS OF SLICK WATER AND VISTAR WITH 240,00#'S OF OTTAWA SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6940 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/29/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 6
BTU_GAS 1278
CALC_BBLS_H2O 5
CALC_BBLS_OIL 6
CALC_GOR 22166
CALC_MCF_GAS 133
CASING_PRESS 385
GRAVITY_OIL 64
MCF_GAS 133
TUBING_PRESS 190
Perforation Data:
Interval Top:6962 ft.# Of Holes:56
Interval Bottom:6976 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/06/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
