COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11745		Well Classification: OW Status: SI - 8/1/2022
Well Name/No:KETTLER #1-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:62259
Facility Status:SIStatus Date8/1/2022
FacilityID:243953LocationID:322621
Municipality/County:GREELEY / WELD #123Location:SWNW 18 5N66W 6
Field:WATTENBERG - #90750Elevation:4886 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2022FNL  623 FWLLat/Long: 40.401164 / -104.830023Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.401291 / -104.829889Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 8/1/2022             Measured TD: 7535 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 8/1/2022
Wellbore Permit
Permit #:840364 Expiration Date:7/27/1984
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:4/13/1984
Spud Date:4/4/1984Spud Date Is:ACTUAL
Measured TD:7535 ft.Measured PB depth:7447 ft.
True Vertical TD:True Vertical PB depth:
Log Types:

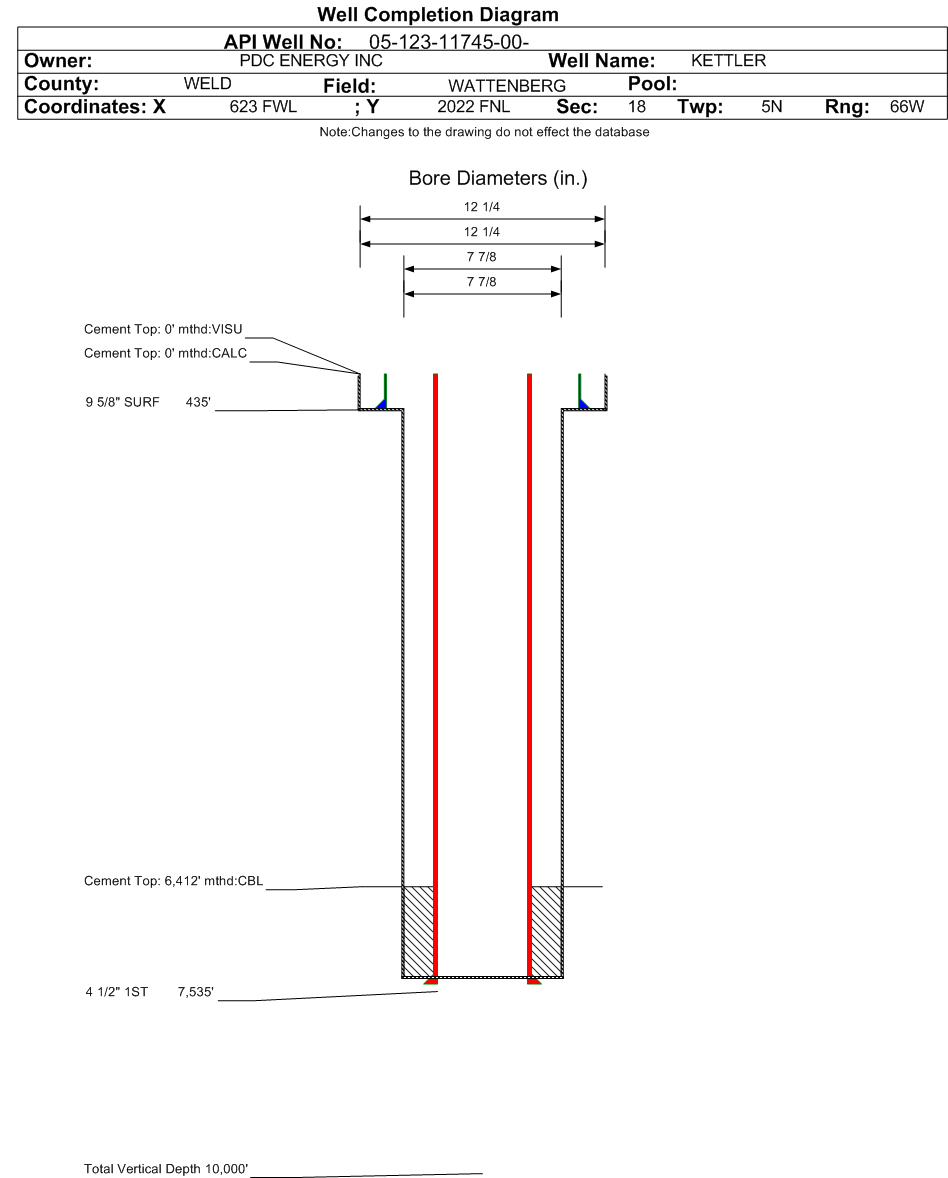

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 435 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 435 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7535 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 6414 ft., Bottom: 7535 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 2480 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 1410 ft., Bottom: 2480 ft., Determination Method: Calc
Casing:String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 2789 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 2725 ft., Bottom: 2850 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4340 ft.
SHANNON4780 ft.
NIOBRARA6920 ft.
FORT HAYS7170 ft.
CODELL7195 ft.

Formation CODL                     Formation Classification:  OW                     Status:  SI - 8/1/2022                  Interval Top: 7195 ft.

 Completed Information for Formation CODELL
1st Production Date:6/4/1984Choke Size:1,264.000 in.
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
No Perforation Data was found for formation CODL.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY11/21/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2022
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
