COGIS - WELL SCOUT CARD

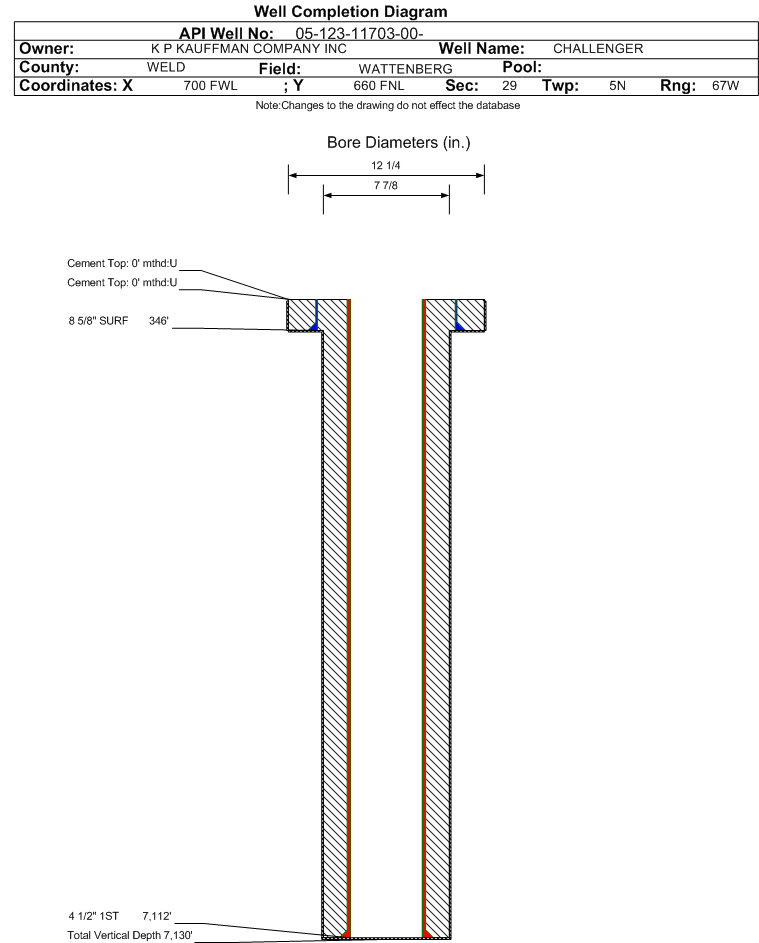

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11703		Well Classification: OW Status: SI - 9/1/2025
Well Name/No:CHALLENGER #1-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:62555
Facility Status:SIStatus Date9/1/2025
FacilityID:243911LocationID:322595
County:WELD #123Location:NWNW 29 5N67W 6
Field:WATTENBERG - #90750Elevation:4793 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  700 FWLLat/Long: 40.376074 / -104.924056Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.375890 / -104.923730Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 9/1/2025             Measured TD: 7130 ft.    Vertical TD: 7130 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 9/1/2025
Wellbore PermitDRIFTED
Permit #:840231 Expiration Date:7/3/1984
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:4/12/1984
Measured TD:7130 ft.Measured PB depth:7095 ft.
True Vertical TD:7130 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 346 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7112 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE971 ft.
SUSSEX3846 ft.
SHANNON4371 ft.
NIOBRARA6662 ft.
FORT HAYS6980 ft.
CODELL7000 ft.
CARLILE7026 ft.
GREENHORN7046 ft.

Formation CODL                     Formation Classification:  OW                     Status:  SI - 9/1/2025                  Interval Top: 7007 ft.    Interval Bottom: 7025 ft.

 Completed Information for Formation CODELL
1st Production Date:4/13/1984Choke Size:
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7007 ft.# Of Holes:30
Interval Bottom:7025 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
