COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11400		Well Classification: GW Status: PA - 4/3/2018
Well Name/No:LEONARD #3-21J
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/3/2018
FacilityID:243608LocationID:319522
County:WELD #123Location:NWSE 21 2N67W 6
Field:WATTENBERG - #90750Elevation:5047 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1320FSL  1440 FELLat/Long: 40.119947 / -104.887853Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.120210 / -104.891541Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/3/2018             Measured TD: 8262 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/3/2018
Wellbore PermitDRIFTED
Permit #:19970218 Expiration Date:3/24/1998
Proposed Depth/Form:8312 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: 320, Drill Unit:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:5/31/1997
Spud Date:11/28/1983Spud Date Is:ACTUAL
Measured TD:8262 ft.Measured PB depth:8252 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION ELECTRIC & COMPENSATED DENSITY

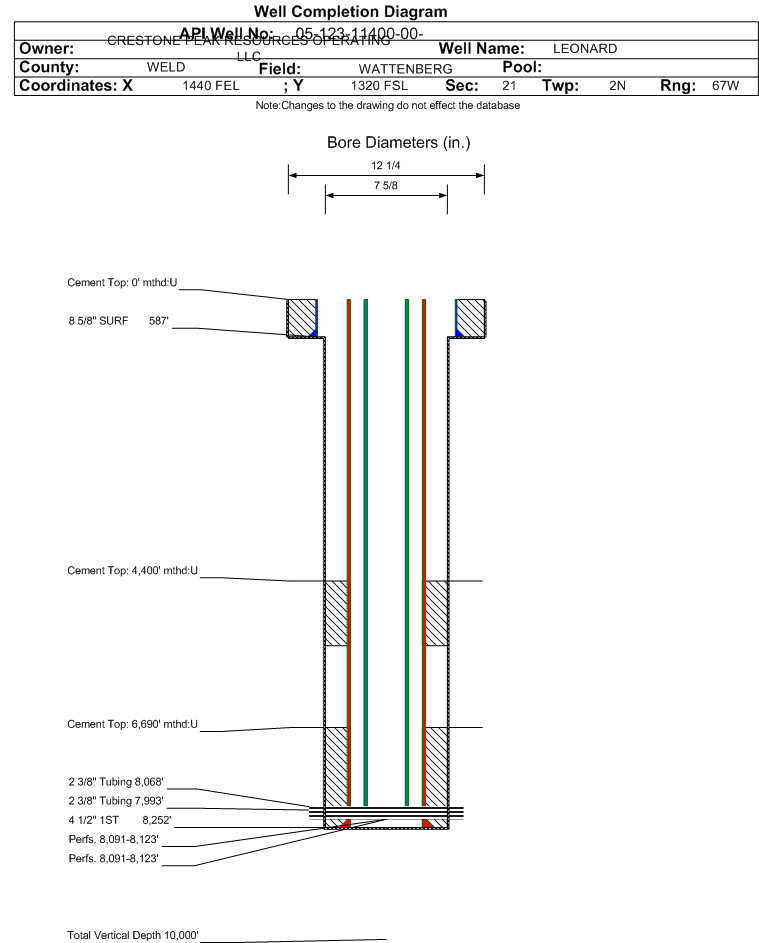

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 587 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 587 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.625 in., Size: 4.5 in., Top: , Depth: 8252 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 6690 ft., Bottom: 8252 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5412 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 4400 ft., Bottom: 5412 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4702 ft.YY
SHANNON5103 ft.YY
NIOBRARA7370 ft.YY
CODELL7646 ft.YY
J SAND8086 ft.YY

Formation DK-J                     Formation Classification:  GW                     Status:  CM - 5/31/1997                 Interval Top: 8091 ft.    Interval Bottom: 8123 ft.

 Completed Information for Formation DAKOTA-JSND
1st Production Date:5/31/1997Choke Size:
Formation Name:DAKOTA-JSNDCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8068 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/9/1997Test Method:PLUNGER 500
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0.4
BBLS_OIL 0.3
CALC_BBLS_H2O 0.4
CALC_BBLS_OIL 0.3
CALC_GOR 250000
CALC_MCF_GAS 75
CASING_PRESS 380
MCF_GAS 75
TUBING_PRESS 300
Perforation Data:
Interval Top:8091 ft.# Of Holes:64
Interval Bottom:8123 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/3/2018                  Interval Top: 8091 ft.    Interval Bottom: 8123 ft.

 Completed Information for Formation J SAND
1st Production Date:12/31/1983Choke Size:0.312 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/31/1997
Treatment Summary:500 GALS 7.5% BDA ACID, 100,000# 100 MESH SAND, 620,000# 2040 MESH SAND
Tubing Size:2.375 in.Tubing Setting Depth:7993 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/31/1983Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 150
BBLS_OIL 0
CASING_PRESS 360
MCF_GAS 957
Perforation Data:
Interval Top:8091 ft.# Of Holes:62
Interval Bottom:8123 ft.Hole Size:

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 4/3/2018

 Completed Information for Formation DAKOTA
1st Production Date:N/AChoke Size:
Formation Name:DAKOTACommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DKTA.
No Perforation Data was found for formation DKTA.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/03/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
