COGIS - WELL SCOUT CARD

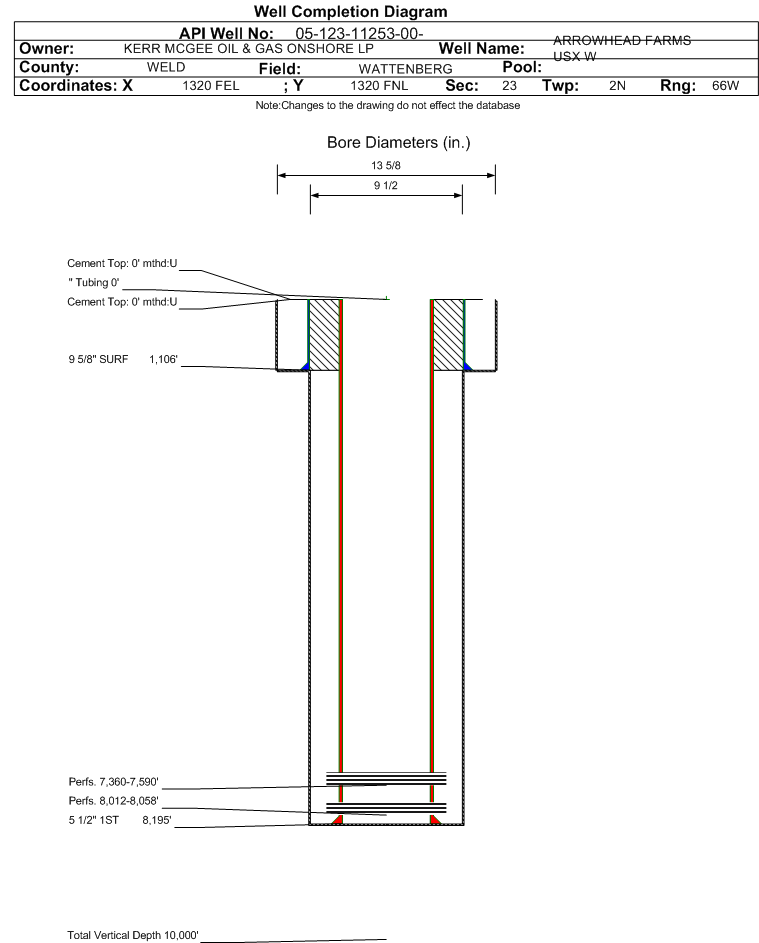

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11253		Well Classification: GW Status: PA - 7/21/2022
Well Name/No:ARROWHEAD FARMS USX W #23-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/21/2022
FacilityID:243462LocationID:319430
County:WELD #123Location:CNE 23 2N66W 6
Field:WATTENBERG - #90750Elevation:5128 ft.
Planned Location:1320FNL  1320 FELLat/Long: 40.127358 / -104.739748Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.127416 / -104.739598Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/21/2022             Measured TD: 8210 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/21/2022
Wellbore Permit
Permit #:20043033 Expiration Date:12/27/2005
Proposed Depth/Form:8210 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 160, Drill Unit: NE4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 160, Drill Unit: NE4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1106 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 540, Top: 0 ft., Bottom: 1106 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8195 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 1175, Top: 4070 ft., Bottom: 8195 ft.
Wellbore Completed
Completion Date:1/29/1984
Spud Date:8/10/1983Spud Date Is:ACTUAL
Measured TD:8210 ft.Measured PB depth:8073 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL-SFL-SP FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1106 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 1106 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8195 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1175, Top: 3424 ft., Bottom: 8195 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4565 ft.
SHANNON4820 ft.
NIOBRARA7300 ft.
CODELL7578 ft.
BENTONITE7847 ft.
J SAND8012 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/21/2022                 Interval Top: 8012 ft.    Interval Bottom: 8058 ft.

 Completed Information for Formation J SAND
1st Production Date:10/25/1983Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/29/1984
Treatment Summary:320 BC x 3826 BW x 100 MESH SN x 832,000# 20/40 SN
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 44
CALC_BBLS_H2O 44
CALC_MCF_GAS 700
GRAVITY_OIL 51.7
MCF_GAS 700
Perforation Data:
Interval Top:8012 ft.# Of Holes:184
Interval Bottom:8058 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/21/2022                 Interval Top: 7360 ft.    Interval Bottom: 7590 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/6/2005Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/29/1984
Treatment Summary:CODELL PERFS: 7360-70 NIOBRARA PERFS: 7422-28, 7431-38, 7578-90. ALL 4 SPF. FRAC W/1000 GAL 15% HCL, 40000 GAL FR WTR, 15000 GAL FR WTR W/.5 PPG SAND, 15,000 GAL FR WTR W/1 PPG SAND AND 151483 GAL SILVERSTIM & 350140# 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 41
CALC_GOR 3415
CASING_PRESS 215
MCF_GAS 140
Perforation Data:
Interval Top:7360 ft.# Of Holes:140
Interval Bottom:7590 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/21/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
