Facility Detail

COGIS - WELL SCOUT CARD

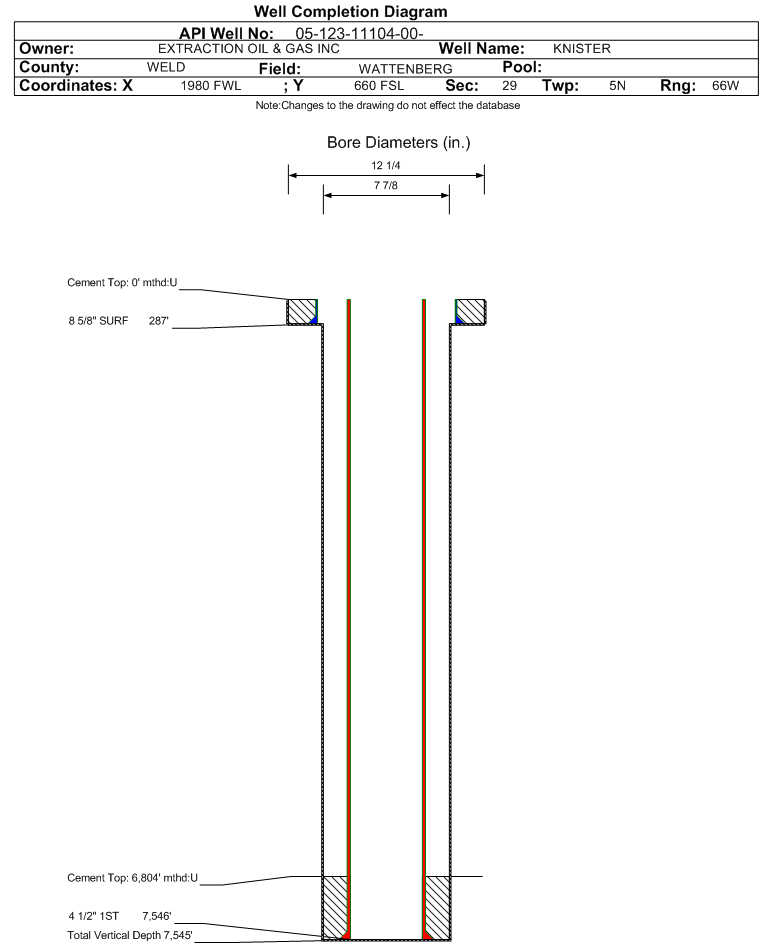

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11104		Well Classification: GW Status: PA - 2/16/2018
Well Name/No:KNISTER #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EXTRACTION OIL & GAS INC - 10459
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:62160
Facility Status:PAStatus Date2/16/2018
FacilityID:243313LocationID:319346
County:WELD #123Location:SESW 29 5N66W 6
Field:WATTENBERG - #90750Elevation:4901 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  1980 FWLLat/Long: 40.364985 / -104.805872Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.365046 / -104.805876Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/16/2018             Measured TD: 7545 ft.    Vertical TD: 7545 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/16/2018
Wellbore Permit
Permit #:830277 Expiration Date:7/22/1983
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:10/10/1983
Measured TD:7545 ft.Measured PB depth:7497 ft.
True Vertical TD:7545 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 287 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 185, Top: 0 ft., Bottom: 287 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7546 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 6804 ft., Bottom: 7546 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
PARKMAN3800 ft.
SUSSEX4525 ft.
SHANNON4892 ft.
NIOBRARA7048 ft.
FORT HAYS7352 ft.
CODELL7374 ft.
GREENHORN7430 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 2/16/2018                 Interval Top: 7374 ft.

 Completed Information for Formation CODELL
1st Production Date:4/4/1984Choke Size:1,264.000 in.
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
No Perforation Data was found for formation CODL.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/16/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
