COGIS - WELL SCOUT CARD

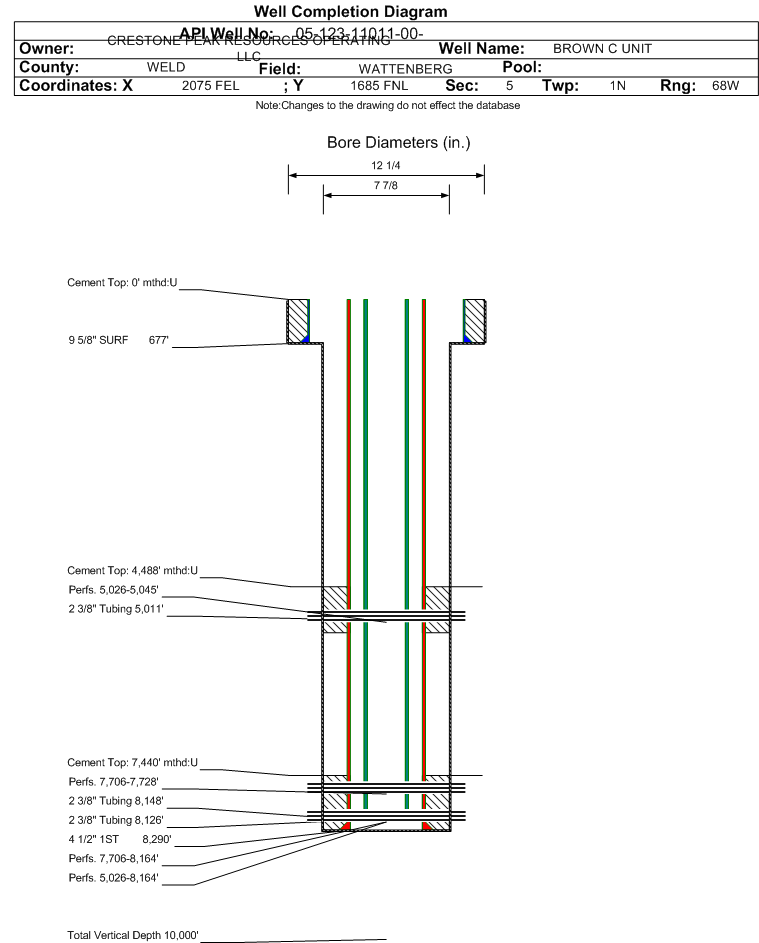

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-11011		Well Classification: GW Status: PA - 7/2/2018
Well Name/No:BROWN C UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/2/2018
FacilityID:243220LocationID:319290
County:WELD #123Location:SWNE 5 1N68W 6
Field:WATTENBERG - #90750Elevation:5009 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1685FNL  2075 FELLat/Long: 40.082877 / -105.025147Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.082873 / -105.025125Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/24/2018             Measured TD: 8292 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/24/2018
Wellbore PermitDRIFTED
Permit #:20031047 Expiration Date:6/18/2004
Proposed Depth/Form:8292 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: 496-3 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 677 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 700, Top: 0 ft., Bottom: 677 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8290 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 220, Top: 7440 ft., Bottom: 8290 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:2/25/1982Spud Date Is:ACTUAL
Measured TD:8292 ft.Measured PB depth:8285 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Log Types:IES, FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 677 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 677 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8290 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 7440 ft., Bottom: 8290 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5210 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 4488 ft., Bottom: 5210 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4432 ft.
SHANNON5015 ft.
NIOBRARA7370 ft.
TIMPAS7685 ft.
CODELL7706 ft.
GREENHORN7774 ft.
J SAND8121 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 7/2/2018                  Interval Top: 7706 ft.    Interval Bottom: 7728 ft.

 Completed Information for Formation CODELL
1st Production Date:6/27/1992Choke Size:0.406 in.
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:1/11/1984
Treatment Summary:299,000# 20/40 SAND IN 124,000 GAL GEL
Tubing Size:2.375 in.Tubing Setting Depth:8148 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/8/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 33
CALC_GOR 4393
MCF_GAS 145
TUBING_PRESS 360
Perforation Data:
Interval Top:7706 ft.# Of Holes:88
Interval Bottom:7728 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 1/24/2018                 Interval Top: 7706 ft.    Interval Bottom: 8164 ft.

 Completed Information for Formation J-CODELL
1st Production Date:7/20/1992Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8148 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/24/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 16
CALC_GOR 8750
CASING_PRESS 570
MCF_GAS 140
TUBING_PRESS 350
Perforation Data:
Interval Top:7706 ft.# Of Holes:144
Interval Bottom:8164 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/2/2018                  Interval Top: 5026 ft.    Interval Bottom: 8164 ft.

 Completed Information for Formation J SAND
1st Production Date:1/12/1984Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/11/1984
Treatment Summary:DRILL CIBP. PUSH TO 8185'. RIH W/PROD TBG, LAND EOT @ 8126'. BROACH TBG. SWAB
Tubing Size:2.375 in.Tubing Setting Depth:8126 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/7/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 3
CALC_BBLS_OIL 3
CALC_GOR 2
CALC_MCF_GAS 7
CASING_PRESS 600
MCF_GAS 7
TUBING_PRESS 200
Perforation Data:
Interval Top:5026 ft.# Of Holes:220
Interval Bottom:8164 ft.Hole Size:0.45 in.

Formation SNSD                     Formation Classification:  GW                     Status:  AB - 7/2/2018                  Interval Top: 5026 ft.    Interval Bottom: 5045 ft.

 Completed Information for Formation SHANNON
1st Production Date:N/AChoke Size:
Formation Name:SHANNONCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/11/1984
Treatment Summary:SEE SCANNED DOC# 1188592
Tubing Size:2.375 in.Tubing Setting Depth:5011 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 26
CALC_BBLS_H2O 5
CALC_BBLS_OIL 26
CALC_GOR 2538
CALC_MCF_GAS 66
CASING_PRESS 40
MCF_GAS 66
Perforation Data:
Interval Top:5026 ft.# Of Holes:76
Interval Bottom:5045 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/02/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
