Wellbore #00 Wellbore Classification: GW Status: PA - 12/7/2018 Measured TD: 8263 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 12/7/2018 | | Wellbore Permit | DRIFTED | | Permit #: | 19821868 | Expiration Date: | 7/24/1995 | | Proposed Depth/Form: | 8175 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SE4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2 |
| | |

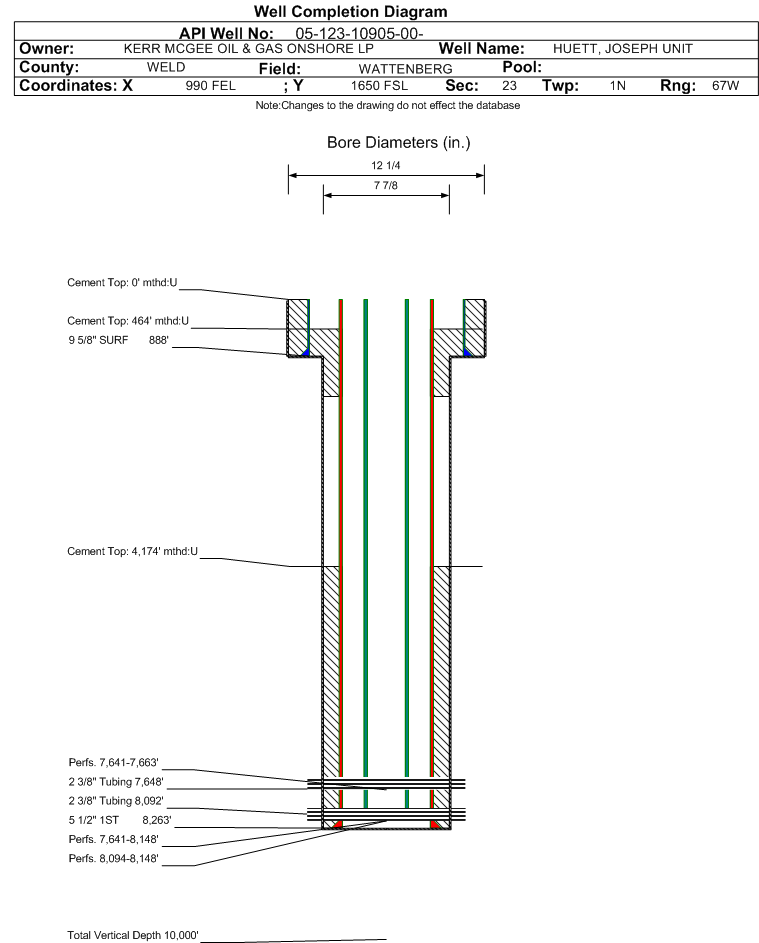

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 11/15/1982 | Spud Date Is: | ACTUAL | | Measured TD: | 8263 ft. | Measured PB depth: | 8193 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Log Types: | SP-IES FDC-GR CALIPER CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 888 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 888 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8263 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 4174 ft., Bottom: 8263 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1508 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 385, Top: 464 ft., Bottom: 1516 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 462 ft., Depth: 1508 ft., Bottom: 1508 ft., Sacks: 385, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4578 ft. | | N | N | | NIOBRARA | 7245 ft. | | N | N | | CODELL | 7640 ft. | | N | N | | BENTONITE | 7914 ft. | | N | N | | J SAND | 8092 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 12/7/2018 Interval Top: 8094 ft. Interval Bottom: 8148 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 6/14/1983 | Choke Size: | 0.000 in. | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/2/1983 | | Treatment Summary: | FRAC X 446 BC X 2756 BLW X 24600# 20/40 SN - FLUSH X 28 BW |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8092 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/2/1983 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 30 | | BBLS_OIL | 85 | | CALC_GOR | 7176 | | GRAVITY_OIL | 53.8 | | MCF_GAS | 610 |
| | Perforation Data: | | Interval Top: | 8094 ft. | # Of Holes: | | | Interval Bottom: | 8148 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: GW Status: AB - 12/7/2018 Interval Top: 7641 ft. Interval Bottom: 7663 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/15/1995 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/2/1983 | | Treatment Summary: | DIVERTAFRAC: PUMPED 71 BBLS OF POLYMER GEL AND 390 BBLS OF GEL WITH 4500 LBS OF 20/40 SAND. FLUSHED WITH 106 BBLS OF GEL. CODELL FRAC: PUMPED 428 BBLS OF GEL AND 542 BBLS OF GEL WITH 135000 LBS OF 20/40 SAND. FLUSHED WITH 30 BBLS OF 2% KCL. MAX PSI: 6700, MAX RATE: 17.5 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7648 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/15/1995 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 45 | | BBLS_OIL | 20 | | CALC_GOR | 4150 | | CASING_PRESS | 1676 | | MCF_GAS | 83 | | TUBING_PRESS | 1490 |
| | Perforation Data: | | Interval Top: | 7641 ft. | # Of Holes: | 88 | | Interval Bottom: | 7663 ft. | Hole Size: | 0.38 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 12/7/2018 Interval Top: 7641 ft. Interval Bottom: 8148 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | 12/15/1995 | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/6/1996 | Test Method: | FLOWING | | Hours Tested: | 72 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 9 | | BBLS_OIL | 24 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 7125 | | CALC_MCF_GAS | 57 | | MCF_GAS | 171 |
| | Perforation Data: | | Interval Top: | 7641 ft. | # Of Holes: | | | Interval Bottom: | 8148 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/07/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
