COGIS - WELL SCOUT CARD

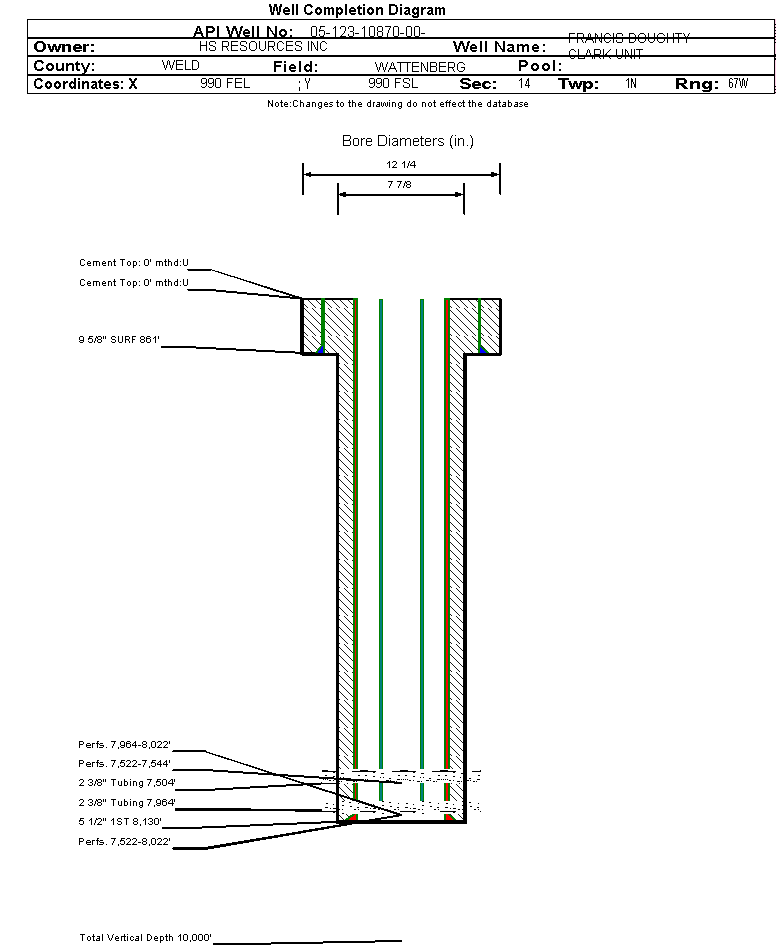

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10870		Well Classification: GW Status: PA - 2/5/2020
Well Name/No:FRANCIS DOUGHTY CLARK UNIT #B-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/5/2020
FacilityID:243079LocationID:319210
County:WELD #123Location:SESE 14 1N67W 6
Field:WATTENBERG - #90750Elevation:4947 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FSL  990 FELLat/Long: 40.046378 / -104.852121Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.046360 / -104.852060Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/5/2020             Measured TD: 8130 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/5/2020
Wellbore PermitDRIFTED
Permit #:19821741 Expiration Date:3/3/1983
Proposed Depth/Form:8150 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:5/22/1983
Spud Date:10/27/1982Spud Date Is:ACTUAL
Measured TD:8130 ft.Measured PB depth:8070 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 861 ft., Weight: 43.5 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 861 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8130 ft., Weight: 15.5/17 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 4640 ft., Bottom: 8130 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: 5.5 in., Top: , Depth: 4440 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 4272 ft., Bottom: 4568 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: 5.5 in., Top: , Depth: 4440 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 4272 ft., Bottom: 4568 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4520 ft.NN
SHANNON5155 ft.NN
NIOBRARA7190 ft.NN
CODELL7522 ft.NN
BENTONITE7793 ft.NN
J SAND7946 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 2/5/2020                  Interval Top: 7964 ft.    Interval Bottom: 8022 ft.

 Completed Information for Formation J SAND
1st Production Date:5/3/1983Choke Size:0.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/22/1983
Treatment Summary:FRAC X 39,000# 100 MESH SN X 442,500# 20/40 SN X 433 BLC X 3771 BLW
Tubing Size:2.375 in.Tubing Setting Depth:7964 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/22/1983Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 18
CALC_GOR 45555
GRAVITY_OIL 62.3
MCF_GAS 820
Perforation Data:
Interval Top:7964 ft.# Of Holes:
Interval Bottom:8022 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 2/5/2020                  Interval Top: 7522 ft.    Interval Bottom: 7544 ft.

 Completed Information for Formation CODELL
1st Production Date:1/4/1996Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/22/1983
Treatment Summary:DIVERTAFRAC: PUMPED 71 BBLS OF POLYMER GEL AND 213 BBLS OF GEL WITH 4,500 LBS OF 20/40 SAND. FLUSH WITH 106 BBLS OF GEL. CODELL FRAC: PUMPED 477 BBLS OF GEL AND 786 BBLS OF GEL WITH 200,000 LBS OF 20/40 SAND. FLUSHED WITH 33 BBLS OF 2% KCL. MAX PSI: 6,700, MAX RATE: 17.2 BPM
Tubing Size:2.375 in.Tubing Setting Depth:7504 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/4/1996Test Method:FLOWING
Hours Tested:20.3Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 41
CALC_BBLS_H2O 16.55
CALC_BBLS_OIL 48.47
CALC_GOR 1854
CALC_MCF_GAS 88.66
CASING_PRESS 1578
MCF_GAS 75
TUBING_PRESS 1520
Perforation Data:
Interval Top:7522 ft.# Of Holes:88
Interval Bottom:7544 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 2/5/2020                  Interval Top: 7522 ft.    Interval Bottom: 8022 ft.

 Completed Information for Formation J-CODELL
1st Production Date:11/27/1996Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/27/1996Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 18
CALC_GOR 31222
MCF_GAS 562
Perforation Data:
Interval Top:7522 ft.# Of Holes:
Interval Bottom:8022 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/05/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
