Wellbore #00 Wellbore Classification: GW Status: AB - 2/17/2026 Measured TD: 7350 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 2/17/2026 | | Wellbore Permit | | | Permit #: | 20050349 | Expiration Date: | 2/21/2006 | | Proposed Depth/Form: | 7338 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 336-2 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SKCRK , Formation: SKULL CREEK , Order: 0 , Unit Acreage: 0, Drill Unit: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 212 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 212 ft. |
| | |

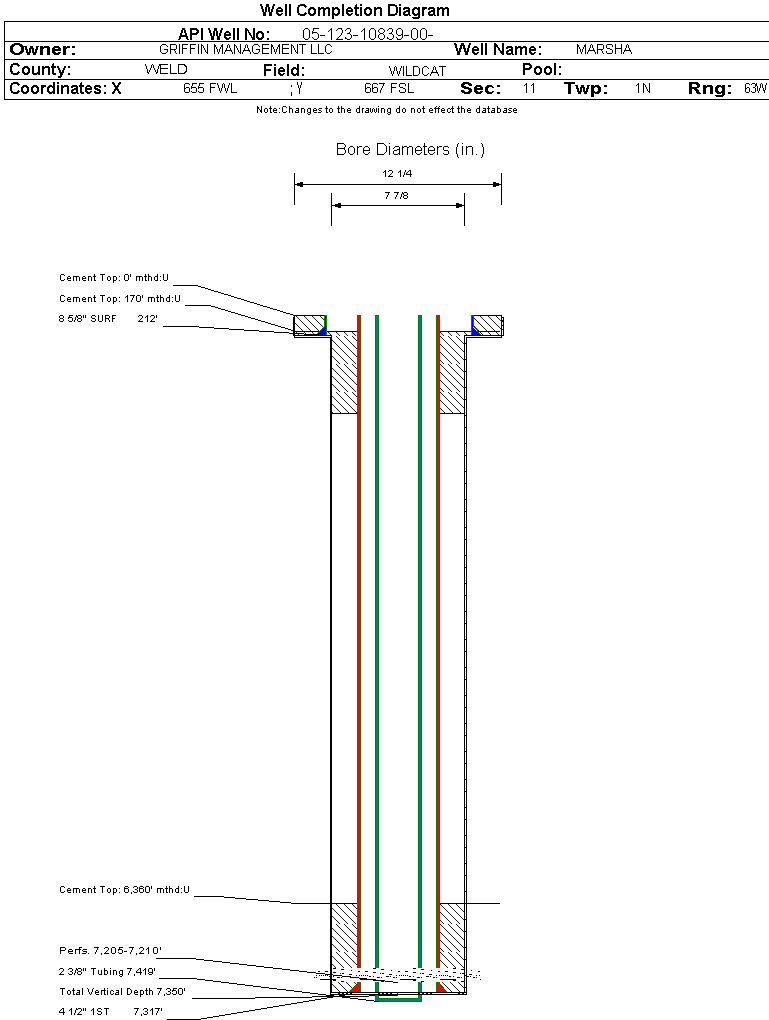

| Wellbore Completed | | Completion Date: | 3/24/2005 | | Spud Date: | 3/21/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7350 ft. | Measured PB depth: | 7317 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 212 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 212 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7317 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 6360 ft., Bottom: 7317 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1060 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 170 ft., Bottom: 1060 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 557 ft. | | | | | SUSSEX | 4200 ft. | | | | | NIOBRARA | 6369 ft. | 6560 ft. | N | N | | FORT HAYS | 6720 ft. | 6748 ft. | N | N | | CODELL | 6752 ft. | 6772 ft. | N | N | | CARLILE | 6762 ft. | | | | | GREENHORN | 6810 ft. | 6830 ft. | N | N | | BENTONITE | 7043 ft. | 7145 ft. | N | N | | D SAND | 7146 ft. | 7152 ft. | N | N | | J SAND | 7204 ft. | 7250 ft. | N | N | | SKULL CREEK | 7254 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 2/17/2026 Interval Top: 7205 ft. Interval Bottom: 7210 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | 0.750 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | PLUNGER LIFT | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/24/2005 | | Treatment Summary: | 500 GALS 7.5% ACID, 1165 BBGLS DYNA FLOW 3 AND 74,752# 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7419 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/23/2005 | Test Method: | PLUNGER LIFT | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | VENTED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 3 | | BTU_GAS | 1200 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 21667 | | CALC_MCF_GAS | 65 | | CASING_PRESS | 400 | | GRAVITY_OIL | 40 | | MCF_GAS | 65 | | TUBING_PRESS | 400 |
| | Perforation Data: | | Interval Top: | 7205 ft. | # Of Holes: | 16 | | Interval Bottom: | 7210 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/17/2026 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
03/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
02/13/2024 |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
