COGIS - WELL SCOUT CARD

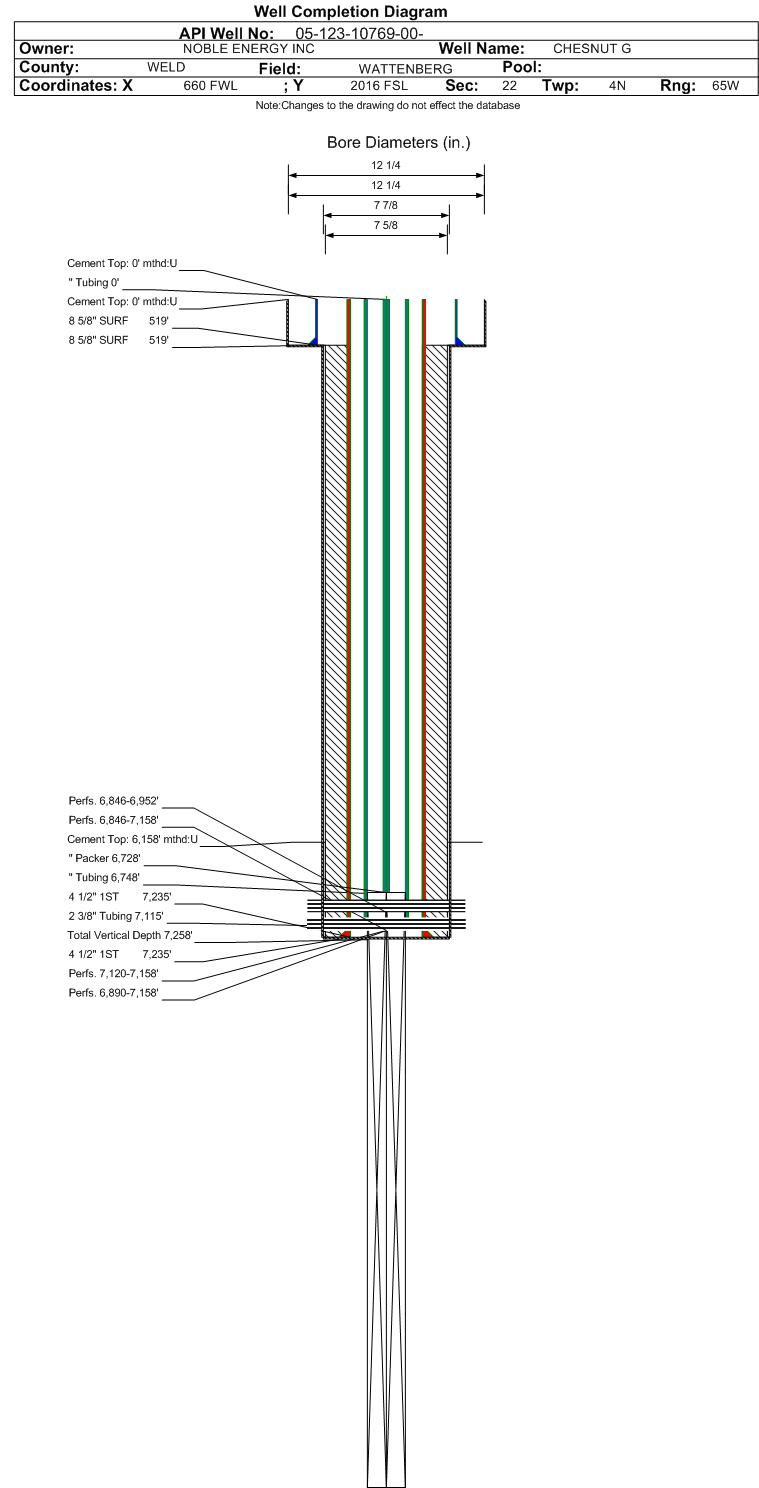

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10769		Well Classification: GW Status: PA - 2/28/2017
Well Name/No:CHESNUT G #22-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/28/2017
FacilityID:242978LocationID:332522
County:WELD #123Location:SWNW 22 4N65W 6
Field:WATTENBERG - #90750Elevation:4780 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2016FNL  660 FWLLat/Long: 40.299532 / -104.656246Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.299580 / -104.656400Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/28/2017             Measured TD: 7258 ft.    Vertical TD: 7258 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/28/2017
Wellbore Permit
Permit #:20040215 Expiration Date:2/23/2005
Proposed Depth/Form:7142 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W/2NW
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 519 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 500, Top: 0 ft., Bottom: 519 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7235 ft., Weight: 10.5 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 6158 ft., Bottom: 7235 ft.
Wellbore Completed
Completion Date:9/13/1982
Measured TD:7258 ft.Measured PB depth:7195 ft.
True Vertical TD:7258 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 519 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 519 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 519 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 500, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7235 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6158 ft., Bottom: 7235 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.625 in., Size: 4.5 in., Top: 0 ft., Depth: 7235 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4403 ft.
NIOBRARA6840 ft.
TIMPAS7116 ft.
CODELL7140 ft.

Formation CD-FH                   Formation Classification:  GW                   Status:  CM - 2/19/2010                 Interval Top: 7120 ft.    Interval Bottom: 7158 ft.

 Completed Information for Formation CODELL-FORT HAYS
1st Production Date:N/AChoke Size:
Formation Name:CODELL-FORT HAYSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/28/2010
Treatment Summary:CODELL AND FT.HAYS SI UNDER SAND PLUG. REMOVED SAND PLUG AND COMMINGLE WITH NB
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CD-FH.
Perforation Data:
Interval Top:7120 ft.# Of Holes:69
Interval Bottom:7158 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  CM - 2/28/2017                 Interval Top: 6890 ft.    Interval Bottom: 7158 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/8/2004Choke Size:0.219 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/13/1982
Treatment Summary:PERF CODELL 7142'-7158' (64 HOLES) FRAC'D CODELL W/131,208 GAL VISTAR 26# GEL & 244,760# 20/40 SAND, 1/20/05 SQZD NIO W/51 SX MAGMA FIBER, 1/13/05
Tubing Size:Tubing Setting Depth:6748 ft.
Tubing Packer Depth:6748 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/3/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 20
BTU_GAS 1264
CALC_BBLS_H2O 18
CALC_BBLS_OIL 20
CALC_GOR 17050
CALC_MCF_GAS 341
GRAVITY_OIL 61
MCF_GAS 341
TUBING_PRESS 410
Perforation Data:
Interval Top:6890 ft.# Of Holes:121
Interval Bottom:7158 ft.Hole Size:0.42 in.

Formation NBFHC                   Formation Classification:  GW                   Status:  AB - 2/28/2017                 Interval Top: 6846 ft.    Interval Bottom: 7158 ft.

 Completed Information for Formation NIOBRARA-FT HAYS-CODELL
1st Production Date:2/12/2010Choke Size:0.250 in.
Formation Name:NIOBRARA-FT HAYS-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/28/2010
Treatment Summary:COMMINGLE NIOBRARA, CODEL, AND FT. HAYS.
Tubing Size:2.375 in.Tubing Setting Depth:7115 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 19
BTU_GAS 1289
CALC_BBLS_H2O 25
CALC_BBLS_OIL 19
CALC_GOR 16842
CALC_MCF_GAS 320
CASING_PRESS 610
GRAVITY_OIL 66
MCF_GAS 320
TUBING_PRESS 360
Perforation Data:
Interval Top:6846 ft.# Of Holes:125
Interval Bottom:7158 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/5/2010                  Interval Top: 6846 ft.    Interval Bottom: 6952 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:1/29/2010Choke Size:0.250 in.
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/28/2010
Treatment Summary:RE-FRAC'D NIOBRARA W/175,145 GALS OF SLICK WATER, VISTA, AND 15% HCI WITH 248,700#'S OF OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/5/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 14
BTU_GAS 1289
CALC_BBLS_H2O 9
CALC_BBLS_OIL 14
CALC_GOR 14857
CALC_MCF_GAS 208
CASING_PRESS 185
GRAVITY_OIL 62
MCF_GAS 208
TUBING_PRESS 0
Perforation Data:
Interval Top:6846 ft.# Of Holes:56
Interval Bottom:6952 ft.Hole Size:0.73 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/28/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
