COGIS - WELL SCOUT CARD

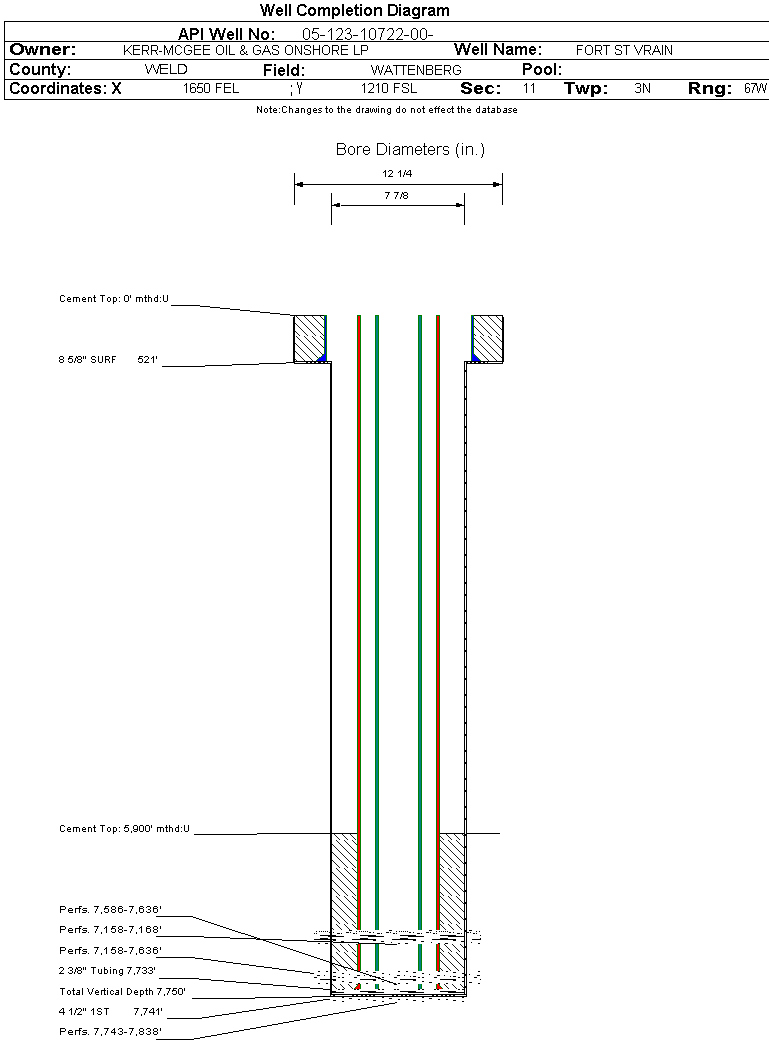

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10722		Well Classification: OW Status: PA - 6/21/2021
Well Name/No:FORT ST VRAIN #14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/21/2021
FacilityID:242931LocationID:319120
County:WELD #123Location:SWSE 11 3N67W 6
Field:WATTENBERG - #90750Elevation:4744 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1210FSL  1650 FELLat/Long: 40.235876 / -104.854743Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.235970 / -104.854970Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 6/21/2021             Measured TD: 7750 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/21/2021
Wellbore Permit
Permit #:19970590 Expiration Date:7/29/1998
Proposed Depth/Form:7852 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 499 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:8/4/1983
Spud Date:10/1/1982Spud Date Is:ACTUAL
Measured TD:7750 ft.Measured PB depth:7682 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GAMMA RAY INDUCTION, DCLC/GR; DI; PROLOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 521 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 521 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7741 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 5900 ft., Bottom: 7741 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4136 ft.NN
NIOBRARA6867 ft.NN
CODELL7156 ft.NN
J SAND7586 ft.NN
DAKOTA7786 ft.NN

Formation DKTA                     Formation Classification:  OW                     Status:  AB - 6/21/2021                 Interval Top: 7743 ft.    Interval Bottom: 7838 ft.

 Completed Information for Formation DAKOTA
1st Production Date:N/AChoke Size:
Formation Name:DAKOTACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/4/1983
Treatment Summary:FRACED W/ 9156 GALLONS GELLED FLUID, 4020100 MESH SAND, 40100# 20/40 UNIMIM-BRIGHTON, 8000# 20/40 ACFRAC 0 #
Tubing Size:2.375 in.Tubing Setting Depth:7733 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/27/2001Test Method:PLUNGER 500
Hours Tested:1.8Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 7
CALC_GOR 9286
CASING_PRESS 738
MCF_GAS 65
TUBING_PRESS 320
Perforation Data:
Interval Top:7743 ft.# Of Holes:10
Interval Bottom:7838 ft.Hole Size:0.31 in.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 6/21/2021                 Interval Top: 7586 ft.    Interval Bottom: 7636 ft.

 Completed Information for Formation J SAND
1st Production Date:8/4/1983Choke Size:1.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/4/1983
Treatment Summary:500 GAL 7.5% SPEARHEAD ACID 135000 GAL POLARIS 40 aPOLLO 40 GEL 400000# 20.40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/4/1983Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 180
BBLS_OIL 0
CALC_BBLS_H2O 180
CALC_BBLS_OIL 0
CALC_MCF_GAS 800
CASING_PRESS 200
MCF_GAS 800
Perforation Data:
Interval Top:7586 ft.# Of Holes:35
Interval Bottom:7636 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  AB - 6/21/2021                 Interval Top: 7158 ft.    Interval Bottom: 7168 ft.

 Completed Information for Formation CODELL
1st Production Date:8/16/1994Choke Size:0.250 in.
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/4/1983
Treatment Summary:63840 GAL SATURN III 40/35/30 LHT/HC/D CROSSLINK GEL CONTAINING 202000# 20/40
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/18/1994Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 28
CALC_BBLS_H2O 6
CALC_BBLS_OIL 28
CALC_MCF_GAS 82
GRAVITY_OIL 52.1
MCF_GAS 82
TUBING_PRESS 1750
Perforation Data:
Interval Top:7158 ft.# Of Holes:20
Interval Bottom:7168 ft.Hole Size:

Formation DKJCD                   Formation Classification:  OW                   Status:  CM - 8/27/2001                 Interval Top: 7158 ft.    Interval Bottom: 7636 ft.

 Completed Information for Formation DAKOTA-J-CODELL
1st Production Date:N/AChoke Size:
Formation Name:DAKOTA-J-CODELLCommingled:Yes
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:8/4/1983
Treatment Summary:COMMINGLED
Tubing Size:2.375 in.Tubing Setting Depth:7733 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/31/1997Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 17
CALC_BBLS_H2O 2
CALC_BBLS_OIL 17
CALC_GOR 31824
CALC_MCF_GAS 541
CASING_PRESS 340
GRAVITY_OIL 60
MCF_GAS 541
TUBING_PRESS 260
Perforation Data:
Interval Top:7158 ft.# Of Holes:
Interval Bottom:7636 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/21/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
