COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10687		Well Classification: GW Status: PA - 8/9/2019
Well Name/No:FRANK #1-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:63027
Facility Status:PAStatus Date8/9/2019
FacilityID:242896LocationID:319103
County:WELD #123Location:NWNW 13 4N65W 6
Field:WATTENBERG - #90750Elevation:4721 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  600 FWLLat/Long: 40.317806 / -104.618896Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.317900 / -104.618752Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/9/2019             Measured TD: 7150 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/9/2019
Wellbore PermitDRIFTED
Permit #:820812 Expiration Date:9/10/1982
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:5/19/1982
Spud Date:5/10/1982Spud Date Is:ACTUAL
Measured TD:7150 ft.Measured PB depth:7119 ft.
True Vertical TD:True Vertical PB depth:
Log Types:

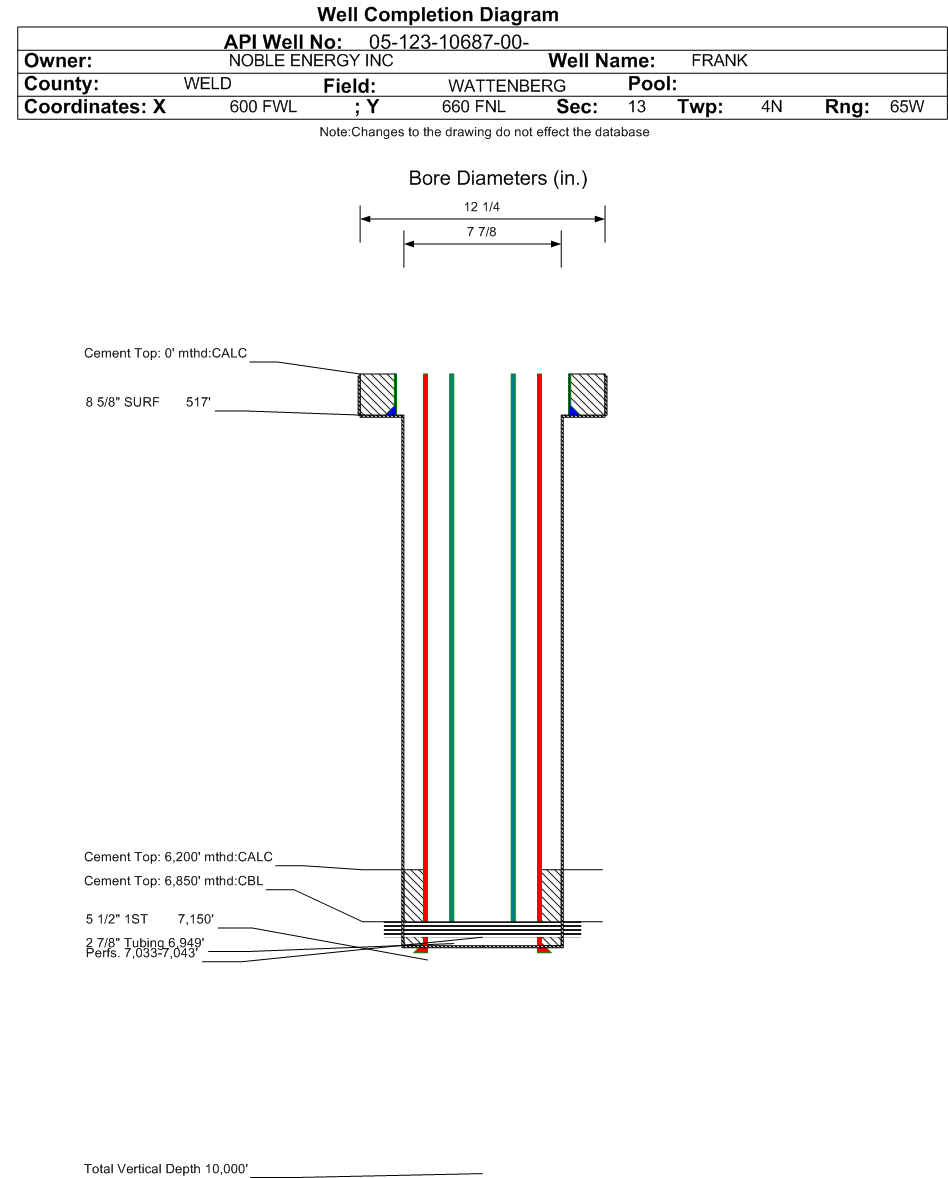

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 517 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 517 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7150 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 6850 ft., Bottom: 7150 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6870 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6200 ft., Bottom: 6870 ft., Determination Method: CALC
Additional Cement:String Type: 1ST , Top: 6200 ft., Depth: 6850 ft., Bottom: 6870 ft., Sacks: 135, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
SUSSEX4384 ft.
NIOBRARA6736 ft.
FORT HAYS7009 ft.
CODELL7032 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 8/9/2019                  Interval Top: 7033 ft.    Interval Bottom: 7043 ft.

 Completed Information for Formation CODELL
1st Production Date:6/10/1982Choke Size:0.375 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/10/1982
Treatment Summary:REFRACED CODL W/216000# 20/40 SD USING 112392 GAL OF VISTAR 22#,20# GEL.
Tubing Size:2.875 in.Tubing Setting Depth:6949 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/17/2000Test Method:FLOWING
Hours Tested:8Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 10
CALC_BBLS_H2O 18
CALC_BBLS_OIL 30
CALC_GOR 16200
CALC_MCF_GAS 486
CASING_PRESS 500
MCF_GAS 162
TUBING_PRESS 400
Perforation Data:
Interval Top:7033 ft.# Of Holes:40
Interval Bottom:7043 ft.Hole Size:3 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/09/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
