COGIS - WELL SCOUT CARD

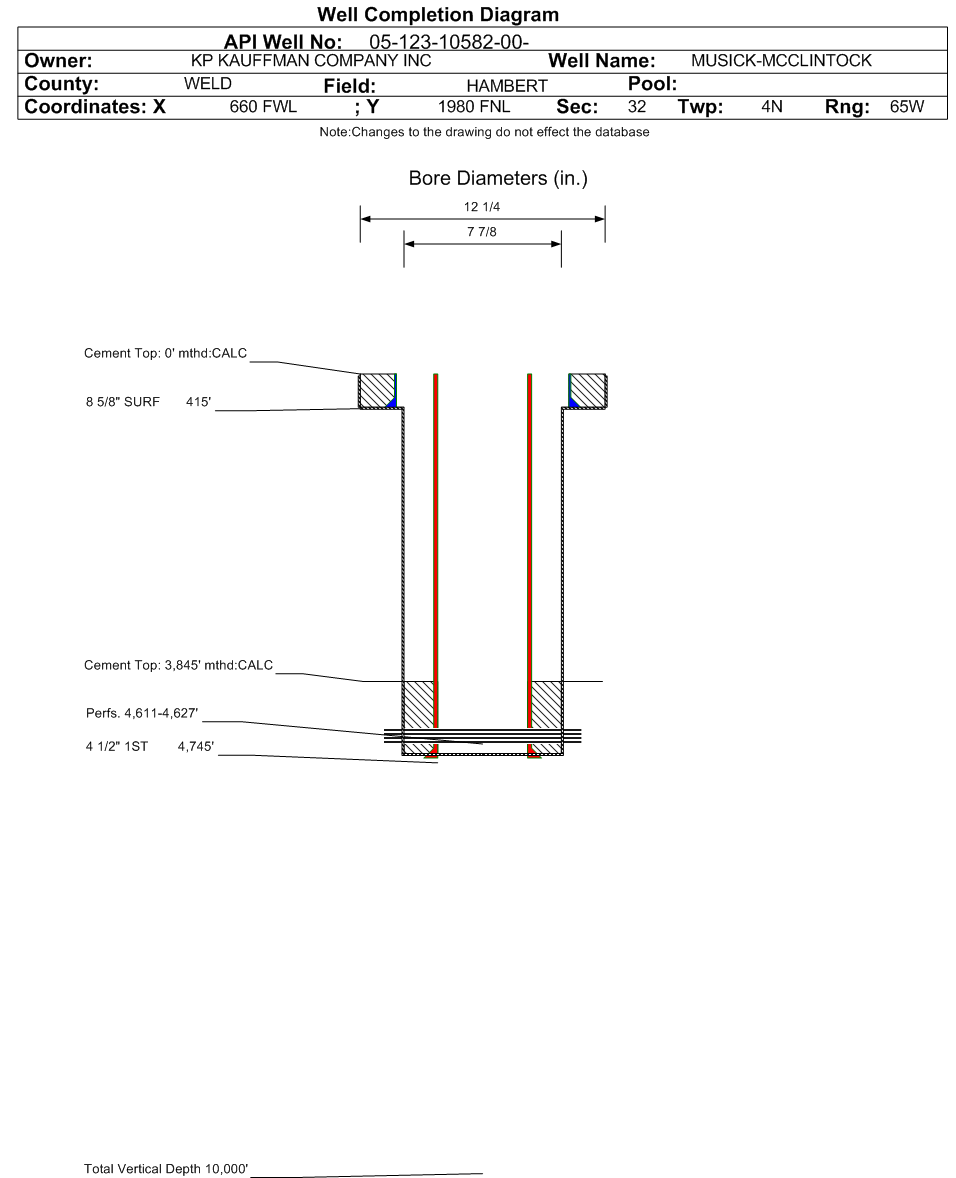

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10582		Well Classification: GW Status: TA - 10/1/2011
Well Name/No:MUSICK-MCCLINTOCK #6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:69075
Facility Status:TAStatus Date10/1/2011
FacilityID:242791LocationID:336567
County:WELD #123Location:SWNW 32 4N65W 6
Field:HAMBERT - #33530Elevation:4893 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  660 FWLLat/Long: 40.270666 / -104.694258Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.271106 / -104.693479Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: TA - 10/1/2011             Measured TD: 4750 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        TA - 10/1/2011
Wellbore PermitDRIFTED
Permit #:820273 Expiration Date:6/18/1982
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:11/24/1982
Measured TD:4750 ft.Measured PB depth:4714 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 415 ft., Weight: 24 , Citings Type: HISTORICAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 415 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4745 ft., Weight: 10.5 , Citings Type: HISTORICAL
Cement:Sacks: 225, Top: 3845 ft., Bottom: 4745 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4561 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  TA - 10/1/2011                 Interval Top: 4611 ft.    Interval Bottom: 4627 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/10/1982Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4611 ft.# Of Holes:24
Interval Bottom:4627 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
10/01/2011
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
