COGIS - WELL SCOUT CARD

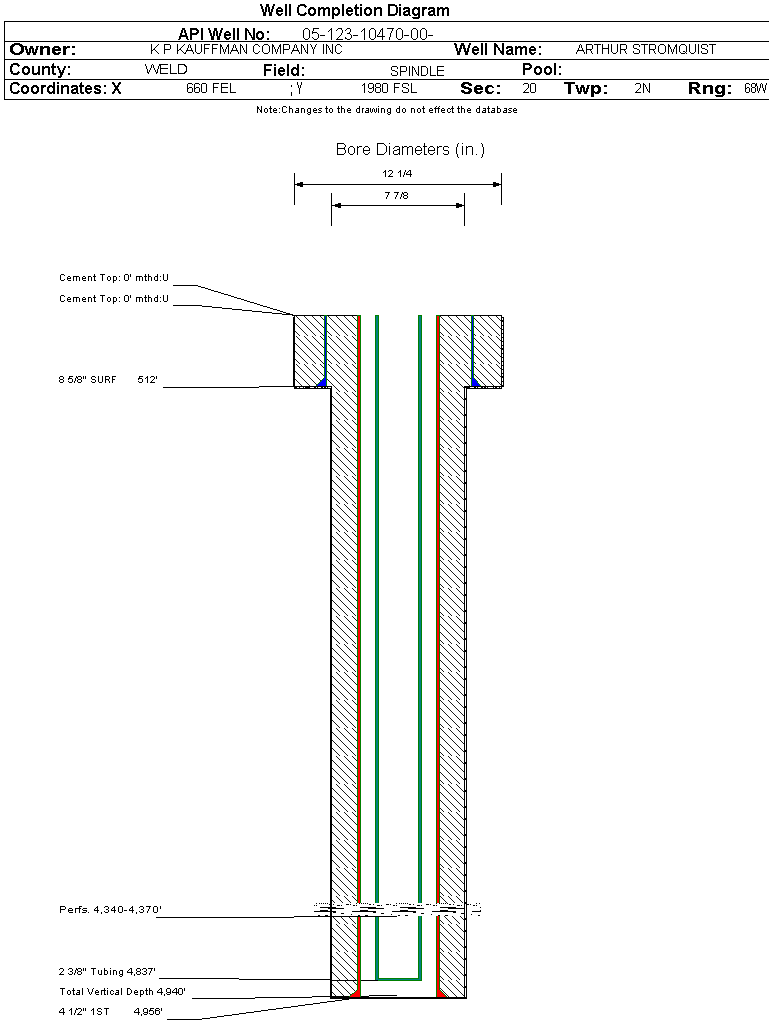

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10470		Well Classification: GW Status: SI - 5/1/2021
Well Name/No:ARTHUR STROMQUIST #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2021
FacilityID:242679LocationID:319005
Municipality/County:FREDERICK / WELD #123Location:NESE 20 2N68W 6
Field:SPINDLE - #77900Elevation:4895 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1780FSL  660 FELLat/Long: 40.121867 / -105.020087Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.121753 / -105.020166Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 5/1/2021             Measured TD: 4940 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 5/1/2021
Wellbore Permit
Permit #:19812038 Expiration Date:3/17/1982
Proposed Depth/Form:4950 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:2/17/1982
Spud Date:12/29/1981Spud Date Is:ACTUAL
Measured TD:4940 ft.Measured PB depth:4842 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 512 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4956 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 425, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4340 ft.NN
SHANNON4794 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  SI - 5/1/2021                  Interval Top: 4340 ft.    Interval Bottom: 4370 ft.

 Completed Information for Formation SHANNON
1st Production Date:2/18/1982Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:2/17/1982
Treatment Summary:FRAC 884 BO X 457 BW; 214,500# 10-20 SN
Tubing Size:2.375 in.Tubing Setting Depth:4837 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/19/1982Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 25
CALC_BBLS_H2O 5
CALC_BBLS_OIL 25
CALC_MCF_GAS 251
GRAVITY_OIL 41.4
MCF_GAS 251
Perforation Data:
Interval Top:4340 ft.# Of Holes:60
Interval Bottom:4370 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2021
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
