COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10398		Well Classification: GW Status: PA - 5/24/2021
Well Name/No:MOSER #41-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/24/2021
FacilityID:242607LocationID:318965
County:WELD #123Location:NENE 28 3N65W 6
Field:WATTENBERG - #90750Elevation:4820 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FNL  990 FELLat/Long: 40.200917 / -104.662897Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.200800 / -104.662970Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

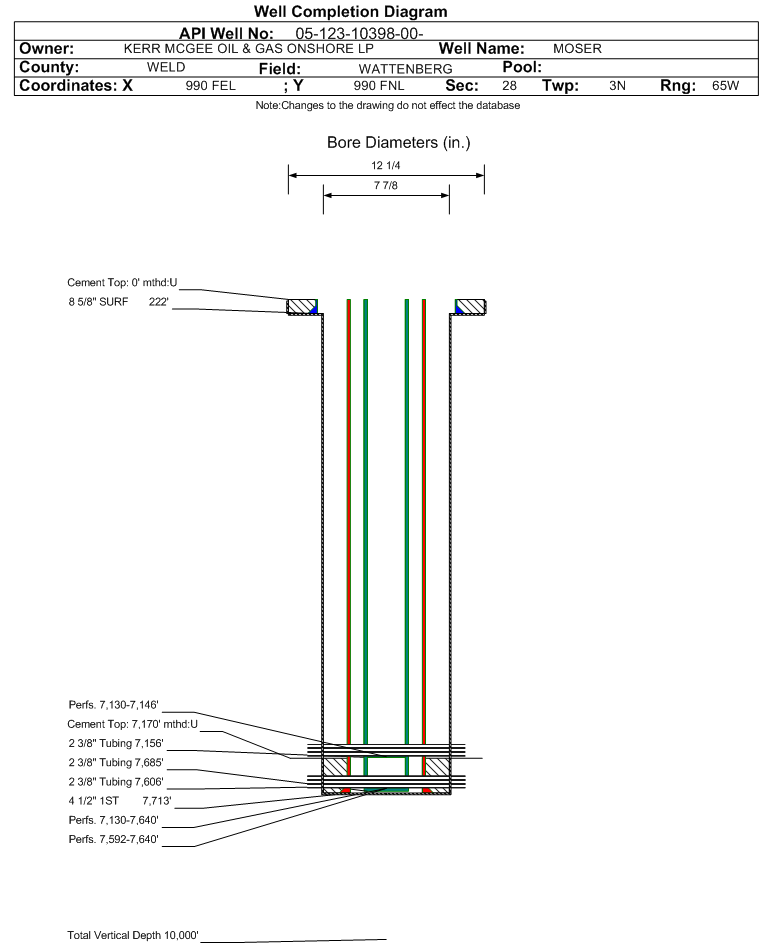

Wellbore #00             Wellbore Classification: GW             Status: PA - 5/24/2021             Measured TD: 7721 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 5/24/2021
Wellbore Permit
Permit #:19811624 Expiration Date:10/25/1993
Proposed Depth/Form:7721 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:N/A
Spud Date:10/21/1981Spud Date Is:ACTUAL
Measured TD:7721 ft.Measured PB depth:7690 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL, CDL
Log Types:
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 8.625 in., Top: 0 ft., Depth: 222 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 222 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7713 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 7170 ft., Bottom: 7713 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7155 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6000 ft., Bottom: 7155 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5060 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 267, Top: 4222 ft., Bottom: 5052 ft., Determination Method: CBL
Casing:String Type: S.C. 1.3, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 2411 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 2398 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 4222 ft., Depth: 5060 ft., Bottom: 5052 ft., Sacks: 267, Method: 1 INCH
Additional Cement:String Type: 1ST , Top: 649 ft., Depth: 2411 ft., Bottom: 2398 ft., Sacks: 200, Method: 1 INCH
Additional Cement:String Type: 1ST , Top: 0 ft., Depth: 649 ft., Bottom: 649 ft., Sacks: 275, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6844 ft.NN
FORT HAYS7106 ft.NN
CARLILE7128 ft.NN
GREENHORN7194 ft.NN
J SAND7580 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 5/24/2021                 Interval Top: 7592 ft.    Interval Bottom: 7640 ft.

 Completed Information for Formation J SAND
1st Production Date:12/28/1981Choke Size:0.500 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/4/1993
Treatment Summary:ACIDIZE W/1000 GALS 15% HCI BREAKDOWN. FRAC W/218,820 GAL APOLLO GEL 25,000# 100 MESH & 499,000# 20/40 MESH SAND & 40 TONS CO2.
Tubing Size:2.375 in.Tubing Setting Depth:7685 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/28/1981Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 600
CASING_PRESS 550
MCF_GAS 600
TUBING_PRESS 210
Perforation Data:
Interval Top:7592 ft.# Of Holes:84
Interval Bottom:7640 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  AB - 5/24/2021                 Interval Top: 7130 ft.    Interval Bottom: 7146 ft.

 Completed Information for Formation CODELL
1st Production Date:12/22/1992Choke Size:0.063 in.
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/4/1993
Treatment Summary:31,000 GALS MY-T-GEL 1400 HT + 47,350 GALS MY-T-GEL 1350 HT + 4050 GAL GW + 221,440# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:7156 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/12/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 25
CALC_BBLS_H2O 0
CALC_BBLS_OIL 25
CALC_GOR 12600
CALC_MCF_GAS 315
CASING_PRESS 480
GRAVITY_OIL 53
MCF_GAS 315
TUBING_PRESS 250
Perforation Data:
Interval Top:7130 ft.# Of Holes:64
Interval Bottom:7146 ft.Hole Size:0.4 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 7/12/1996                 Interval Top: 7130 ft.    Interval Bottom: 7640 ft.

 Completed Information for Formation J-CODELL
1st Production Date:10/14/1993Choke Size:
Formation Name:J-CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:10/4/1993
Treatment Summary:COMMINGLED
Tubing Size:2.375 in.Tubing Setting Depth:7606 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/1993Test Method:PLUNGER 500
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 5
CALC_BBLS_OIL 5
CALC_GOR 55000
CALC_MCF_GAS 275
CASING_PRESS 380
GRAVITY_OIL 53
MCF_GAS 275
TUBING_PRESS 250
Perforation Data:
Interval Top:7130 ft.# Of Holes:
Interval Bottom:7640 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/24/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
