COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10280		Well Classification: OW Status: SI - 2/1/2025
Well Name/No:MARGARET TWOMBLY 'B' #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date2/1/2025
FacilityID:242489LocationID:318922
County:WELD #123Location:NESW 9 2N66W 6
Field:SPINDLE - #77900Elevation:4914 ft.
Planned Location:1980FSL  1980 FWLLat/Long: 40.150707 / -104.784500Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.150901 / -104.784554Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

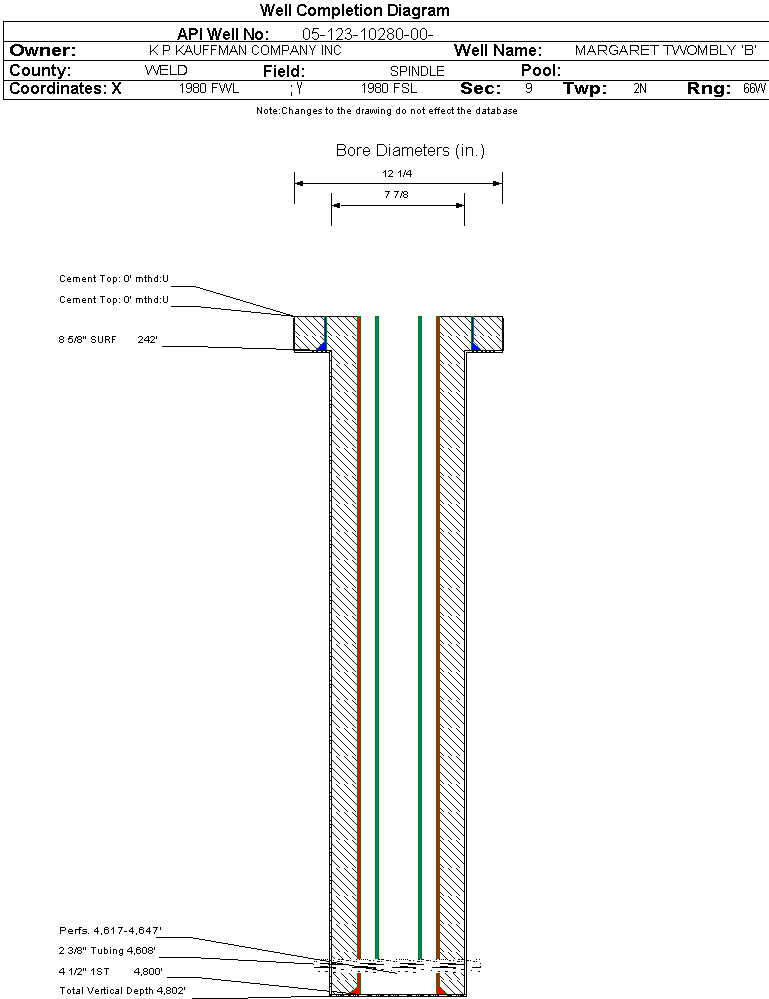

Wellbore #00             Wellbore Classification: OW             Status: SI - 2/1/2025             Measured TD: 4802 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 2/1/2025
Wellbore Permit
Permit #:19810692 Expiration Date:9/1/1981
Proposed Depth/Form:4800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 80, Drill Unit: N2SW
Wellbore Completed
Completion Date:7/26/1981
Spud Date:5/11/1981Spud Date Is:ACTUAL
Measured TD:4802 ft.Measured PB depth:4758 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 242 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4800 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE614 ft.NN
SUSSEX4412 ft.NN

Formation SUSX                     Formation Classification:  OW                     Status:  SI - 2/1/2025                  Interval Top: 4617 ft.    Interval Bottom: 4647 ft.

 Completed Information for Formation SUSSEX
1st Production Date:7/24/1981Choke Size:1.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/26/1981
Treatment Summary:SEE SCANNED DOCUMENTS
Tubing Size:2.375 in.Tubing Setting Depth:4608 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/24/1981Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 20
CALC_GOR 1700
GRAVITY_OIL 40.6
MCF_GAS 34
Perforation Data:
Interval Top:4617 ft.# Of Holes:120
Interval Bottom:4647 ft.Hole Size:0.38 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day0.022
Average MCFE per Day0.130

 Federal Financial Assurance  i

 Tribal Well  i No
