COGIS - WELL SCOUT CARD

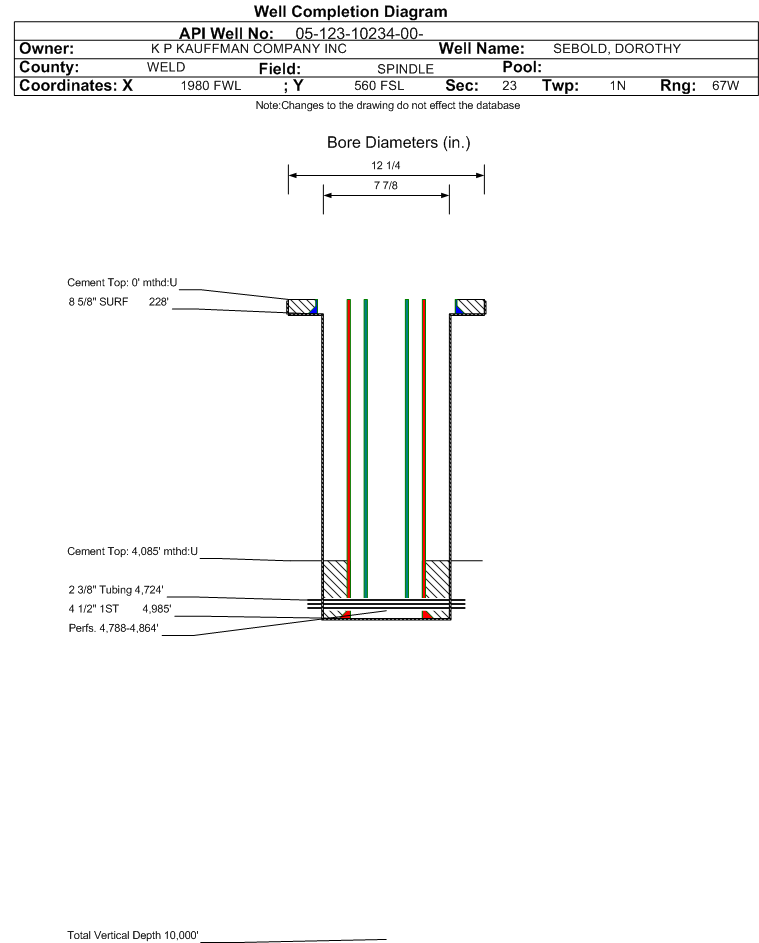

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10234		Well Classification: OW Status: SI - 5/1/2021
Well Name/No:SEBOLD, DOROTHY #B-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2021
FacilityID:242443LocationID:318909
County:WELD #123Location:SESW 23 1N67W 6
Field:SPINDLE - #77900Elevation:4989 ft.
Basin:DENVER (DJ) BASIN
Planned Location:560FSL  1980 FWLLat/Long: 40.030808 / -104.860251Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.030930 / -104.860200Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 5/1/2021             Measured TD: 4985 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 5/1/2021
Wellbore Permit
Permit #:19810460 Expiration Date:7/27/1981
Proposed Depth/Form:4900 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 40, Drill Unit: SESW
Wellbore Completed
Completion Date:6/8/1981
Spud Date:3/23/1981Spud Date Is:ACTUAL
Measured TD:4985 ft.Measured PB depth:4942 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP - IES, FDC - GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 228 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4985 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 4085 ft., Bottom: 4985 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE828 ft.NN
SUSSEX4640 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  SI - 5/1/2021                  Interval Top: 4788 ft.    Interval Bottom: 4864 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/6/1981Choke Size:1.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:6/8/1981
Treatment Summary:SPEARHEAD 500 GALS 7.5% BDA W 1350 BBLS X 963 BBLS WATER X 263,000# 10/20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4724 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/6/1981Test Method:ROD PUMP
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 12
CALC_GOR 2916
GRAVITY_OIL 42.8
MCF_GAS 35
Perforation Data:
Interval Top:4788 ft.# Of Holes:
Interval Bottom:4864 ft.Hole Size:0.38 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2021
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
