COGIS - WELL SCOUT CARD

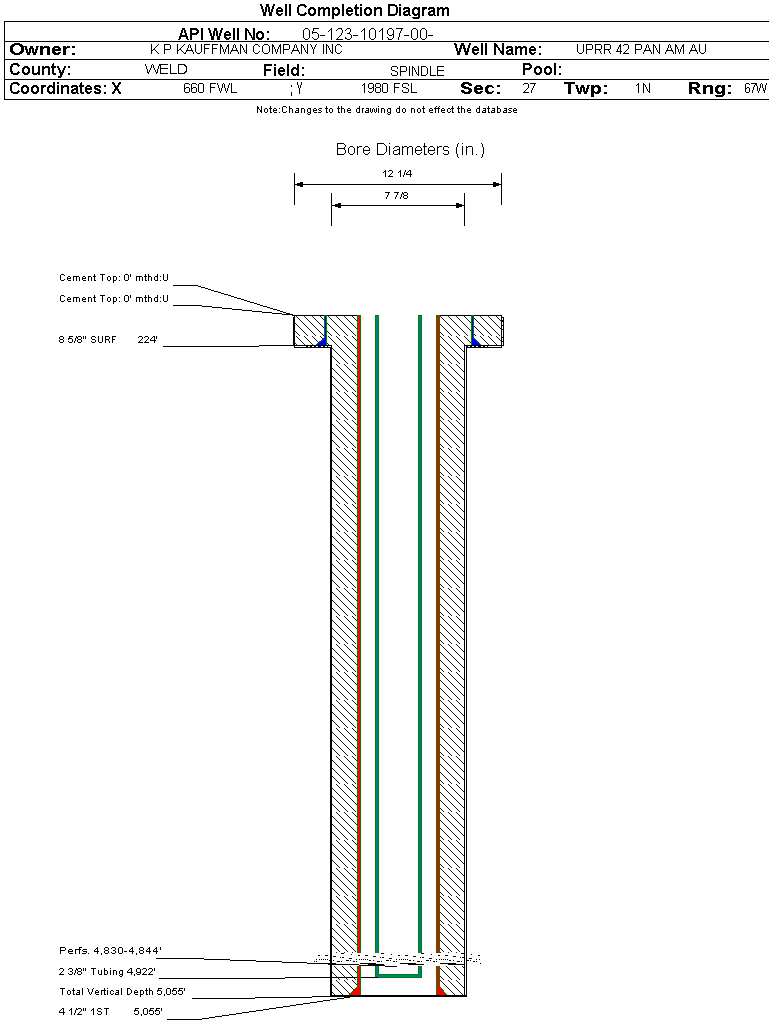

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10197		Well Classification: GW Status: PR - 8/1/2024
Well Name/No:UPRR 42 PAN AM AU #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2024
FacilityID:242406LocationID:318895
County:WELD #123Location:NWSW 27 1N67W 6
Field:SPINDLE - #77900Elevation:5005 ft.
Planned Location:1980FSL  660 FWLLat/Long: 40.020238 / -104.883672Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.020240 / -104.883710Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2024             Measured TD: 5055 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2024
Wellbore Permit
Permit #:19810271 Expiration Date:6/20/1981
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 40, Drill Unit: NWSW
Wellbore Completed
Completion Date:5/11/1981
Spud Date:3/6/1981Spud Date Is:ACTUAL
Measured TD:5055 ft.Measured PB depth:5006 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP - IES, FDC - GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 224 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5055 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE793 ft.NN
SUSSEX4650 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 8/1/2024                  Interval Top: 4830 ft.    Interval Bottom: 4844 ft.

 Completed Information for Formation SUSSEX
1st Production Date:5/8/1981Choke Size:1.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/1981
Treatment Summary:SPOT 500 GAL 7.5% BDA ACID - EMULSIFRAC 1853 BO 910 BW 192000# 20/40 36000# 1 X 20 FLUSH X 78 BW
Tubing Size:2.375 in.Tubing Setting Depth:4922 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/8/1981Test Method:ROD PUMP
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 28
CALC_GOR 1000
GRAVITY_OIL 42.8
MCF_GAS 28
Perforation Data:
Interval Top:4830 ft.# Of Holes:
Interval Bottom:4844 ft.Hole Size:0.38 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
02/2024 - 01/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)57
GOR
GOR DeterminationMCFE
Average BOE per Day0.027
Average MCFE per Day0.155

 Federal Financial Assurance  i

 Tribal Well  i No
