COGIS - WELL SCOUT CARD

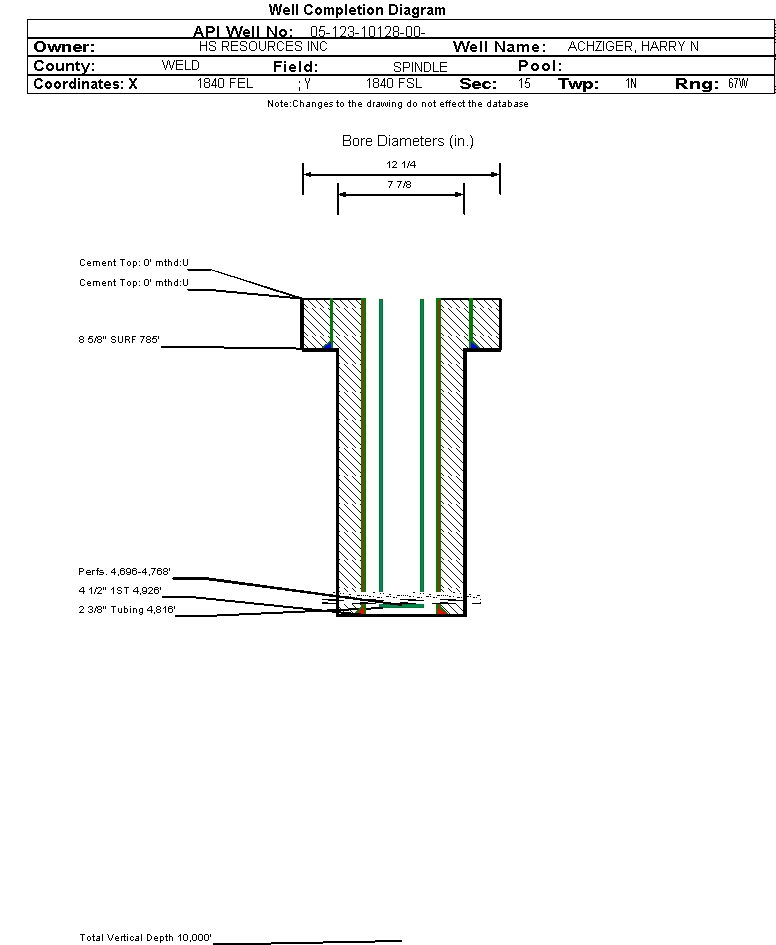

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10128		Well Classification: GW Status: PR - 5/1/2024
Well Name/No:ACHZIGER, HARRY N #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2024
FacilityID:242337LocationID:318864
County:WELD #123Location:NWSE 15 1N67W 6
Field:SPINDLE - #77900Elevation:5010 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1840FSL  1840 FELLat/Long: 40.048788 / -104.873962Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.048830 / -104.873910Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2024             Measured TD: 4926 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2024
Wellbore Permit
Permit #:19801729 Expiration Date:3/25/1981
Proposed Depth/Form:4900 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 40, Drill Unit: NWSE
Wellbore Completed
Completion Date:3/28/1981
Spud Date:2/12/1981Spud Date Is:ACTUAL
Measured TD:4926 ft.Measured PB depth:4876 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 785 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4926 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4638 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 5/1/2024                  Interval Top: 4696 ft.    Interval Bottom: 4768 ft.

 Completed Information for Formation SUSSEX
1st Production Date:3/28/1981Choke Size:1.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:3/28/1981
Treatment Summary:FRAC X 121968 GAL WATER - 22400# 20/40 SN - FLUSH X 3360 GAL WATER
Tubing Size:2.375 in.Tubing Setting Depth:4816 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/28/1981Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 33
BBLS_OIL 35
CALC_GOR 3714
GRAVITY_OIL 44.8
MCF_GAS 130
Perforation Data:
Interval Top:4696 ft.# Of Holes:
Interval Bottom:4768 ft.Hole Size:0.38 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)99
Total Gas Produced (MCF)205
GOR2070
GOR DeterminationBOE
Average BOE per Day0.368
Average MCFE per Day2.126

 Federal Financial Assurance  i

 Tribal Well  i No
