COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09599		Well Classification: OW Status: PR - 8/1/2023
Well Name/No:UPRR 42 PAN AM AN #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2023
FacilityID:241810LocationID:318651
County:WELD #123Location:NESW 21 1N67W 6
Field:SPINDLE - #77900Elevation:5022 ft.
Planned Location:1920FSL  1920 FWLLat/Long: 40.034538 / -104.898133Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.034596 / -104.898260Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/1/2023             Measured TD: 5010 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/1/2023
Wellbore Permit
Permit #:19780921 Expiration Date:1/14/1979
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: 0 , Unit Acreage: 40, Drill Unit: NESW

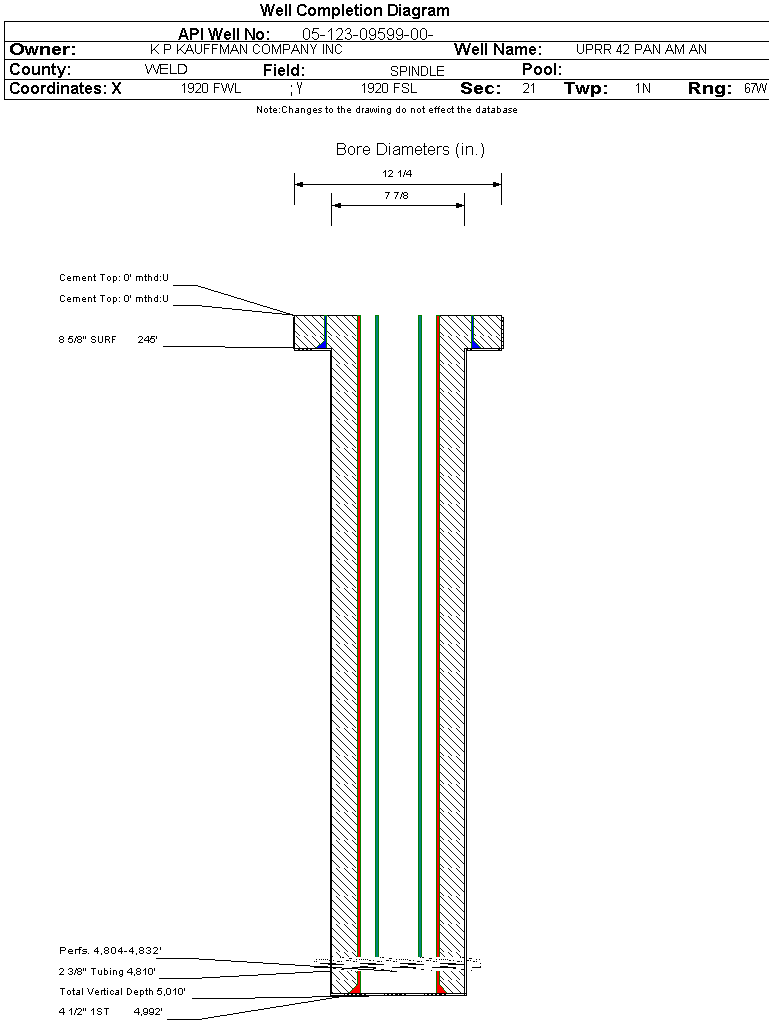

Wellbore Completed
Completion Date:12/6/1978
Spud Date:9/12/1978Spud Date Is:ACTUAL
Measured TD:5010 ft.Measured PB depth:4959 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 245 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4992 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 305, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE700 ft.NN
SUSSEX4804 ft.NN

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 8/1/2023                  Interval Top: 4804 ft.    Interval Bottom: 4832 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/3/1978Choke Size:
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:12/6/1978
Treatment Summary:117,000 GAL 72,000# 20/40 120,000# 10/20 36,000# 10/20
Tubing Size:2.375 in.Tubing Setting Depth:4810 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/6/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 25
CALC_GOR 1400
GRAVITY_OIL 41.9
MCF_GAS 35
Perforation Data:
Interval Top:4804 ft.# Of Holes:
Interval Bottom:4832 ft.Hole Size:0.38 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)681
Total Gas Produced (MCF)102
GOR149
GOR DeterminationBOE
Average BOE per Day1.908
Average MCFE per Day11.070

 Federal Financial Assurance  i

 Tribal Well  i No
