COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09550		Well Classification: OW Status: PR - 3/1/2025
Well Name/No:JILLSON #6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2025
FacilityID:241761LocationID:318629
County:WELD #123Location:SESW 22 2N68W 6
Field:SPINDLE - #77900Elevation:4972 ft.
Planned Location:660FSL  1980 FWLLat/Long: 40.118727 / -104.991766Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.118680 / -104.991670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/1/2025             Measured TD: 5060 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/1/2025
Wellbore Permit
Permit #:19780699 Expiration Date:11/21/1978
Proposed Depth/Form:5050 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:11/2/1978
Spud Date:8/12/1978Spud Date Is:ACTUAL
Measured TD:5060 ft.Measured PB depth:5038 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES - FDC

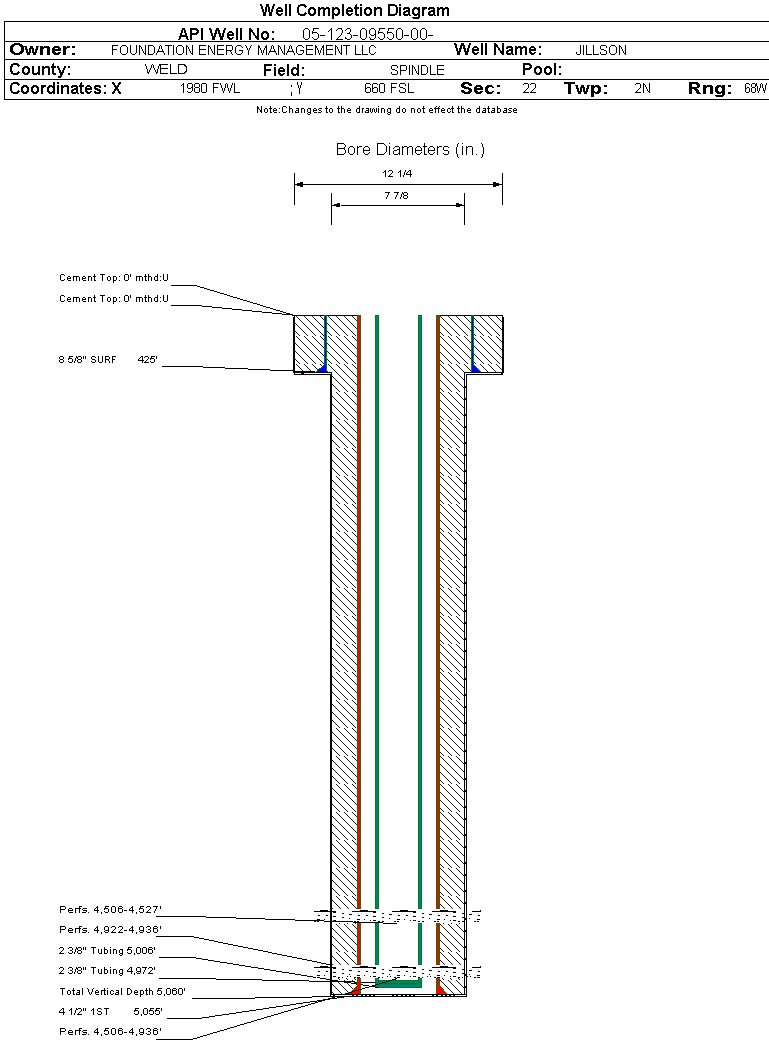

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 425 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 425, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5055 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 325, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4506 ft.NN
SHANNON4920 ft.NN

Formation SNSD                     Formation Classification:  OW                     Status:  CM - 12/18/1978                Interval Top: 4922 ft.    Interval Bottom: 4936 ft.

 Completed Information for Formation SHANNON
1st Production Date:11/2/1978Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/2/1978
Treatment Summary:500 GALS 7.5% MCA, 8,000 GALS 2% KCL, 90,000 GALS SUPER E W/ 180,000# 20-40 SAND & 75,000# 10-20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4972 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/10/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0.1
BBLS_OIL 6
CALC_BBLS_H2O 0.1
CALC_BBLS_OIL 6
CALC_GOR 21000
CALC_MCF_GAS 126
CASING_PRESS 60
GRAVITY_OIL 44
MCF_GAS 126
Perforation Data:
Interval Top:4922 ft.# Of Holes:15
Interval Bottom:4936 ft.Hole Size:0.4 in.

Formation SUSX                     Formation Classification:  OW                     Status:  CM - 12/18/1978                Interval Top: 4506 ft.    Interval Bottom: 4527 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/18/1978Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/2/1978
Treatment Summary:500 GALS 7.5% MCA, 8,000 GALS 2% KCL, 90,000 GALS SUPER E W/ 175,000# 20-40 SAND, 75,000# 10-20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5006 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/16/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0.1
BBLS_OIL 17
CALC_BBLS_H2O 0.1
CALC_BBLS_OIL 17
CALC_GOR 2941
CALC_MCF_GAS 50
CASING_PRESS 60
GRAVITY_OIL 42
MCF_GAS 50
Perforation Data:
Interval Top:4506 ft.# Of Holes:17
Interval Bottom:4527 ft.Hole Size:0.4 in.

Formation SX-SN                   Formation Classification:  OW                   Status:  PR - 3/1/2025                  Interval Top: 4506 ft.    Interval Bottom: 4936 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:11/2/1978Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4506 ft.# Of Holes:32
Interval Bottom:4936 ft.Hole Size:0.4 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)1043
GOR38629
GOR DeterminationMCFE
Average BOE per Day0.563
Average MCFE per Day3.261

 Federal Financial Assurance  i

 Tribal Well  i No
