COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09548		Well Classification: GW Status: PA - 8/30/1983
Well Name/No:L F RANCHES #2-A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:VESSELS OIL & GAS COMPANY - 93200
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/30/1983
FacilityID:241759LocationID:406852
County:WELD #123Location:NWSW 8 2N63W 6
Field:WATTENBERG - #90750Elevation:4840 ft.
Planned Location:1340FSL  990 FWLLat/Long: 40.149349 / -104.467250Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.149349 / -104.467250Lat/Long Source: Field Measured

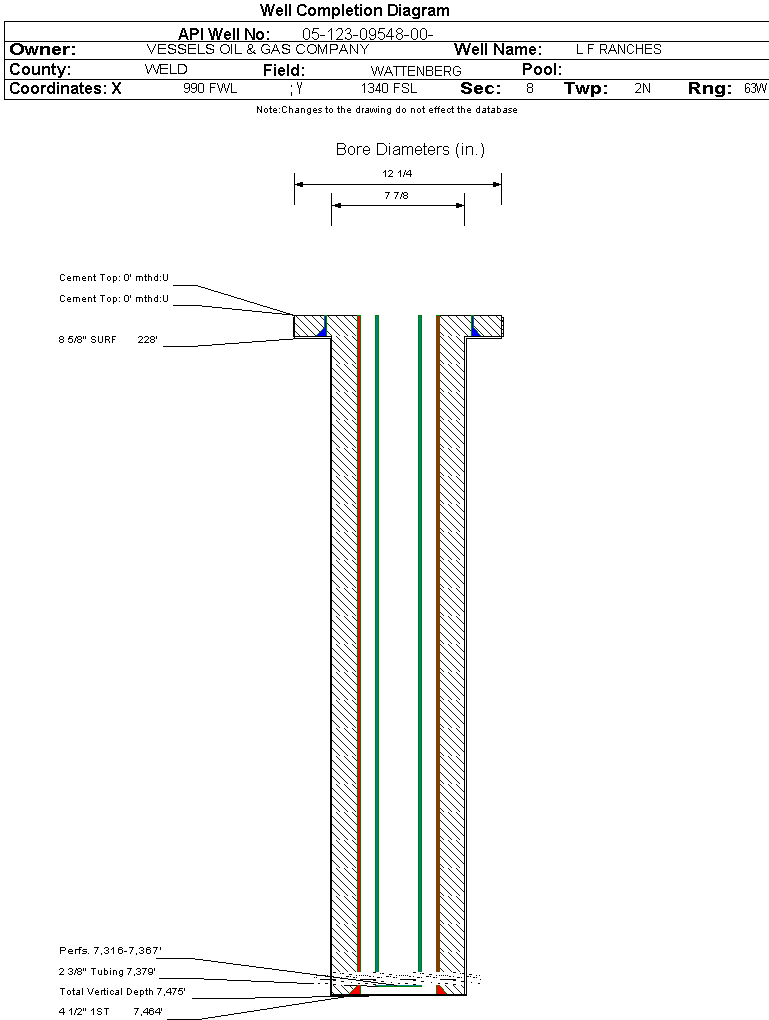

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/30/1983             Measured TD: 7475 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/30/1983
Wellbore Permit
Permit #:19780697 Expiration Date:7/21/1979
Proposed Depth/Form:7400 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:9/17/1978
Spud Date:7/31/1978Spud Date Is:ACTUAL
Measured TD:7475 ft.Measured PB depth:7395 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES - FDC/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 228 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7464 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6204 ft., Bottom: 7464 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6539 ft.
FORT HAYS6682 ft.
TIMPAS6809 ft.
CARLILE6832 ft.
GREENHORN6887 ft.
BENTONITE7128 ft.
D SAND7240 ft.
J SAND7308 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/30/1983                 Interval Top: 7316 ft.    Interval Bottom: 7367 ft.

 Completed Information for Formation J SAND
1st Production Date:9/17/1978Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/17/1978
Treatment Summary:VERSA GEL/CO2 FRAC W/25000 GAL. PAD, 100000 GAL. W/25,000 # MESH SD, 130,000# 20/40 SD., 130,000# 10/20 SD W/500 SCF CO2/BBL @ 25BPM @ 4000 PSI ISIP 3500 PSI
Tubing Size:2.375 in.Tubing Setting Depth:7379 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 170
BBLS_OIL 6
CALC_BBLS_H2O 170
CALC_BBLS_OIL 6
CALC_MCF_GAS 170
CASING_PRESS 200
GRAVITY_OIL 38
MCF_GAS 170
TUBING_PRESS 200
Perforation Data:
Interval Top:7316 ft.# Of Holes:153
Interval Bottom:7367 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/30/1983
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
