COGIS - WELL SCOUT CARD

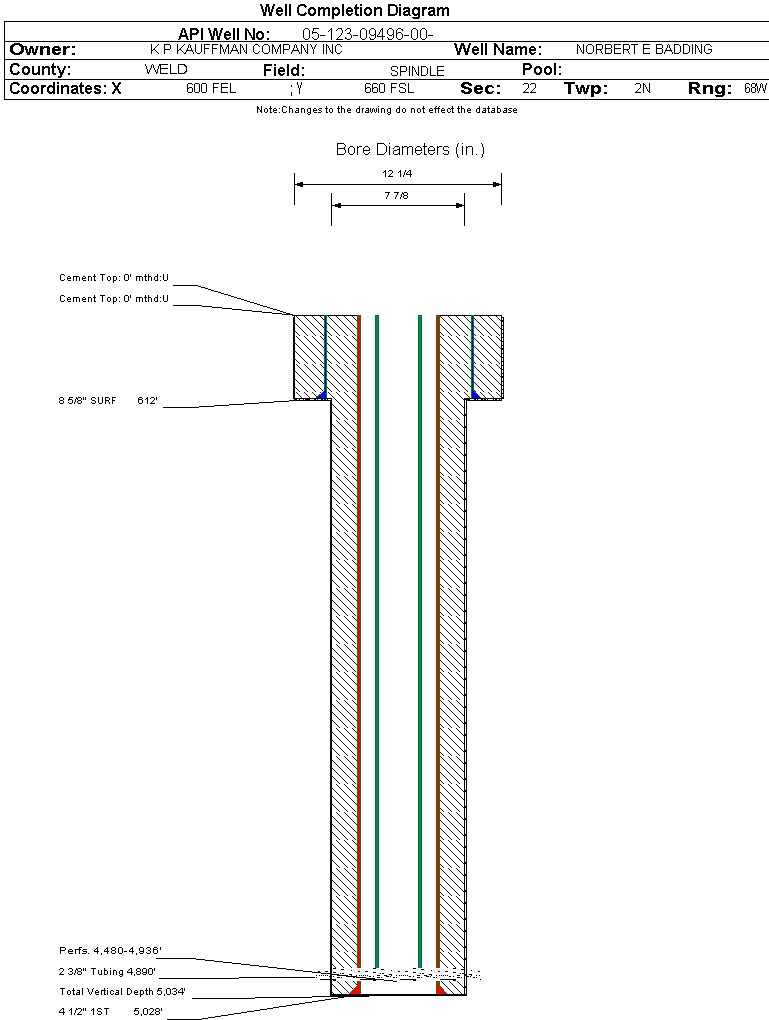

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09496		Well Classification: OW Status: PR - 10/1/2018
Well Name/No:NORBERT E BADDING #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2018
FacilityID:241707LocationID:318605
Municipality/County:FREDERICK / WELD #123Location:SESE 22 2N68W 6
Field:SPINDLE - #77900Elevation:4950 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  600 FELLat/Long: 40.118727 / -104.982076Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.118783 / -104.982002Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 10/1/2018             Measured TD: 5034 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 10/1/2018
Wellbore Permit
Permit #:19780476 Expiration Date:9/30/1978
Proposed Depth/Form:5050 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:11/2/1978
Spud Date:7/24/1978Spud Date Is:ACTUAL
Measured TD:5034 ft.Measured PB depth:4983 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER LOGS
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 612 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5028 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4478 ft.NN
SHANNON4902 ft.NN

Formation SX-SN                   Formation Classification:  OW                   Status:  PR - 10/1/2018                 Interval Top: 4480 ft.    Interval Bottom: 4936 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:10/5/1978Choke Size:0.719 in.
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/2/1978
Treatment Summary:105 GALS; 72,000# 20-40 SAND; 120,000# 10-20 SAND; 36,000# 10-20 SAND EACH SUSX & SNSD
Tubing Size:2.375 in.Tubing Setting Depth:4890 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 35
CALC_BBLS_H2O 15
CALC_BBLS_OIL 35
CALC_GOR 8685
CALC_MCF_GAS 304
GRAVITY_OIL 34.5
MCF_GAS 304
Perforation Data:
Interval Top:4480 ft.# Of Holes:112
Interval Bottom:4936 ft.Hole Size:0.38 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)146
Total Gas Produced (MCF)1213
GOR8308
GOR DeterminationBOE
Average BOE per Day0.968
Average MCFE per Day5.620

 Federal Financial Assurance  i

 Tribal Well  i No
