COGIS - WELL SCOUT CARD

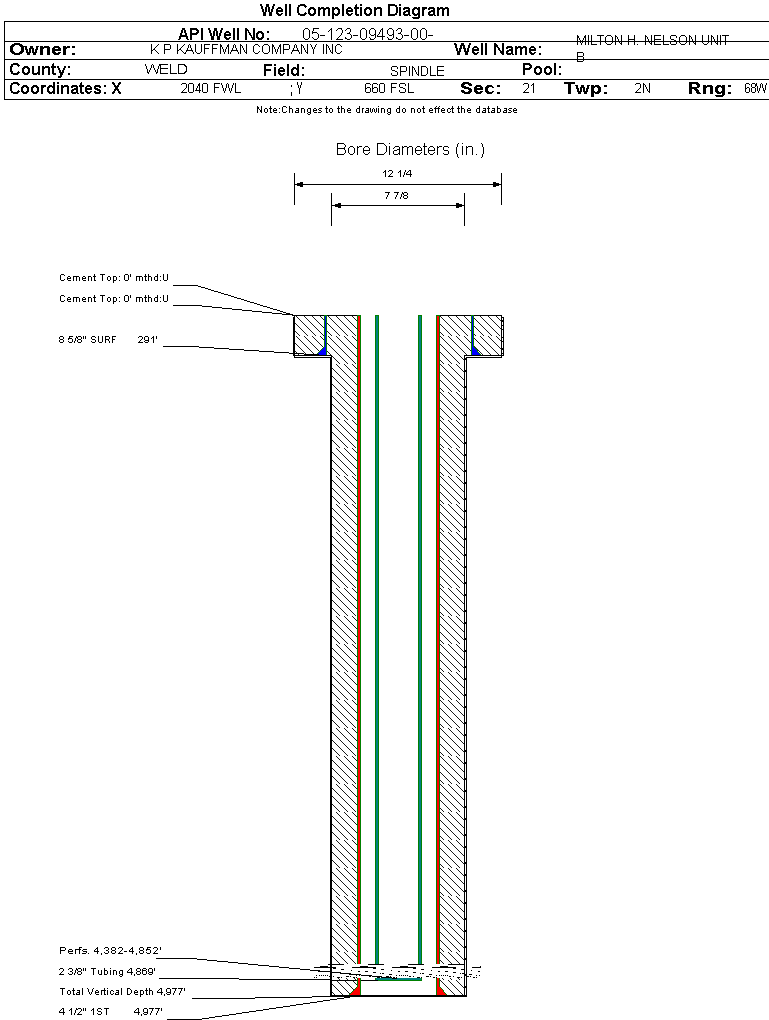

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09493		Well Classification: GW Status: SI - 4/1/2021
Well Name/No:MILTON H. NELSON UNIT B #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date4/1/2021
FacilityID:241704LocationID:336292
Municipality/County:FREDERICK / WELD #123Location:SESW 21 2N68W 6
Field:SPINDLE - #77900Elevation:4904 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  2040 FWLLat/Long: 40.118766 / -105.010507Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.118610 / -105.010640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 4/1/2021             Measured TD: 4977 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 4/1/2021
Wellbore Permit
Permit #:19780453 Expiration Date:9/19/1978
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: 0 , Unit Acreage: 40, Drill Unit: SESW
Wellbore Completed
Completion Date:8/22/1978
Spud Date:6/9/1978Spud Date Is:ACTUAL
Measured TD:4977 ft.Measured PB depth:4934 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 291 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4977 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS360 ft.NN
SUSSEX4277 ft.NN
SHANNON4828 ft.NN

Formation SX-SN                   Formation Classification:  GW                   Status:  SI - 4/1/2021                  Interval Top: 4382 ft.    Interval Bottom: 4852 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:8/8/1978Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/22/1978
Treatment Summary:SUSSEX PERF'D 4382'-4420'. SHANNON PERF'D 4828'-4852'. EMULSIFRAC: 12,000 GALS PAD; 36,000 GALS 72,000# 20-40; 60,000 GALS 120,000# 10-20; 9,000 GALS; 35,000# 10-20
Tubing Size:2.375 in.Tubing Setting Depth:4869 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/8/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 116
CALC_BBLS_H2O 20
CALC_BBLS_OIL 116
CALC_GOR 2327
CALC_MCF_GAS 270
GRAVITY_OIL 44.4
MCF_GAS 270
Perforation Data:
Interval Top:4382 ft.# Of Holes:
Interval Bottom:4852 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
03/31/2021
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
