COGIS - WELL SCOUT CARD

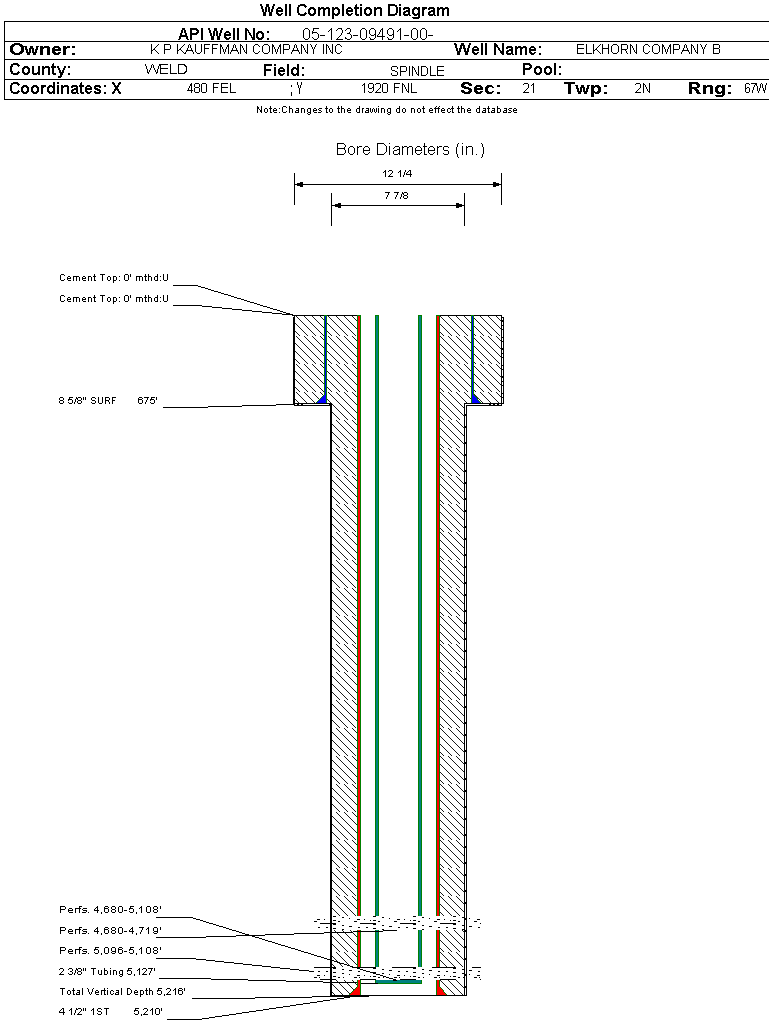

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09491		Well Classification: GW Status: PR - 8/1/2023
Well Name/No:ELKHORN COMPANY B #9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2023
FacilityID:241702LocationID:318601
County:WELD #123Location:SENE 21 2N67W 6
Field:SPINDLE - #77900Elevation:5027 ft.
Planned Location:1920FNL  480 FELLat/Long: 40.125727 / -104.887983Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.125850 / -104.887880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2023             Measured TD: 5216 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2023
Wellbore Permit
Permit #:19780438 Expiration Date:9/16/1978
Proposed Depth/Form:5200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:11/25/1986
Spud Date:5/17/1978Spud Date Is:ACTUAL
Measured TD:5216 ft.Measured PB depth:5161 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 675 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5210 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4526 ft.NN
SHANNON5094 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 11/25/1986                Interval Top: 5096 ft.    Interval Bottom: 5108 ft.

 Completed Information for Formation SHANNON
1st Production Date:6/22/1978Choke Size:0.768 in.
Formation Name:SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/25/1986
Treatment Summary:K-1 FRAC: 58,000 GALS EMULSION; 36,000# 20/40 MESH; 78,000# 10/20 MESH
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/22/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 39
CALC_BBLS_H2O 15
CALC_BBLS_OIL 39
CALC_MCF_GAS 56
GRAVITY_OIL 42.6
MCF_GAS 56
Perforation Data:
Interval Top:5096 ft.# Of Holes:24
Interval Bottom:5108 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 11/25/1986                Interval Top: 4680 ft.    Interval Bottom: 4719 ft.

 Completed Information for Formation SUSSEX
1st Production Date:11/25/1986Choke Size:
Formation Name:SUSSEXCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/25/1986
Treatment Summary:440,500# 16/30 SN, 7,500# 16/30 CRC SN, 962 BLO, 508 BLW, 73 BLW FLUSH
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4680 ft.# Of Holes:156
Interval Bottom:4719 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  PR - 8/1/2023                  Interval Top: 4680 ft.    Interval Bottom: 5108 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:11/25/1986Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/25/1986
Treatment Summary:SEE INDIVIDUAL SNSD AND SUSX COMPLETIONS
Tubing Size:2.375 in.Tubing Setting Depth:5127 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/11/1987Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 12
CALC_BBLS_H2O 5
CALC_BBLS_OIL 12
CALC_GOR 9167
CALC_MCF_GAS 110
GRAVITY_OIL 41.5
MCF_GAS 110
Perforation Data:
Interval Top:4680 ft.# Of Holes:180
Interval Bottom:5108 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)639
Total Gas Produced (MCF)293
GOR458
GOR DeterminationBOE
Average BOE per Day1.884
Average MCFE per Day10.937

 Federal Financial Assurance  i

 Tribal Well  i No
