COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09408		Well Classification: GW Status: PR - 5/1/2024
Well Name/No:STATE OF COLORADO AF #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2024
FacilityID:241619LocationID:333132
County:WELD #123Location:SESW 36 2N67W 6
Field:SPINDLE - #77900Elevation:4899 ft.
Basin:DENVER (DJ) BASIN
Planned Location:590FSL  2080 FWLLat/Long: 40.088968 / -104.841481Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.089015 / -104.841392Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

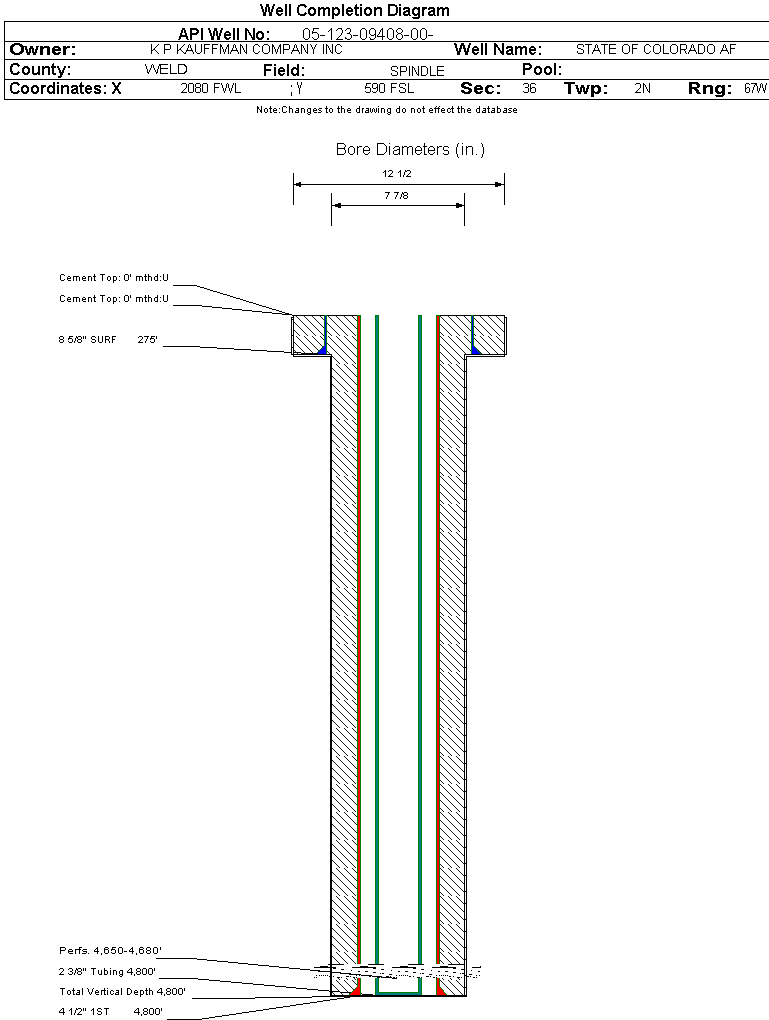

Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2024             Measured TD: 4800 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2024
Wellbore Permit
Permit #:19780127 Expiration Date:6/16/1978
Proposed Depth/Form:4800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:3/23/1978
Spud Date:2/23/1978Spud Date Is:ACTUAL
Measured TD:4800 ft.Measured PB depth:4763 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES - GR CALIPER
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 8.625 in., Top: , Depth: 275 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4800 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE640 ft.NN
SUSSEX4470 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 5/1/2024                  Interval Top: 4650 ft.    Interval Bottom: 4680 ft.

 Completed Information for Formation SUSSEX
1st Production Date:3/23/1978Choke Size:0.468 in.
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:3/23/1978
Treatment Summary:12,000 GALS FLUID; 72,000# 20-40 MESH; 156,000# 10-20 MESH
Tubing Size:2.375 in.Tubing Setting Depth:4800 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/23/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 100
CALC_BBLS_H2O 22
CALC_BBLS_OIL 100
CALC_MCF_GAS 175
GRAVITY_OIL 45.9
MCF_GAS 175
Perforation Data:
Interval Top:4650 ft.# Of Holes:60
Interval Bottom:4680 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)221
GOR
GOR DeterminationMCFE
Average BOE per Day0.098
Average MCFE per Day0.602

 Federal Financial Assurance  i

 Tribal Well  i No
