Wellbore #00 Wellbore Classification: GW Status: AB - 1/7/2025 Measured TD: 8075 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 1/7/2025 | | Wellbore Permit | | | Permit #: | 19771321 | Expiration Date: | 12/15/1978 | | Proposed Depth/Form: | 8075 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2 |
| | |

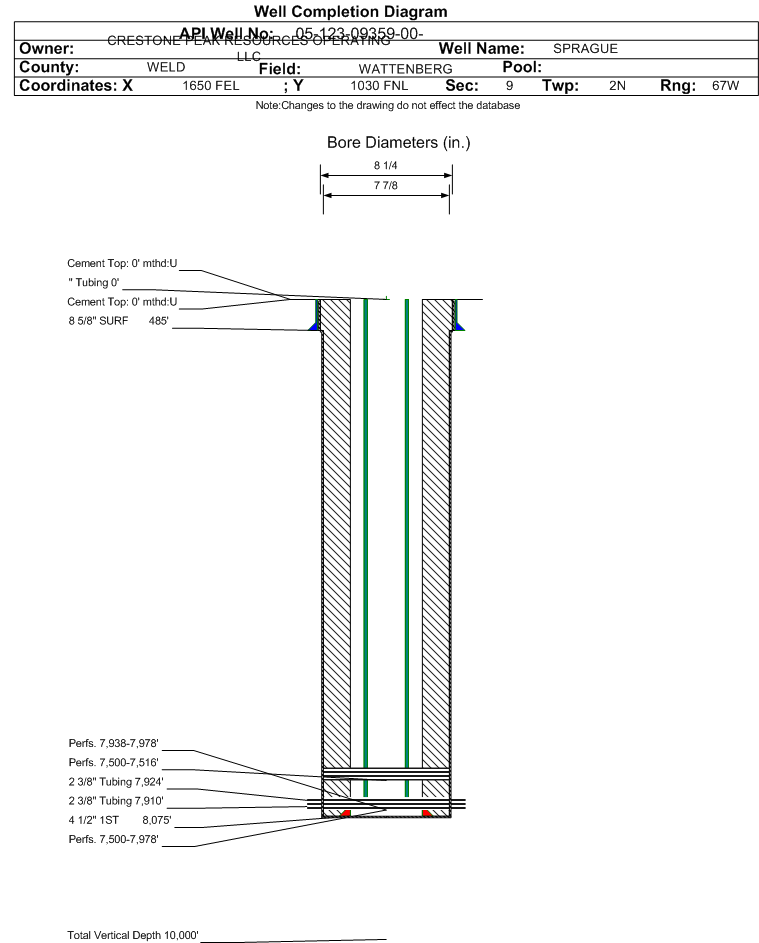

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 2/10/1978 | Spud Date Is: | ACTUAL | | Measured TD: | 8075 ft. | Measured PB depth: | 8050 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL/DENS | | Log Types: | IES & FDC CBL-GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 485 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 485 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 7910 ft., Depth: 8075 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 7035 ft., Bottom: 8075 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 626 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 195, Top: 0 ft., Bottom: 650 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS BASE | 375 ft. | | | | | SUSSEX | 4500 ft. | | | | | SHANNON | 4927 ft. | | | | | NIOBRARA | 7218 ft. | | | | | CODELL | 7500 ft. | | | | | J SAND | 7934 ft. | | | |
Formation JSND Formation Classification: GW Status: AB - 1/7/2025 Interval Top: 7938 ft. Interval Bottom: 7978 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 7/3/1978 | Choke Size: | 0.328 in. | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/7/1996 | | Treatment Summary: | SEE SCAN DOCUMENT |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7924 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/7/1978 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 10 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 120000 | | CALC_MCF_GAS | 1200 | | CASING_PRESS | 580 | | GRAVITY_OIL | 52 | | MCF_GAS | 1200 |
| | Perforation Data: | | Interval Top: | 7938 ft. | # Of Holes: | 15 | | Interval Bottom: | 7978 ft. | Hole Size: | 0.31 in. |
|
Formation CODL Formation Classification: GW Status: AB - 1/7/2025 Interval Top: 7500 ft. Interval Bottom: 7516 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2008 | | Treatment Summary: | CDL RECOMPLETION; SET CBP @7093'. 6/2/08. SET CIBP @7590'. 3/3/08. RE-FRAC CODL W/117,096 GAL FRAC FLUID AND 253,840# SAND. 3/9/2008 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 6 | | BBLS_OIL | 35 | | CALC_BBLS_H2O | 6 | | CALC_BBLS_OIL | 35 | | CALC_GOR | 4629 | | CALC_MCF_GAS | 162 | | MCF_GAS | 162 | | TUBING_PRESS | 180 |
| | Perforation Data: | | Interval Top: | 7500 ft. | # Of Holes: | 80 | | Interval Bottom: | 7516 ft. | Hole Size: | 0.42 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 3/24/2008 Interval Top: 7500 ft. Interval Bottom: 7978 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/1996 | | Treatment Summary: | JSND-CDL COMMINGLE; DRILLED OUT CBP'S TO COMMINGLE J-CDL. 3/16/2008 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7910 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/24/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 1 | | BTU_GAS | 1157 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 39000 | | CALC_MCF_GAS | 39 | | CASING_PRESS | 375 | | GRAVITY_OIL | 51 | | MCF_GAS | 39 | | TUBING_PRESS | 247 |
| | Perforation Data: | | Interval Top: | 7500 ft. | # Of Holes: | 95 | | Interval Bottom: | 7978 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 01/07/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
