COGIS - WELL SCOUT CARD

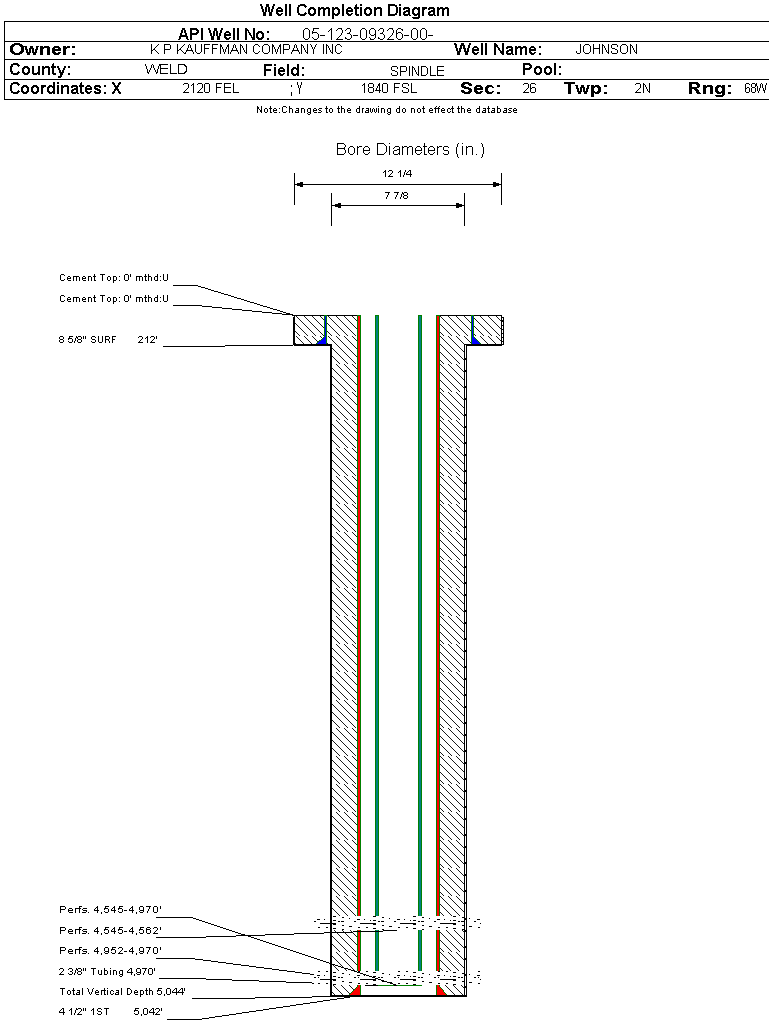

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09326		Well Classification: GW Status: PR - 10/1/2025
Well Name/No:JOHNSON #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2025
FacilityID:241537LocationID:332899
Municipality/County:FREDERICK / WELD #123Location:NWSE 26 2N68W 6
Field:SPINDLE - #77900Elevation:4942 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1840FSL  2120 FELLat/Long: 40.107277 / -104.968665Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107419 / -104.968530Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2025             Measured TD: 5044 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2025
Wellbore Permit
Permit #:19771150 Expiration Date:3/8/1978
Proposed Depth/Form:5036 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit: W2SE4
Wellbore Completed
Completion Date:5/17/1978
Spud Date:11/20/1977Spud Date Is:ACTUAL
Measured TD:5044 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:IES, GR-FDC, PDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 212 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5042 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS740 ft.NN
SUSSEX4540 ft.NN
SHANNON4954 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 7/10/1979                 Interval Top: 4952 ft.    Interval Bottom: 4970 ft.

 Completed Information for Formation SHANNON
1st Production Date:4/8/1978Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:5/17/1978
Treatment Summary:100,000# 20-40 SAND; 82,000# 10-20 SAND; 2,333 BBLS GELLED WATER
Tubing Size:2.375 in.Tubing Setting Depth:4970 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/17/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 48
CALC_BBLS_H2O 0
CALC_BBLS_OIL 48
CALC_GOR 2813
CALC_MCF_GAS 135
CASING_PRESS 50
GRAVITY_OIL 43
MCF_GAS 135
TUBING_PRESS 0
Perforation Data:
Interval Top:4952 ft.# Of Holes:18
Interval Bottom:4970 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 7/10/1979                 Interval Top: 4545 ft.    Interval Bottom: 4562 ft.

 Completed Information for Formation SUSSEX
1st Production Date:5/31/1979Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:5/17/1978
Treatment Summary:55,000 GALS GELLED WATER; 80,000# 20-40 SAND; 100,000# 10-20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/3/1979Test Method:ROD PUMP
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 13
CALC_BBLS_H2O 2
CALC_BBLS_OIL 13
CALC_GOR 3462
CALC_MCF_GAS 45
CASING_PRESS 60
GRAVITY_OIL 47
MCF_GAS 45
TUBING_PRESS 60
Perforation Data:
Interval Top:4545 ft.# Of Holes:18
Interval Bottom:4562 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  PR - 10/1/2025                 Interval Top: 4545 ft.    Interval Bottom: 4970 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:7/10/1979Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4545 ft.# Of Holes:36
Interval Bottom:4970 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
09/2024 - 08/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
