COGIS - WELL SCOUT CARD

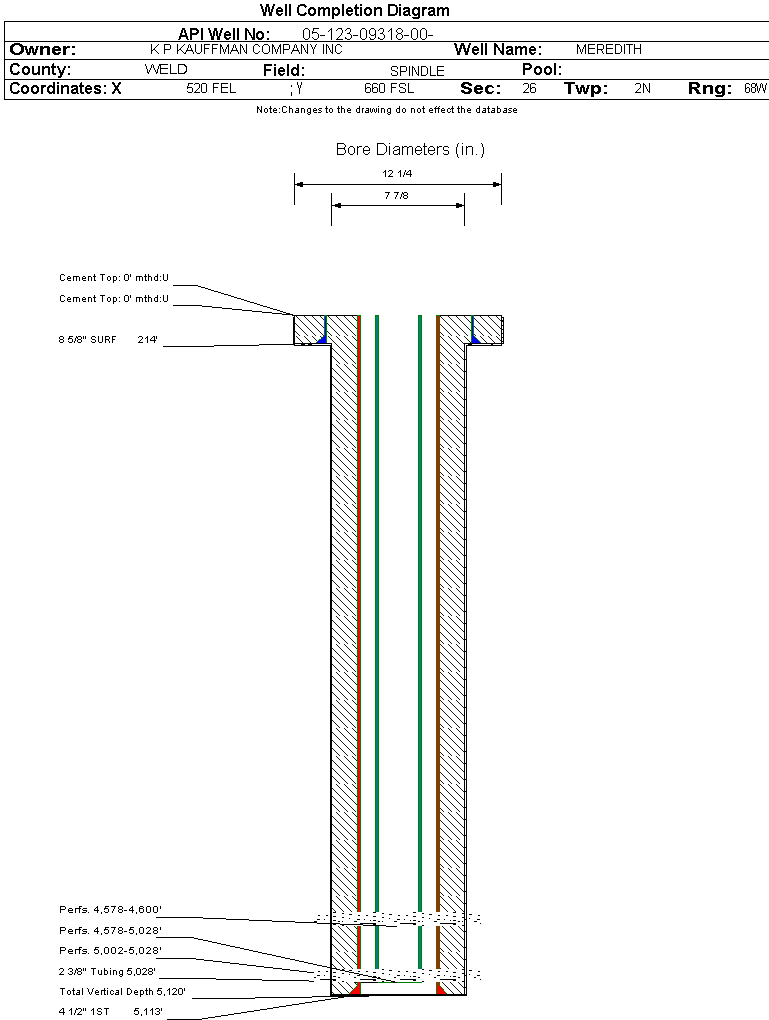

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09318		Well Classification: OW Status: PR - 12/1/2024
Well Name/No:MEREDITH #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2024
FacilityID:241529LocationID:333163
Municipality/County:FREDERICK / WELD #123Location:SESE 26 2N68W 6
Field:SPINDLE - #77900Elevation:4959 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  520 FELLat/Long: 40.103997 / -104.962955Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.104095 / -104.962853Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/1/2024             Measured TD: 5120 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/1/2024
Wellbore Permit
Permit #:19771089 Expiration Date:2/21/1978
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit: E2SE
Wellbore Completed
Completion Date:7/9/1979
Spud Date:11/13/1977Spud Date Is:ACTUAL
Measured TD:5120 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:IES, FDC-GR, PDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 214 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5113 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS800 ft.NN
SUSSEX4576 ft.NN
SHANNON5000 ft.NN

Formation SNSD                     Formation Classification:  OW                     Status:  CM - 7/9/1979                  Interval Top: 5002 ft.    Interval Bottom: 5028 ft.

 Completed Information for Formation SHANNON
1st Production Date:4/9/1978Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/9/1979
Treatment Summary:100,000# 20-40 SAND; 82,000# 10-20 SAND; 2,310 BBLS GELLED WATER
Tubing Size:2.375 in.Tubing Setting Depth:5028 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 41
CALC_BBLS_H2O 10
CALC_BBLS_OIL 41
CALC_GOR 3170
CALC_MCF_GAS 130
CASING_PRESS 50
GRAVITY_OIL 43
MCF_GAS 130
TUBING_PRESS 0
Perforation Data:
Interval Top:5002 ft.# Of Holes:16
Interval Bottom:5028 ft.Hole Size:

Formation SUSX                     Formation Classification:  OW                     Status:  CM - 7/9/1979                  Interval Top: 4578 ft.    Interval Bottom: 4600 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/14/1979Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:7/9/1979
Treatment Summary:60,000 GALS GELLED WATER; 100,000# 20-40 SAND; 67,500# 10-20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/3/1979Test Method:ROD PUMP
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 17
CALC_BBLS_H2O 4
CALC_BBLS_OIL 17
CALC_GOR 2529
CALC_MCF_GAS 43
CASING_PRESS 60
GRAVITY_OIL 47
MCF_GAS 43
TUBING_PRESS 60
Perforation Data:
Interval Top:4578 ft.# Of Holes:20
Interval Bottom:4600 ft.Hole Size:

Formation SX-SN                   Formation Classification:  OW                   Status:  PR - 3/1/2019                  Interval Top: 4578 ft.    Interval Bottom: 5028 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:4/9/1978Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4578 ft.# Of Holes:36
Interval Bottom:5028 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)175
Total Gas Produced (MCF)531
GOR3034
GOR DeterminationBOE
Average BOE per Day0.730
Average MCFE per Day4.220

 Federal Financial Assurance  i

 Tribal Well  i No
