COGIS - WELL SCOUT CARD

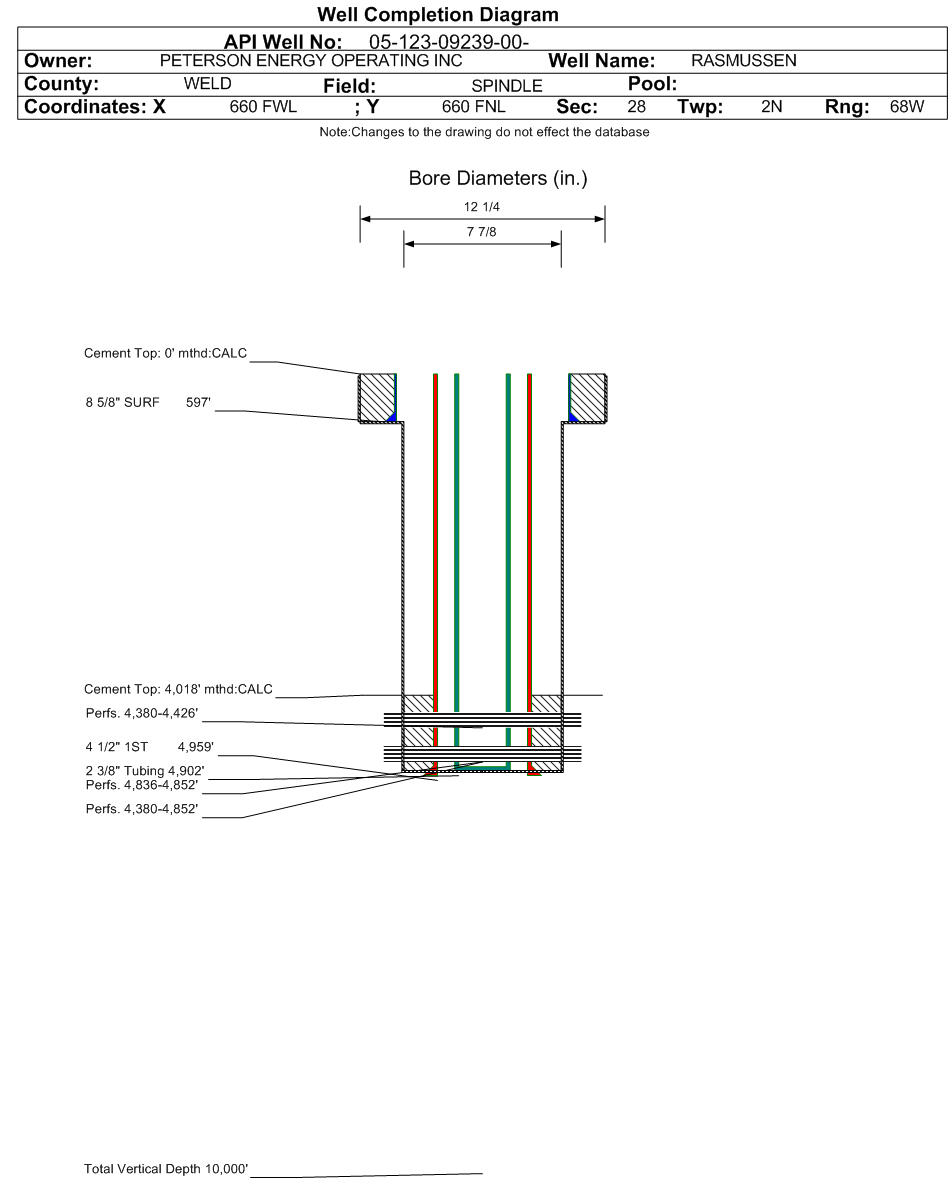

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09239		Well Classification: GW Status: PA - 12/3/2019
Well Name/No:RASMUSSEN #4A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PETERSON ENERGY OPERATING INC - 68710
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/3/2019
FacilityID:241450LocationID:318515
County:WELD #123Location:NWNW 28 2N68W 6
Field:SPINDLE - #77900Elevation:4908 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  660 FWLLat/Long: 40.115157 / -105.015447Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.115060 / -105.015111Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/3/2019             Measured TD: 4960 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/3/2019
Wellbore Permit
Permit #:19770563 Expiration Date:10/13/1977
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:12/7/1977Spud Date Is:ACTUAL
Measured TD:4960 ft.Measured PB depth:4928 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES-FDC/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 597 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 425, Top: 0 ft., Bottom: 597 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4959 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 270, Top: 4018 ft., Bottom: 4959 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4190 ft.NN
SHANNON4834 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 8/8/1980                  Interval Top: 4836 ft.    Interval Bottom: 4852 ft.

 Completed Information for Formation SHANNON
1st Production Date:1/11/1978Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:1/11/1978
Treatment Summary:62,500 GALS GEL WATER W/ 130,000# 20/40 SAND & 5,000# 10/20 SAND @ 25 BPM @ 1000 PSI ISIP 700 PSI
Tubing Size:2.375 in.Tubing Setting Depth:4902 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/18/1978Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 17.5
BBLS_OIL 70
CALC_BBLS_H2O 17.5
CALC_BBLS_OIL 70
CALC_GOR 2857
CALC_MCF_GAS 200
CASING_PRESS 125
GRAVITY_OIL 40
MCF_GAS 200
TUBING_PRESS 35
Perforation Data:
Interval Top:4836 ft.# Of Holes:32
Interval Bottom:4852 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 8/8/1980                  Interval Top: 4380 ft.    Interval Bottom: 4426 ft.

 Completed Information for Formation SUSSEX
1st Production Date:10/22/1979Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/22/1979
Treatment Summary:ACIDIZED W/ 1,000 GALS 7.5% MCA IN 2 STAGES W/ 35 BALL SEALERS BETWEEN STAGES: BREAKDOWN PRESS 2,000 PSI, AVG. TREATING PRESSURE 800 PSI @ 6 BPM, ISIP 300 PSI. GEL WATER FRAC W/ 138,000 GALS, 224,000# SAND @ 25 BPM @ 1000 PSI, ISIP 600 PSI
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/1979Test Method:PUMPING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 27
CALC_BBLS_OIL 75
CALC_MCF_GAS 354
Perforation Data:
Interval Top:4380 ft.# Of Holes:60
Interval Bottom:4426 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  AB - 12/3/2019                 Interval Top: 4380 ft.    Interval Bottom: 4852 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:8/8/1980Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4380 ft.# Of Holes:92
Interval Bottom:4852 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/03/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
