COGIS - WELL SCOUT CARD

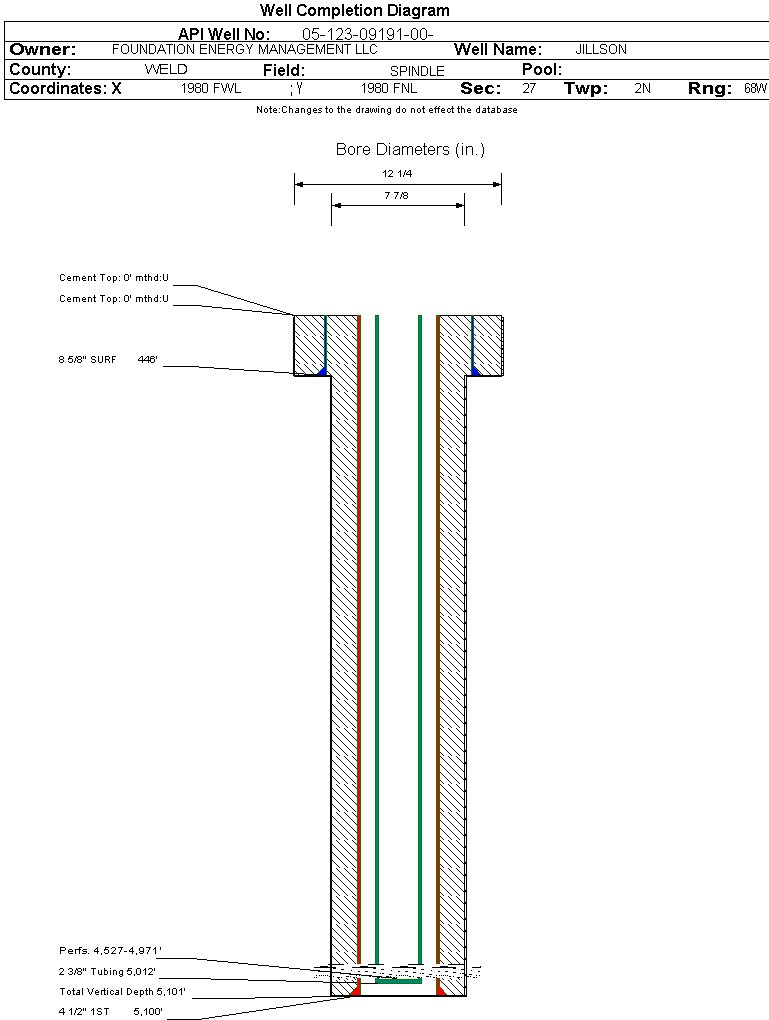

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09191		Well Classification: OW Status: PR - 10/1/2018
Well Name/No:JILLSON #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2018
FacilityID:241402LocationID:311315
Municipality/County:FREDERICK / WELD #123Location:SENW 27 2N68W 6
Field:SPINDLE - #77900Elevation:4970 ft.
Planned Location:1980FNL  1980 FWLLat/Long: 40.111477 / -104.991786Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.111230 / -104.991700Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 10/1/2018             Measured TD: 5101 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 10/1/2018
Wellbore Permit
Permit #:19770363 Expiration Date:8/22/1977
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:7/8/1977
Spud Date:5/9/1977Spud Date Is:ACTUAL
Measured TD:5101 ft.Measured PB depth:5054 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES & FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 446 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5100 ft., Weight: 11.6,10.5, Citings Type: ACTUAL
Cement:Sacks: 400, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE190 ft.NN
SUSSEX4524 ft.NN
SHANNON4952 ft.NN

Formation SX-SN                   Formation Classification:  OW                   Status:  PR - 10/1/2018                 Interval Top: 4527 ft.    Interval Bottom: 4971 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:7/8/1977Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/8/1977
Treatment Summary:4527'-4546' (SUSX): 91,500 GALS SUPER E W/ 180,000# 20-40 SAND & 60,000# 10-20 SAND. 4957'-4971' (SNSD): 94,200 GALS SUPER E EMULSION W/ 180,000# 20-40 SAND & 75,000# 10-20 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5012 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/14/1977Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0.1
BBLS_OIL 70
CALC_BBLS_H2O 0.1
CALC_BBLS_OIL 70
CALC_GOR 2200
CALC_MCF_GAS 154
CASING_PRESS 55
GRAVITY_OIL 42
MCF_GAS 154
Perforation Data:
Interval Top:4527 ft.# Of Holes:50
Interval Bottom:4971 ft.Hole Size:0.4 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)5
Total Gas Produced (MCF)1043
GOR208600
GOR DeterminationMCFE
Average BOE per Day0.503
Average MCFE per Day2.916

 Federal Financial Assurance  i

 Tribal Well  i No
