COGIS - WELL SCOUT CARD

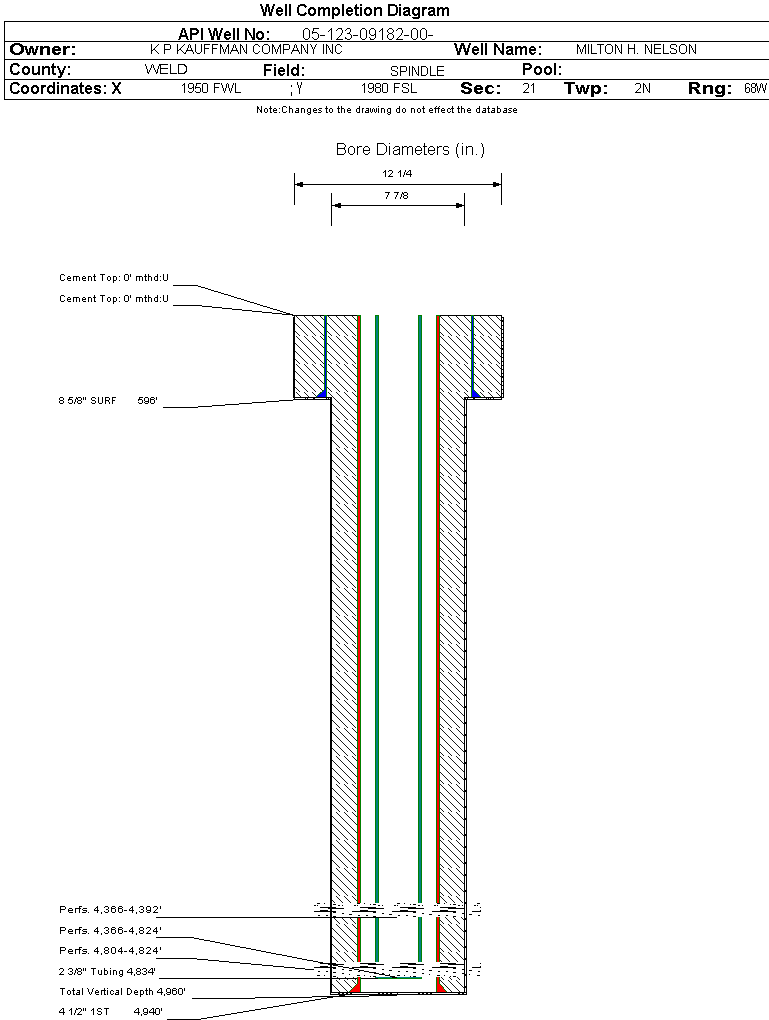

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09182		Well Classification: OW Status: SI - 5/1/2021
Well Name/No:MILTON H. NELSON #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2021
FacilityID:241393LocationID:336214
Municipality/County:FREDERICK / WELD #123Location:NESW 21 2N68W 6
Field:SPINDLE - #77900Elevation:4904 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1950 FWLLat/Long: 40.122386 / -105.010787Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.122380 / -105.010600Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 5/1/2021             Measured TD: 4960 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 5/1/2021
Wellbore Permit
Permit #:19770327 Expiration Date:8/14/1977
Proposed Depth/Form:4950 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:8/9/1977
Spud Date:4/18/1977Spud Date Is:ACTUAL
Measured TD:4960 ft.Measured PB depth:4897 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR W/ CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 596 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4940 ft., Weight: 10.5,11 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE130 ft.NN
SUSSEX4364 ft.NN
SHANNON4800 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 7/16/1977                 Interval Top: 4804 ft.    Interval Bottom: 4824 ft.

 Completed Information for Formation SHANNON
1st Production Date:7/16/1977Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/9/1977
Treatment Summary:121,000 GALS FLUID; 72,000# 20-40 SAND, 156,000# 10-20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/9/1977Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 13
CALC_BBLS_H2O 3
CALC_BBLS_OIL 13
CALC_MCF_GAS 180
GRAVITY_OIL 43.8
MCF_GAS 180
Perforation Data:
Interval Top:4804 ft.# Of Holes:40
Interval Bottom:4824 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 7/16/1977                 Interval Top: 4366 ft.    Interval Bottom: 4392 ft.

 Completed Information for Formation SUSSEX
1st Production Date:7/16/1977Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/9/1977
Treatment Summary:121,000 GALS FLUID; 72,000# 20-40 SAND, 156,000# 10-20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/9/1977Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 50
CALC_BBLS_H2O 10
CALC_BBLS_OIL 50
CALC_MCF_GAS 288
GRAVITY_OIL 43.7
MCF_GAS 288
Perforation Data:
Interval Top:4366 ft.# Of Holes:52
Interval Bottom:4392 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  SI - 5/1/2021                  Interval Top: 4366 ft.    Interval Bottom: 4824 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:7/16/1977Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4834 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4366 ft.# Of Holes:92
Interval Bottom:4824 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2021
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
