COGIS - WELL SCOUT CARD

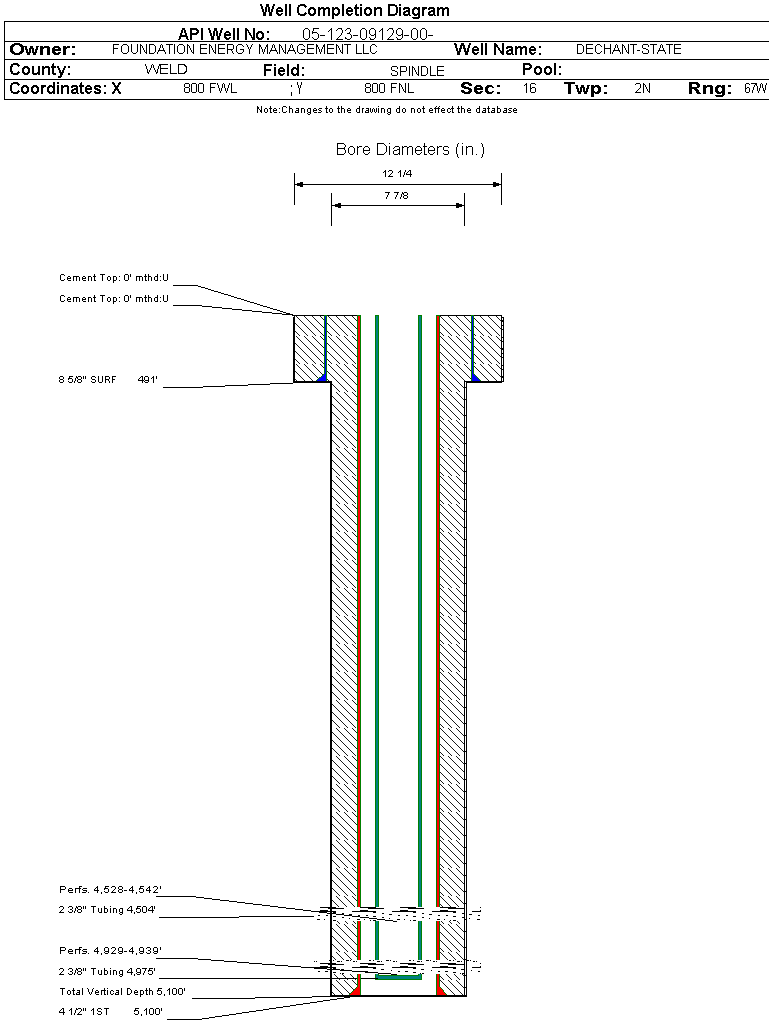

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09129		Well Classification: GW Status: PR - 10/1/2024
Well Name/No:DECHANT-STATE #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:72-3317
Facility Status:PRStatus Date10/1/2024
FacilityID:241340LocationID:318465
County:WELD #123Location:NWNW 16 2N67W 6
Field:SPINDLE - #77900Elevation:4957 ft.
Planned Location:800FNL  800 FWLLat/Long: 40.143287 / -104.902104Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.143450 / -104.901930Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2024             Measured TD: 5100 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2024
Wellbore Permit
Permit #:19770147 Expiration Date:6/22/1977
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:9/24/1985
Spud Date:2/26/1977Spud Date Is:ACTUAL
Measured TD:5100 ft.Measured PB depth:4915 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES; FDC-GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 491 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5100 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 385, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4490 ft.NN
SHANNON4925 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 11/6/1996                 Interval Top: 4929 ft.    Interval Bottom: 4939 ft.

 Completed Information for Formation SHANNON
1st Production Date:5/4/1977Choke Size:
Formation Name:SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/24/1985
Treatment Summary:4929'-4939': 80,000 GALS K-1 FRAC FLUID, 55,000# 100 MESH, 90,000# 20/40/MESH, AND 110,000# MESH SAND
Tubing Size:2.375 in.Tubing Setting Depth:4975 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/5/1977Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 108
CALC_BBLS_H2O 0
CALC_BBLS_OIL 108
CALC_GOR 1194
CALC_MCF_GAS 129
GRAVITY_OIL 40
MCF_GAS 129
Perforation Data:
Interval Top:4929 ft.# Of Holes:20
Interval Bottom:4939 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 11/6/1996                 Interval Top: 4528 ft.    Interval Bottom: 4542 ft.

 Completed Information for Formation SUSSEX
1st Production Date:10/17/1985Choke Size:
Formation Name:SUSSEXCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/24/1985
Treatment Summary:4528'-4542': FRAC DOWN CSG AS PER PROGNOSIS @ 20 BPM @ 1200# W/ 79,000 GALS GWX-07 130,000# 20/40 & 57,000# 10/20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4504 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/15/1985Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 38
BBLS_OIL 2
MCF_GAS 14
Perforation Data:
Interval Top:4528 ft.# Of Holes:30
Interval Bottom:4542 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  PR - 10/1/2024

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:10/17/1985Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
No Perforation Data was found for formation SX-SN.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day0.003
Average MCFE per Day0.016

 Federal Financial Assurance  i

 Tribal Well  i No
