COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09036		Well Classification: OW Status: PR - 5/1/2024
Well Name/No:MATHISEN UNIT A #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2024
FacilityID:241248LocationID:318409
County:WELD #123Location:SESE 11 1N67W 6
Field:SPINDLE - #77900Elevation:4971 ft.
Basin:DENVER (DJ) BASIN
Planned Location:700FSL  470 FELLat/Long: 40.060208 / -104.850291Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.060290 / -104.850220Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/1/2024             Measured TD: 4850 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/1/2024
Wellbore Permit
Permit #:19761235 Expiration Date:11/23/1977
Proposed Depth/Form:4800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: S2SE
Wellbore Completed
Completion Date:1/7/1977
Spud Date:11/15/1976Spud Date Is:ACTUAL
Measured TD:4850 ft.Measured PB depth:4798 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER LOG

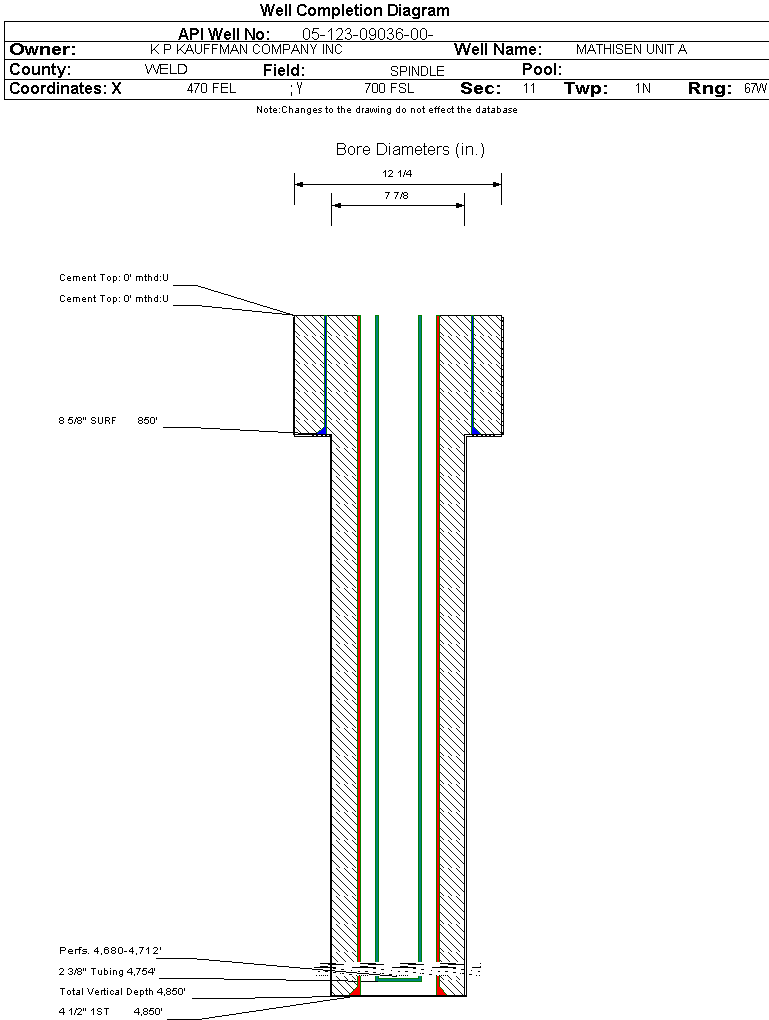

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 850 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4850 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE700 ft.
SUSSEX4680 ft.

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 5/1/2024                  Interval Top: 4680 ft.    Interval Bottom: 4712 ft.

 Completed Information for Formation SUSSEX
1st Production Date:10/1/1991Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4754 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/7/1977Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 60
CALC_BBLS_H2O 3
CALC_BBLS_OIL 60
CALC_GOR 5467
CALC_MCF_GAS 328
MCF_GAS 328
Perforation Data:
Interval Top:4680 ft.# Of Holes:
Interval Bottom:4712 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)32
Total Gas Produced (MCF)125
GOR3906
GOR DeterminationBOE
Average BOE per Day0.148
Average MCFE per Day0.853

 Federal Financial Assurance  i

 Tribal Well  i No
