COGIS - WELL SCOUT CARD

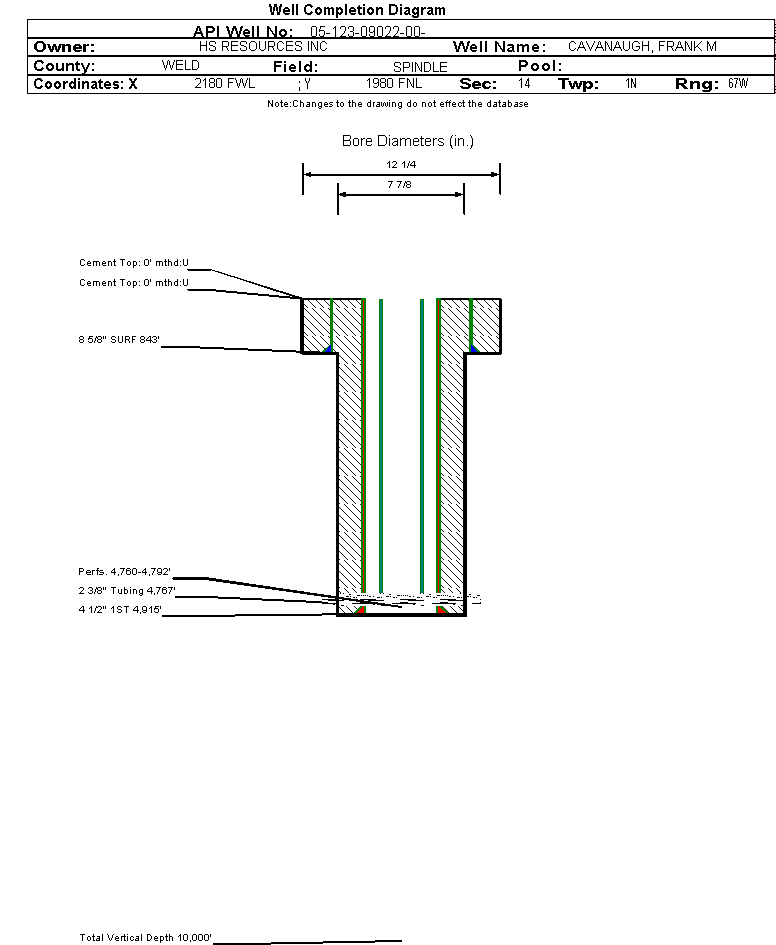

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09022		Well Classification: GW Status: PR - 10/1/2025
Well Name/No:CAVANAUGH, FRANK M #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2025
FacilityID:241234LocationID:318404
County:WELD #123Location:SENW 14 1N67W 6
Field:SPINDLE - #77900Elevation:5007 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  2180 FWLLat/Long: 40.052798 / -104.859611Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.052985 / -104.859591Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2025             Measured TD: 4925 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2025
Wellbore Permit
Permit #:19791188 Expiration Date:3/19/1977
Proposed Depth/Form:4850 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: S2NW
Wellbore Completed
Completion Date:12/30/1976
Spud Date:11/10/1976Spud Date Is:ACTUAL
Measured TD:4925 ft.Measured PB depth:4870 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-GR W/CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 843 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4915 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE700 ft.NN
SUSSEX4760 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 10/1/2025                 Interval Top: 4760 ft.    Interval Bottom: 4792 ft.

 Completed Information for Formation SUSSEX
1st Production Date:11/30/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:12/30/1976
Treatment Summary:121,000 GAL FLUID 72,000# 20/40 SN 156,000# 10/20 SN
Tubing Size:2.375 in.Tubing Setting Depth:4767 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/30/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 105
GRAVITY_OIL 43.3
MCF_GAS 158
Perforation Data:
Interval Top:4760 ft.# Of Holes:
Interval Bottom:4792 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
