COGIS - WELL SCOUT CARD

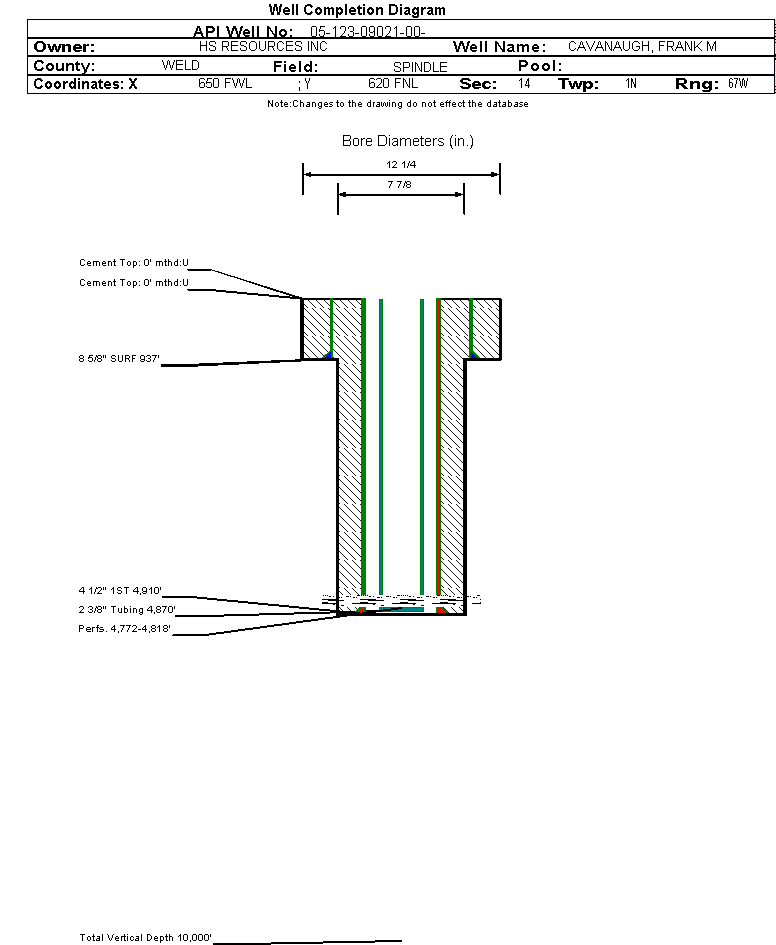

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-09021		Well Classification: GW Status: PR - 5/1/2024
Well Name/No:CAVANAUGH, FRANK M #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2024
FacilityID:241233LocationID:318403
County:WELD #123Location:NWNW 14 1N67W 6
Field:SPINDLE - #77900Elevation:5028 ft.
Basin:DENVER (DJ) BASIN
Planned Location:620FNL  650 FWLLat/Long: 40.056508 / -104.865092Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.056530 / -104.864980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2024             Measured TD: 4910 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2024
Wellbore PermitDRIFTED
Permit #:19761187 Expiration Date:3/19/1977
Proposed Depth/Form:4900 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2NW
Wellbore Completed
Completion Date:1/7/1977
Spud Date:10/30/1976Spud Date Is:ACTUAL
Measured TD:4910 ft.Measured PB depth:4875 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 937 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4910 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE740 ft.NN
SUSSEX4770 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 5/1/2024                  Interval Top: 4772 ft.    Interval Bottom: 4818 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/9/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:1/7/1977
Treatment Summary:12,000 GALLONS PAD 72,000# 20/40 SAND 156,000# 10/20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4870 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/7/1977Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 90
GRAVITY_OIL 43.7
MCF_GAS 115
Perforation Data:
Interval Top:4772 ft.# Of Holes:
Interval Bottom:4818 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)62
Total Gas Produced (MCF)244
GOR3935
GOR DeterminationBOE
Average BOE per Day0.278
Average MCFE per Day1.649

 Federal Financial Assurance  i

 Tribal Well  i No
