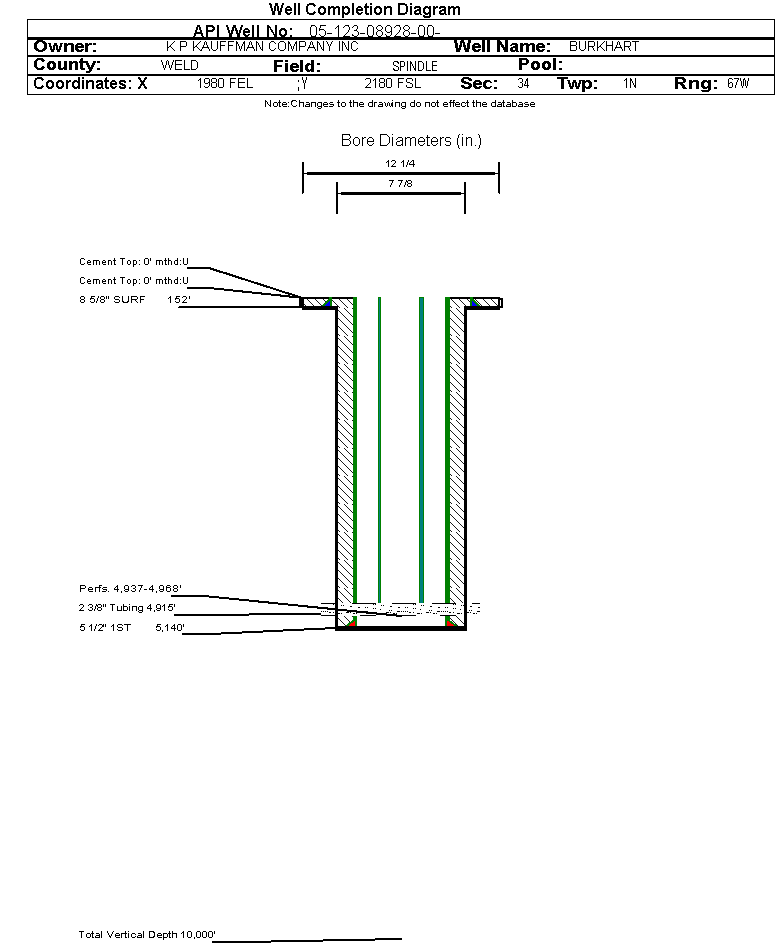

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08928		Well Classification: GW Status: PR - 9/1/2025
Well Name/No:BURKHART #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2025
FacilityID:241140LocationID:318342
County:WELD #123Location:NWSE 34 1N67W 6
Field:SPINDLE - #77900Elevation:5051 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2180FSL  1980 FELLat/Long: 40.006389 / -104.874322Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.005600 / -104.874400Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2025             Measured TD: 5150 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2025
Wellbore Permit
Permit #:19760934 Expiration Date:1/30/1977
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: W2SE
Wellbore Completed
Completion Date:8/23/1976
Spud Date:8/8/1976Spud Date Is:ACTUAL
Measured TD:5150 ft.Measured PB depth:5100 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES-FDC/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 152 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5140 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4765 ft.
BENTONITE5023 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 9/1/2025                  Interval Top: 4937 ft.    Interval Bottom: 4968 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/23/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/23/1976
Treatment Summary:111,000 GAL SUPER E W/60,000# 20/40 SD, 148,000# 10/20 SD & 4000# 8/12 GB AT 2000 PSI AT 20 BPM, ISIP 3000 PSI
Tubing Size:2.375 in.Tubing Setting Depth:4915 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/7/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 38
BBLS_OIL 57
CALC_GOR 614
GRAVITY_OIL 39
MCF_GAS 35
Perforation Data:
Interval Top:4937 ft.# Of Holes:
Interval Bottom:4968 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)2
GOR142
GOR DeterminationBOE
Average BOE per Day0.039
Average MCFE per Day0.231

 Federal Financial Assurance  i

 Tribal Well  i No
