COGIS - WELL SCOUT CARD

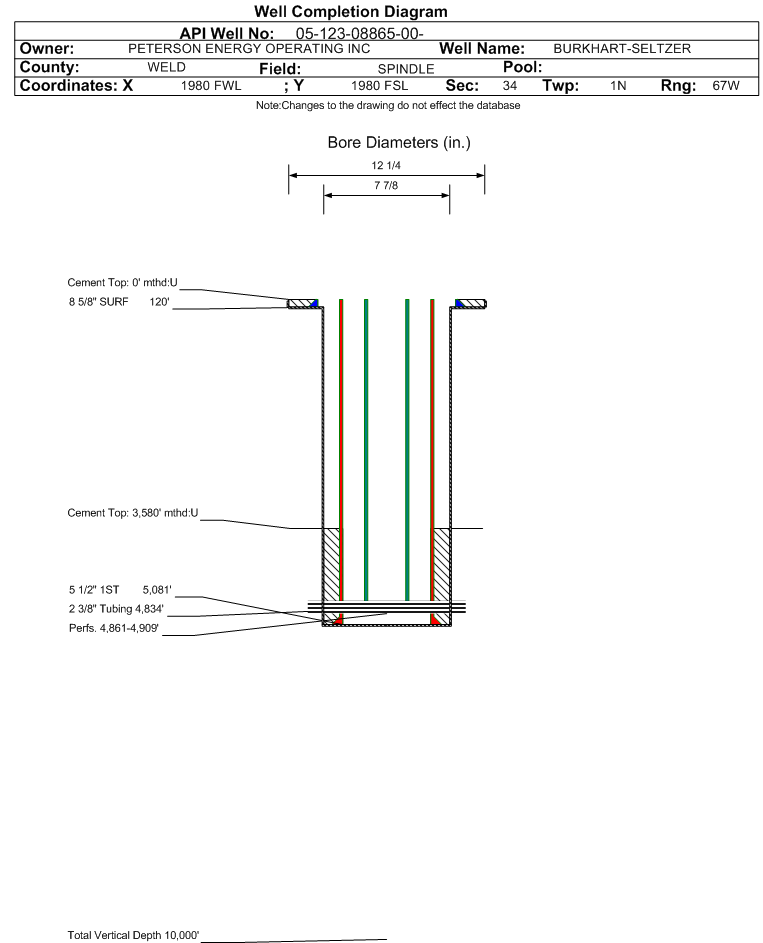

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08865		Well Classification: OW Status: PA - 3/8/2010
Well Name/No:BURKHART-SELTZER #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PETERSON ENERGY OPERATING INC - 68710
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/8/2010
FacilityID:241077LocationID:335660
County:WELD #123Location:NESW 34 1N67W 6
Field:SPINDLE - #77900Elevation:5060 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1980 FWLLat/Long: 40.005839 / -104.878892Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.005942 / -104.878951Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 3/8/2010             Measured TD: 5125 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 3/8/2010
Wellbore Permit
Permit #:19760794 Expiration Date:12/30/1976
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:9/30/1976
Spud Date:8/29/1976Spud Date Is:ACTUAL
Measured TD:5125 ft.Measured PB depth:5040 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES - FDC/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 120 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 120 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5081 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 3580 ft., Bottom: 5081 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4688 ft.
BENTONITE5058 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 3/8/2010                  Interval Top: 4861 ft.    Interval Bottom: 4909 ft.

 Completed Information for Formation SUSSEX
1st Production Date:9/30/1976Choke Size:0.375 in.
Formation Name:SUSSEXCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1976
Treatment Summary:GEL WTR FRAC W/70,000 GAL W/40,000# 20/40 SD, 110,000# 10/20 SD AT 38 BPM AT 2800 PSI ISIP 1200 PSI
Tubing Size:2.375 in.Tubing Setting Depth:4834 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/6/1976Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 96
CALC_GOR 1220
CASING_PRESS 430
GRAVITY_OIL 40
MCF_GAS 140
TUBING_PRESS 100
Perforation Data:
Interval Top:4861 ft.# Of Holes:
Interval Bottom:4909 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/08/2010
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
