Wellbore #00 Wellbore Classification: GW Status: PA - 10/3/2018 Measured TD: 7914 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 10/3/2018 | | Wellbore Permit | | | Permit #: | 760774 | Expiration Date: | 12/26/1976 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2 |
| | |

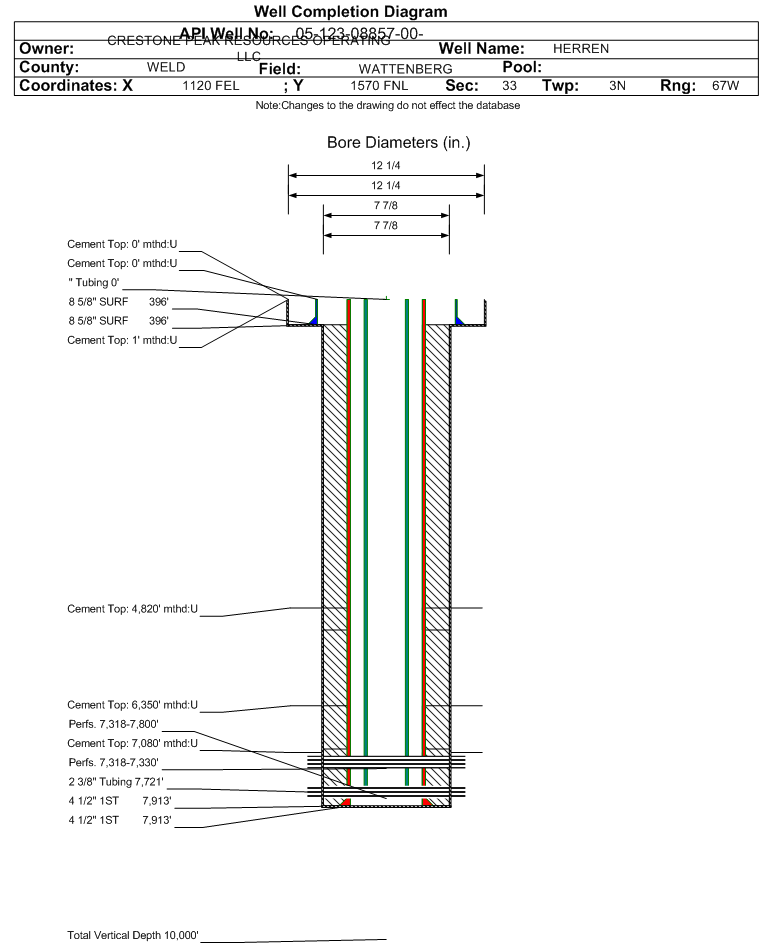

| Wellbore Completed | | Completion Date: | 9/5/1976 | | Spud Date: | 8/28/1976 | Spud Date Is: | ACTUAL | | Measured TD: | 7914 ft. | Measured PB depth: | 7870 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 396 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 396 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 396 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 300, Top: 1 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7913 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 7080 ft., Bottom: 7913 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7913 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7025 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 6350 ft., Bottom: 7025 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 4820 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 4820 ft., Bottom: 5164 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.3, Hole Size: , Size: , Top: , Depth: 3578 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 3578 ft., Bottom: 4010 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS BASE | 200 ft. | | | | | SUSSEX | 4321 ft. | | | | | SHANNON | 4744 ft. | | | | | NIOBRARA | 7030 ft. | | | | | CODELL | 7316 ft. | | | | | J SAND | 7751 ft. | | | |
Formation JSND Formation Classification: GW Status: AB - 10/3/2018 Interval Top: 7751 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 3/15/1977 | Choke Size: | 2,264.000 in. | | Formation Name: | J SAND | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | No Perforation Data was found for formation JSND. |
|
Formation CODL Formation Classification: GW Status: AB - 10/3/2018 Interval Top: 7318 ft. Interval Bottom: 7330 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/29/2009 | | Treatment Summary: | NIO-CDL REFRAC AND RECOMPLETE. SET RBP @7400' 01-26-09. RE-FRAC'D THE CODELL WITH 103,236 GAL 24# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,400# SAND. 01/29/09. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7318 ft. | # Of Holes: | 45 | | Interval Bottom: | 7330 ft. | Hole Size: | 0.42 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 3/1/2009 Interval Top: 7318 ft. Interval Bottom: 7800 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/15/1977 | | Treatment Summary: | JSND-CDL COMMINGLE. RELEASE RBP @ 7400' TO COMMINGLE THE JSND-CDL. 02/18/09. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7721 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/1/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 25 | | BTU_GAS | 1228 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 25 | | CALC_GOR | 2520 | | CALC_MCF_GAS | 63 | | CASING_PRESS | 464 | | GRAVITY_OIL | 60 | | MCF_GAS | 63 | | TUBING_PRESS | 384 |
| | Perforation Data: | | Interval Top: | 7318 ft. | # Of Holes: | 60 | | Interval Bottom: | 7800 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/03/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
