COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08840		Well Classification: GW Status: PR - 3/20/1995
Well Name/No:ROCKY MOUNTAIN FUEL B #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/20/1995
FacilityID:241052LocationID:318295
County:WELD #123Location:NWNE 9 1N67W 6
Field:SPINDLE - #77900Elevation:4985 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1930 FELLat/Long: 40.070748 / -104.893263Lat/Long Source: Calculated From Footages
As Drilled Location:690 FNL  1928 FELLat/Long: 40.070880 / -104.893190Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/20/1995             Measured TD: 4855 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/20/1995
Wellbore Permit
Permit #:19760702 Expiration Date:12/9/1976
Proposed Depth/Form:4825 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:10/1/1976
Spud Date:8/14/1976Spud Date Is:ACTUAL
Measured TD:4855 ft.Measured PB depth:4787 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER

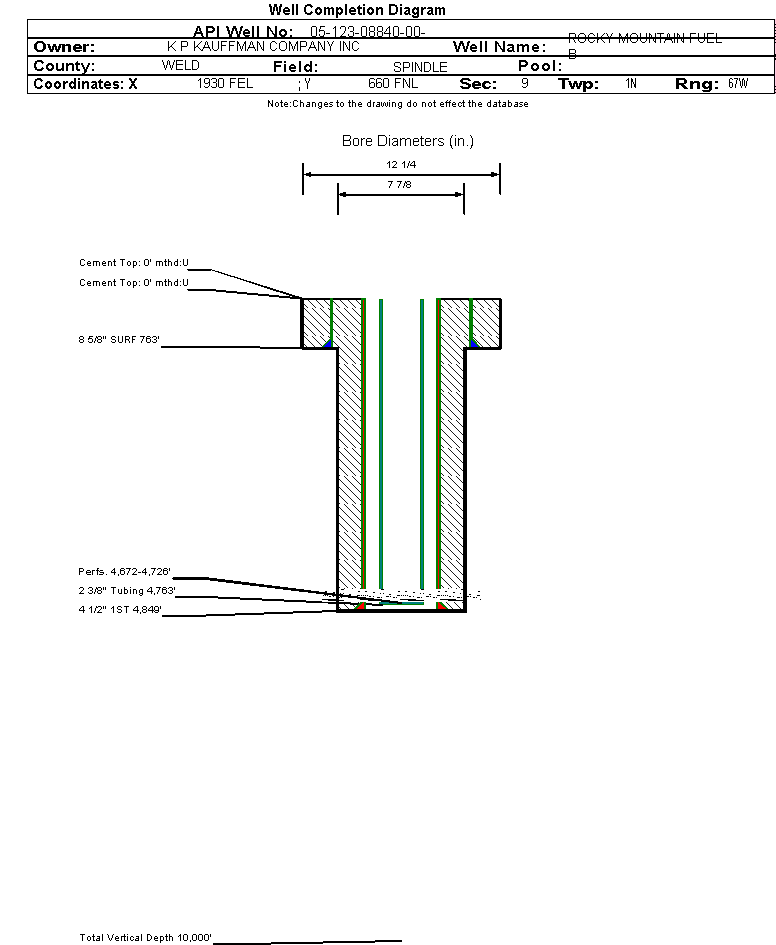

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 763 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4849 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE620 ft.NN
SUSSEX4658 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 3/20/1995                 Interval Top: 4672 ft.    Interval Bottom: 4726 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/30/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/1/1976
Treatment Summary:115,122 GALLONS 72,000# 20/40 SN 156,000# 10/20 SN
Tubing Size:2.375 in.Tubing Setting Depth:4763 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/1/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 117
GRAVITY_OIL 41.4
MCF_GAS 640
Perforation Data:
Interval Top:4672 ft.# Of Holes:
Interval Bottom:4726 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)55
Total Gas Produced (MCF)280
GOR5090
GOR DeterminationBOE
Average BOE per Day0.281
Average MCFE per Day1.635

 Federal Financial Assurance  i

 Tribal Well  i No
