COGIS - WELL SCOUT CARD

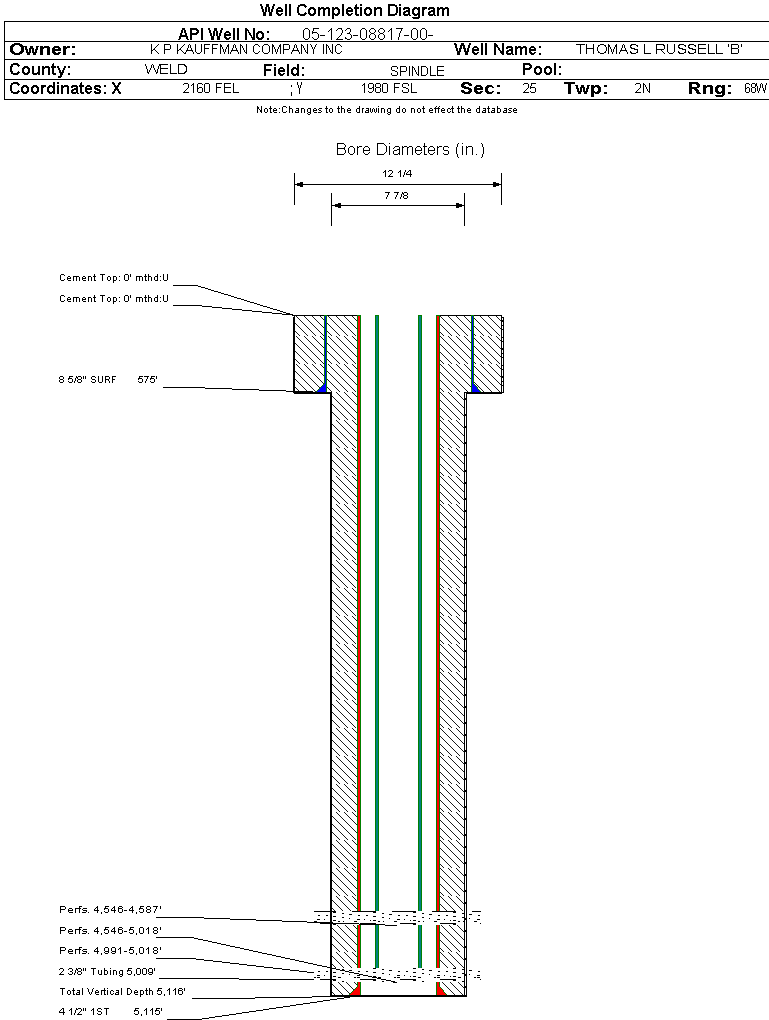

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08817		Well Classification: OW Status: SI - 5/1/2021
Well Name/No:THOMAS L RUSSELL 'B' #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2021
FacilityID:241029LocationID:318280
Municipality/County:FREDERICK / WELD #123Location:NWSE 25 2N68W 6
Field:SPINDLE - #77900Elevation:4983 ft.
Planned Location:1980FSL  2160 FELLat/Long: 40.107597 / -104.949925Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107788 / -104.949844Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 5/1/2021             Measured TD: 5116 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 5/1/2021
Wellbore Permit
Permit #:19760638 Expiration Date:11/22/1976
Proposed Depth/Form:5075 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:10/31/1976
Spud Date:6/16/1976Spud Date Is:ACTUAL
Measured TD:5116 ft.Measured PB depth:5063 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 575 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5115 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE450 ft.NN
SUSSEX4546 ft.NN
SHANNON4989 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 7/5/1976                  Interval Top: 4991 ft.    Interval Bottom: 5018 ft.

 Completed Information for Formation SHANNON
1st Production Date:7/5/1976Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/31/1976
Treatment Summary:121,500 GALS; 72,000# 20-40 SAND; 156,000# 10-20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/31/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 50
CALC_BBLS_H2O 3
CALC_BBLS_OIL 50
CALC_MCF_GAS 80
GRAVITY_OIL 43.7
MCF_GAS 80
Perforation Data:
Interval Top:4991 ft.# Of Holes:54
Interval Bottom:5018 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 7/5/1976                  Interval Top: 4546 ft.    Interval Bottom: 4587 ft.

 Completed Information for Formation SUSSEX
1st Production Date:7/5/1976Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/31/1976
Treatment Summary:121,000 GALS; 72,000# 20-40 SAND; 156,000# 10-20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/31/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 65
CALC_BBLS_H2O 5
CALC_BBLS_OIL 65
CALC_MCF_GAS 375
GRAVITY_OIL 45.8
MCF_GAS 375
Perforation Data:
Interval Top:4546 ft.# Of Holes:82
Interval Bottom:4587 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  SI - 5/1/2021                  Interval Top: 4546 ft.    Interval Bottom: 5018 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:7/5/1976Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:5009 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4546 ft.# Of Holes:136
Interval Bottom:5018 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2021
Low ProducingYProduction Period
06/2024 - 05/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
