COGIS - WELL SCOUT CARD

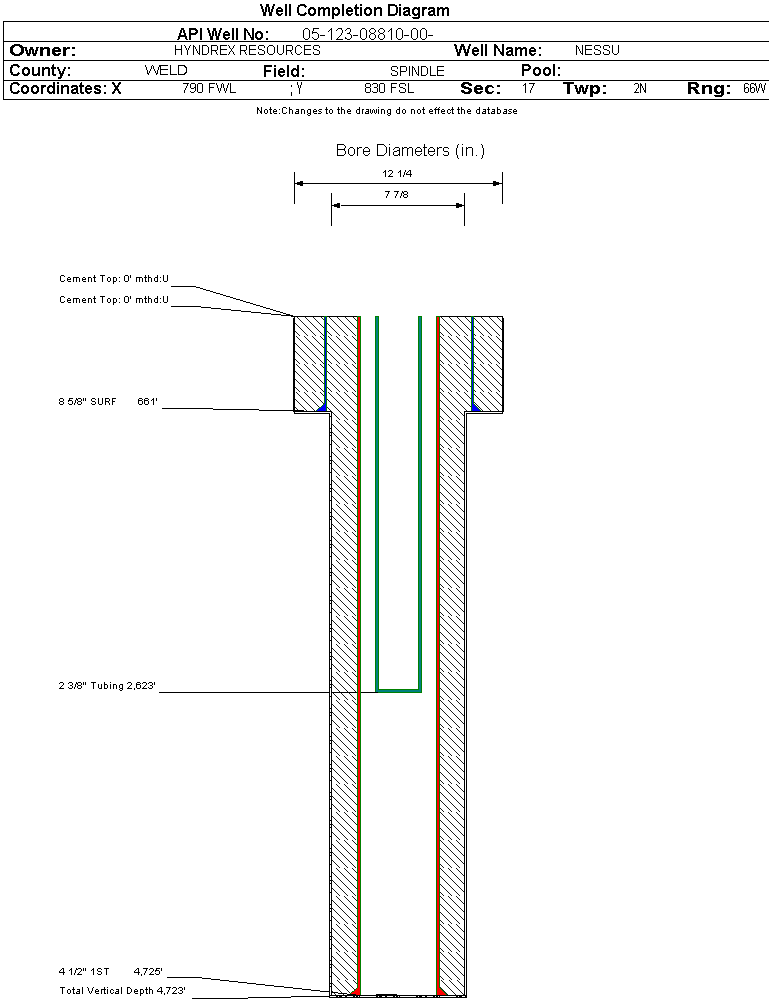

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08810		Well Classification: OW Status: SI - 5/1/2021
Well Name/No:NESSU #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2021
FacilityID:241022LocationID:318277
County:WELD #123Location:SWSW 17 2N66W 6
Field:SPINDLE - #77900Elevation:4870 ft.
Basin:DENVER (DJ) BASIN
Planned Location:830FSL  790 FWLLat/Long: 40.132957 / -104.807921Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.133160 / -104.807730Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 5/1/2021             Measured TD: 4723 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 5/1/2021
Wellbore Permit
Permit #:19760631 Expiration Date:7/14/1977
Proposed Depth/Form:4680 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 40, Drill Unit: SWSW
Wellbore Completed
Completion Date:10/2/1976
Spud Date:7/6/1976Spud Date Is:ACTUAL
Measured TD:4723 ft.Measured PB depth:4661 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 661 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4725 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE540 ft.
SUSSEX4568 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  SI - 5/1/2021                  Interval Top: 4568 ft.

 Completed Information for Formation SUSSEX
1st Production Date:7/22/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:2623 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/1/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 55
CALC_BBLS_H2O 5
CALC_BBLS_OIL 55
CALC_MCF_GAS 510
GRAVITY_OIL 44.6
MCF_GAS 510
No Perforation Data was found for formation SUSX.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2021
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
