Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 4813 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | | | Permit #: | 760612 | Expiration Date: | 11/21/1976 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: W2SE |
| | |

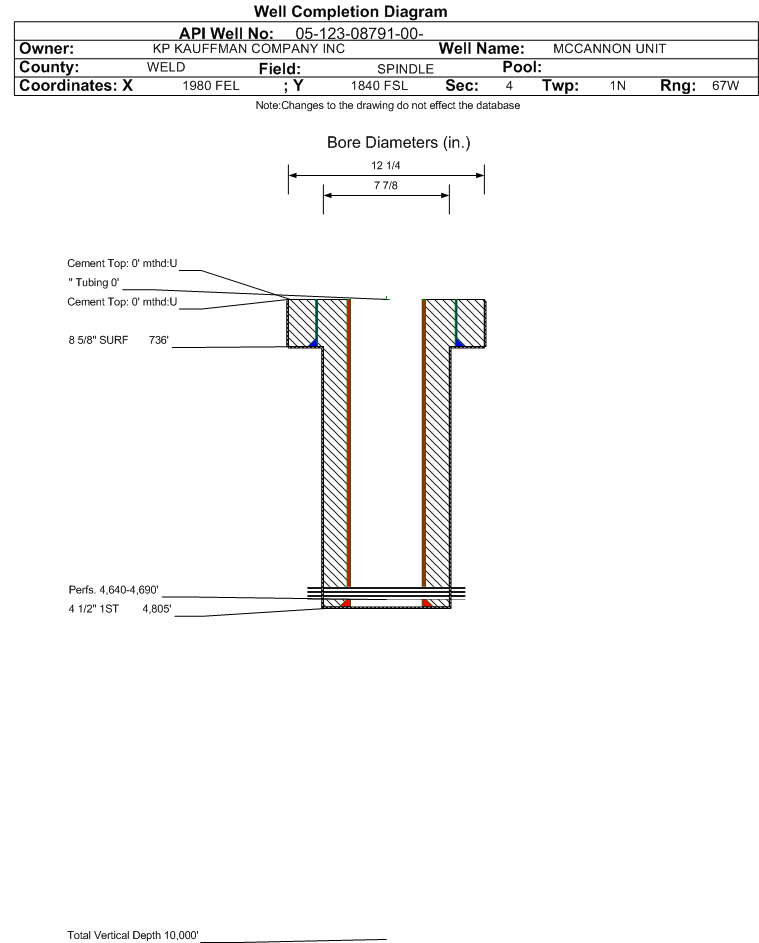

| Wellbore Completed | | Completion Date: | 8/25/1976 | | Measured TD: | 4813 ft. | Measured PB depth: | 4776 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 736 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 475, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4805 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS BASE | 685 ft. | | | | | SUSSEX | 4601 ft. | | | |
Formation SUSX Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 4640 ft. Interval Bottom: 4690 ft.| Completed Information for Formation SUSSEX | | 1st Production Date: | 8/11/1976 | Choke Size: | | | Formation Name: | SUSSEX | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 11/6/2015 | Treatment End Date: | 11/6/2015 | | Treatment Summary: | Two CIBPs set at 4560ft and 4670ft were drilled out and the well was brought back to production by installing a rod pump. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SUSX. |
| | Perforation Data: | | Interval Top: | 4640 ft. | # Of Holes: | 100 | | Interval Bottom: | 4690 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 151 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.071 |
| Average MCFE per Day | 0.411 |
| Federal Financial Assurance | i | |
|
|
