COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08702		Well Classification: GW Status: PR - 4/1/2025
Well Name/No:CARL A MILLER B #7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2025
FacilityID:240914LocationID:336068
County:WELD #123Location:NESW 5 1N67W 6
Field:SPINDLE - #77900Elevation:5050 ft.
Planned Location:1980FSL  1980 FWLLat/Long: 40.078187 / -104.917013Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.078270 / -104.916830Lat/Long Source: Field Measured

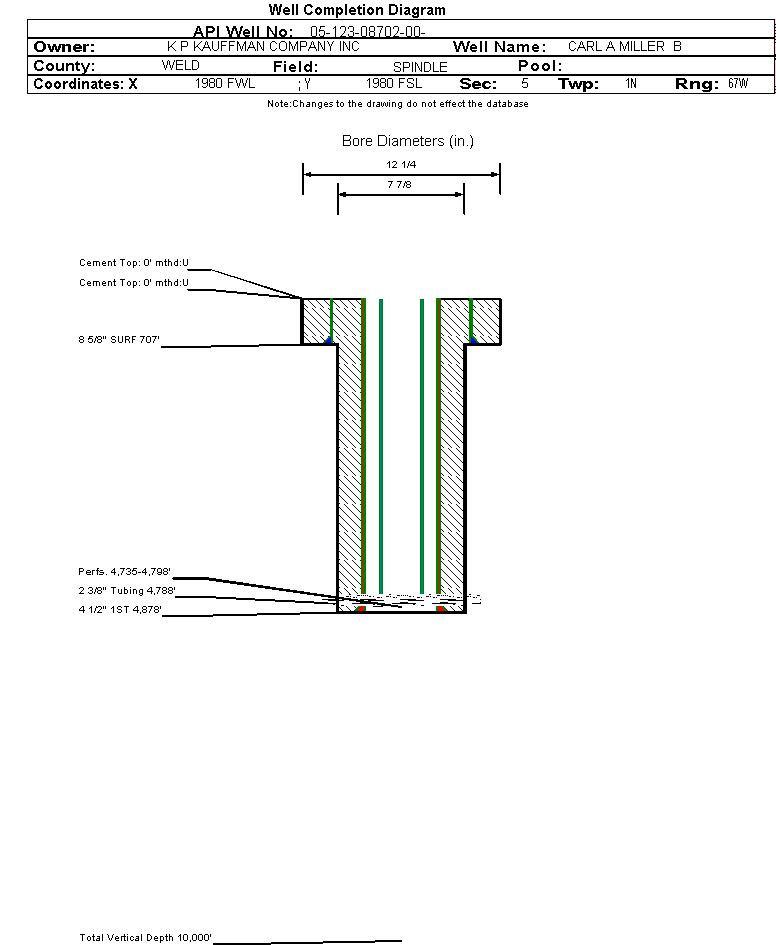

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2025             Measured TD: 4878 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2025
Wellbore Permit
Permit #:19760386 Expiration Date:9/20/1976
Proposed Depth/Form:4850 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2SW
Wellbore Completed
Completion Date:6/29/1976
Spud Date:5/22/1976Spud Date Is:ACTUAL
Measured TD:4878 ft.Measured PB depth:4845 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 707 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4878 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE657 ft.NN
SUSSEX4733 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 4/1/2025                  Interval Top: 4735 ft.    Interval Bottom: 4798 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/17/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/29/1976
Treatment Summary:112,140 GALLONS 72,000# 20/40 SAND 156,000# 10/20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4788 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/28/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 102
MCF_GAS 327
Perforation Data:
Interval Top:4735 ft.# Of Holes:
Interval Bottom:4798 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)157
GOR39250
GOR DeterminationMCFE
Average BOE per Day0.085
Average MCFE per Day0.491

 Federal Financial Assurance  i

 Tribal Well  i No
