COGIS - WELL SCOUT CARD

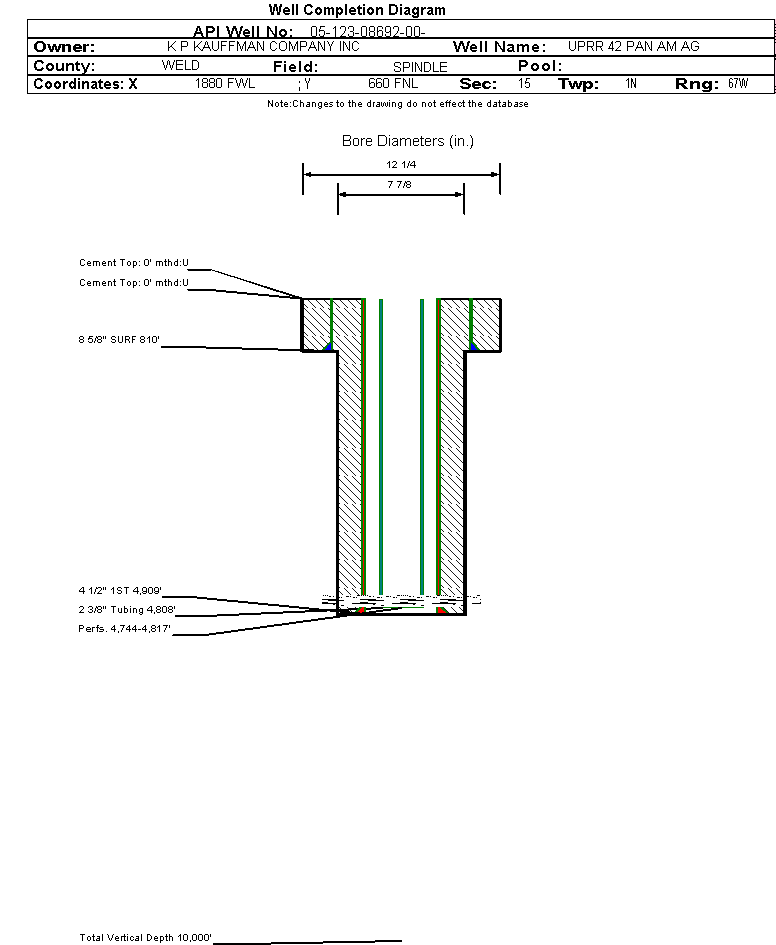

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08692		Well Classification: GW Status: PR - 3/20/1995
Well Name/No:UPRR 42 PAN AM AG #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/20/1995
FacilityID:240904LocationID:311304
County:WELD #123Location:NENW 15 1N67W 6
Field:SPINDLE - #77900Elevation:5062 ft.
Planned Location:660FNL  1880 FWLLat/Long: 40.056358 / -104.879652Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.056440 / -104.879760Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/20/1995             Measured TD: 4910 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/20/1995
Wellbore PermitDRIFTED
Permit #:19760363 Expiration Date:9/12/1976
Proposed Depth/Form:4875 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: E2NW
Wellbore Completed
Completion Date:6/25/1976
Spud Date:5/10/1976Spud Date Is:ACTUAL
Measured TD:4910 ft.Measured PB depth:4880 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 810 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4909 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE760 ft.NN
SUSSEX4741 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 3/20/1995                 Interval Top: 4744 ft.    Interval Bottom: 4817 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/8/1976Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/25/1976
Treatment Summary:118,356 GALLONS 72,000# 20/40 SAND 156,000# 10/20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4808 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/24/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 60
GRAVITY_OIL 46.2
MCF_GAS 464
Perforation Data:
Interval Top:4744 ft.# Of Holes:
Interval Bottom:4817 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)56
Total Gas Produced (MCF)437
GOR7803
GOR DeterminationBOE
Average BOE per Day0.356
Average MCFE per Day2.073

 Federal Financial Assurance  i

 Tribal Well  i No
