COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08626		Well Classification: OW Status: PR - 8/1/2023
Well Name/No:JACK A MLEYNEK #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2023
FacilityID:240838LocationID:318192
Municipality/County:FREDERICK / WELD #123Location:NESE 28 2N68W 6
Field:SPINDLE - #77900Elevation:5004 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  700 FELLat/Long: 40.107767 / -105.001386Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107654 / -105.001315Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/1/2023             Measured TD: 5115 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/1/2023
Wellbore Permit
Permit #:19760125 Expiration Date:6/26/1976
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:5/27/1976
Spud Date:3/30/1976Spud Date Is:ACTUAL
Measured TD:5115 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER LOG

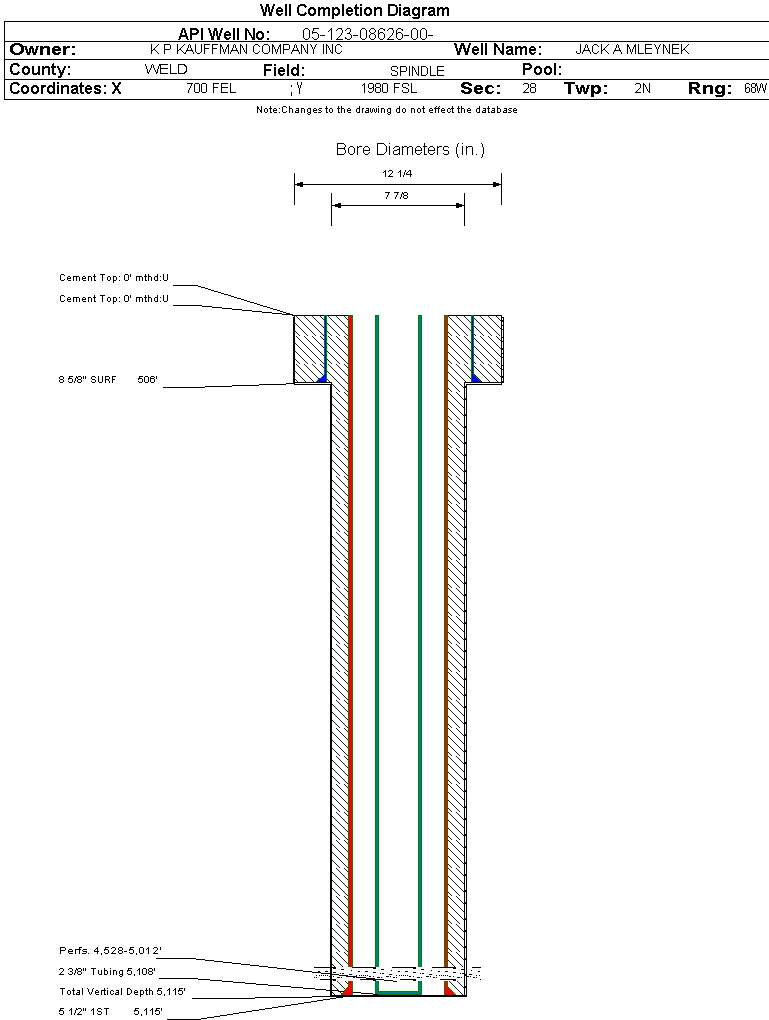

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 506 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5115 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE456 ft.NN
SUSSEX4522 ft.NN

Formation SX-SN                   Formation Classification:  OW                   Status:  PR - 8/1/2023                  Interval Top: 4528 ft.    Interval Bottom: 5012 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:5/1/1976Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:5/27/1976
Treatment Summary:4528'-4540' (SUSX): 12,000 GALS PAD; 72,000# 20-40 SAND; 156,000# 10-20 SAND. 4550'-4570' (SNSD): 12,000 GALS PAD; 72,000# 20-40 SAND; 146,000# 10-20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5108 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 69
CALC_BBLS_H2O 5
CALC_BBLS_OIL 69
CALC_MCF_GAS 286
GRAVITY_OIL 44.5
MCF_GAS 286
Perforation Data:
Interval Top:4528 ft.# Of Holes:96
Interval Bottom:5012 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)239
Total Gas Produced (MCF)1301
GOR5443
GOR DeterminationBOE
Average BOE per Day1.266
Average MCFE per Day7.342

 Federal Financial Assurance  i

 Tribal Well  i No
