COGIS - WELL SCOUT CARD

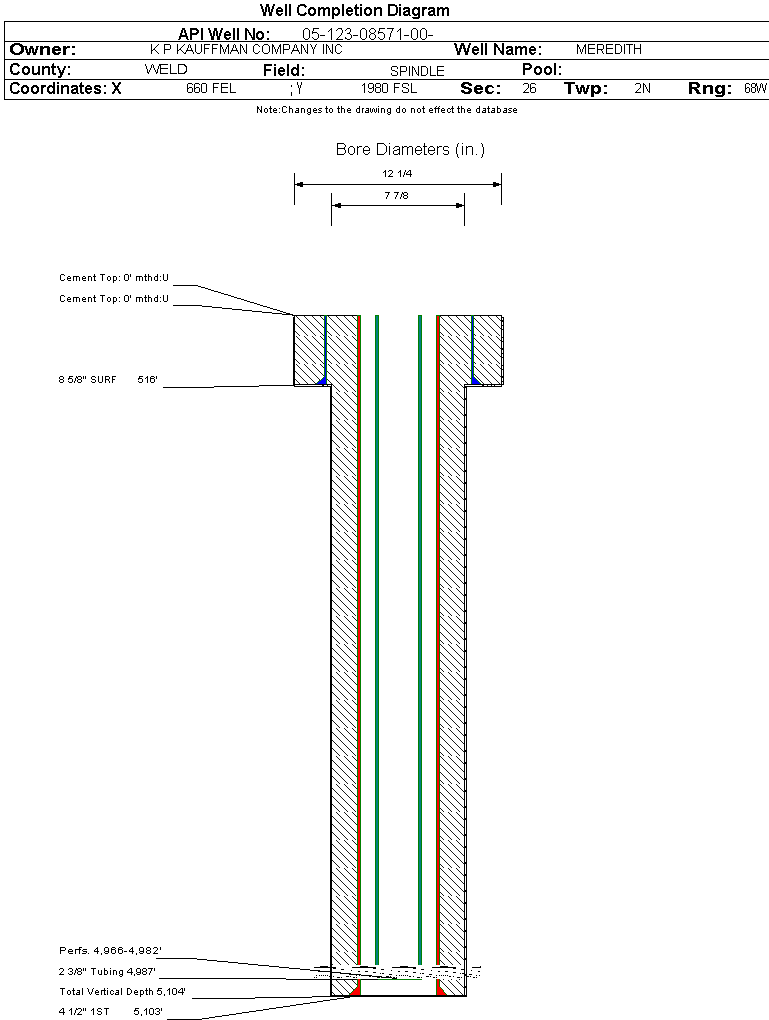

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08571		Well Classification: GW Status: PR - 6/1/2023
Well Name/No:MEREDITH #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2023
FacilityID:240783LocationID:333126
Municipality/County:FREDERICK / WELD #123Location:NESE 26 2N68W 6
Field:SPINDLE - #77900Elevation:4966 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 40.107627 / -104.963445Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107721 / -104.963267Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/1/2023             Measured TD: 5104 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/1/2023
Wellbore Permit
Permit #:19751003 Expiration Date:3/21/1976
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:3/7/1976
Spud Date:11/25/1975Spud Date Is:ACTUAL
Measured TD:5104 ft.Measured PB depth:5040 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES & FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 516 ft., Weight: 28 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5103 ft., Weight: 11.6,10.5, Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE270 ft.NN
SUSSEX4540 ft.NN
SHANNON4958 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  PR - 6/1/2023                  Interval Top: 4966 ft.    Interval Bottom: 4982 ft.

 Completed Information for Formation SHANNON
1st Production Date:3/10/1976Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:3/7/1976
Treatment Summary:500 GALS ACID, 74,400 GALS HLX GELLED WATER, 19,800# 20-40, 129,500# 10-20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4987 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/19/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0.1
BBLS_OIL 108
CALC_BBLS_H2O 0.1
CALC_BBLS_OIL 108
CALC_GOR 2241
CALC_MCF_GAS 242
MCF_GAS 242
Perforation Data:
Interval Top:4966 ft.# Of Holes:17
Interval Bottom:4982 ft.Hole Size:0.4 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
09/2024 - 08/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)190
Total Gas Produced (MCF)521
GOR2742
GOR DeterminationBOE
Average BOE per Day0.741
Average MCFE per Day4.297

 Federal Financial Assurance  i

 Tribal Well  i No
